Grove RT530E Rough Terrain Crane
No longer available

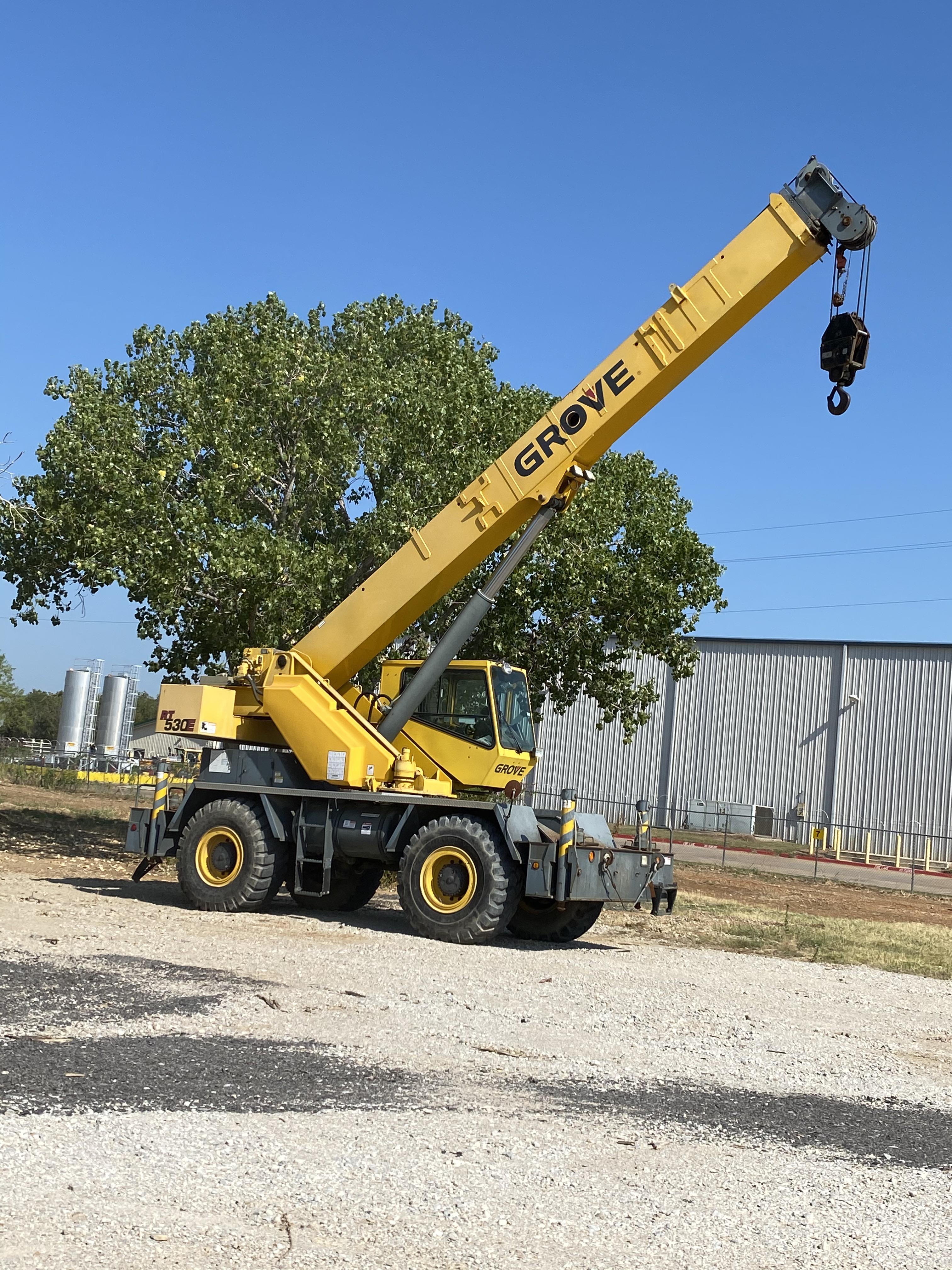

Grove RT530E Rough Terrain Crane
Location:Euless, TX
Description
Grove 30 Ton RT530E Rough Terrain Crane
Boom
Dimensions
30 ton (30 mt) capacity
29-95 ft. (8.8-29 m) 4-section full power boom
26-45 ft. (7.9-13.7 m) telescopic swingaway extension
Max main boom tip height of 102.5 ft. (31.2 m)
“E” Series cab
Max overall tip height 146 ft. (44.5 m)
One double-acting telescoping cylinder
3 position outriggers, max spread 20 ft. (6.1 m)
Cummins QSB 5.9L diesel, 6 cyl., turbocharged engine
Grove RT 530E Product Guide
Specifications
| Manufacturer | Grove |
| Model | RT530E |
| Condition | Used |
| Stock Number | 11920216 |
| Min height @ max raise angle | 29ft in |
| Max height @ max raise angle - no jib | 95ft in |
| Min operating radius | 10ft in |
| Max elevating angle | 76 degrees |
| Max operating radius | 85ft in |
| Number of sections | 4 |
| Max lift capacity | 60,000 lbs |
| Swing speed | 2.8 rpm |
| Transport length | 35.12ft in |
| Transport width | 8.5 ft in |
| Transport height | 11.7 ft in |
| Wheelbase | 11.09 in |
| Ground clearance | 0.02 ft in |
| Width w/ outriggers extended | 20 ft in |
| Carrier/base length | 22.53 ft in |
| Upper structure tail swing radius | 11.2 ft in |
