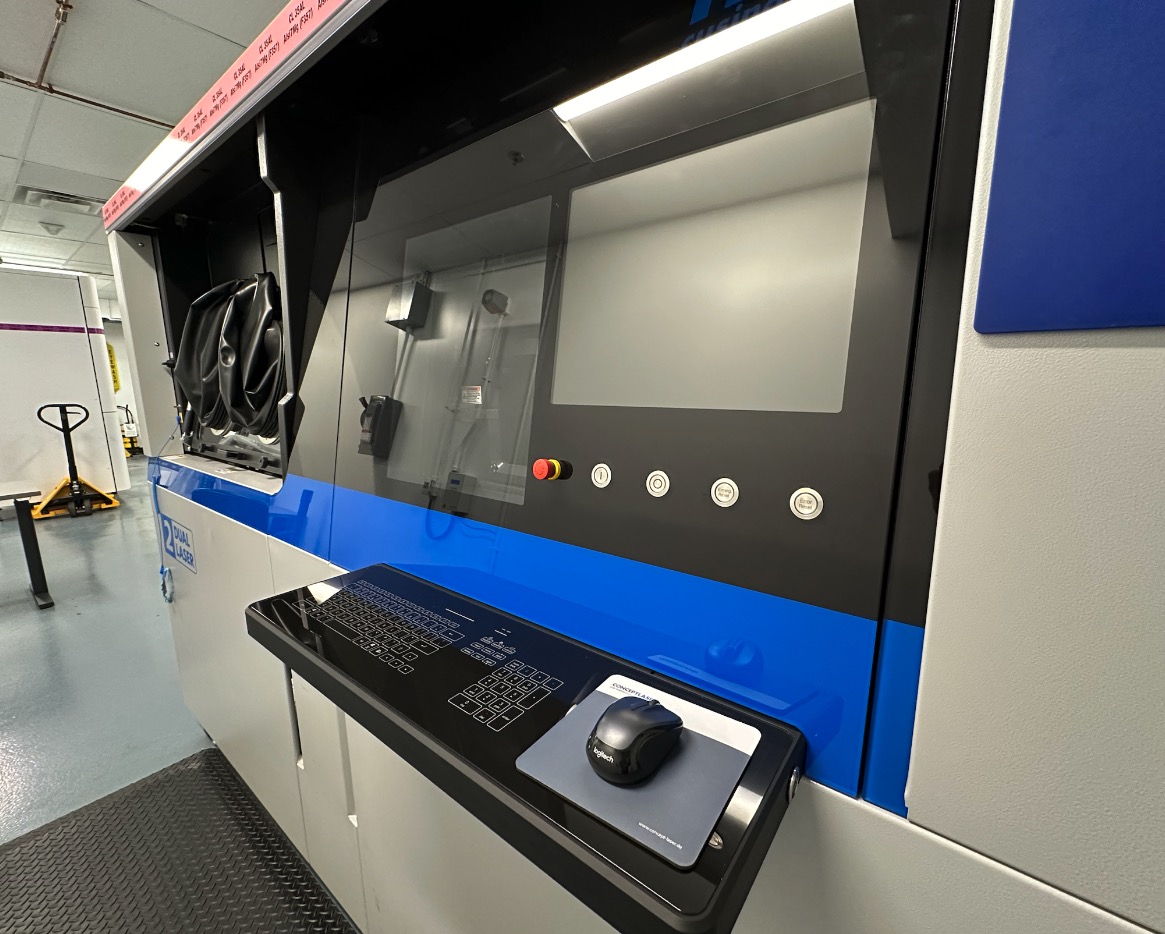

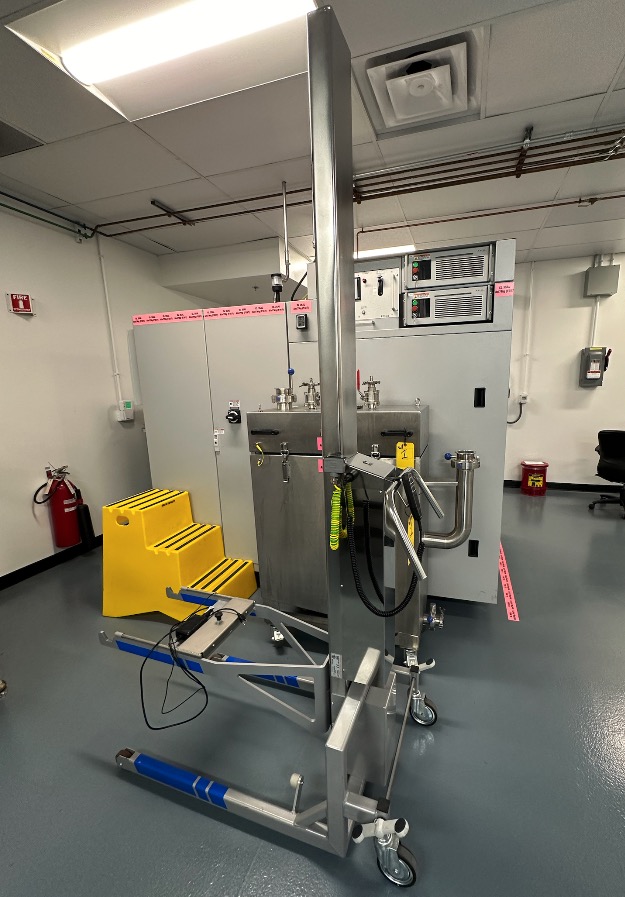

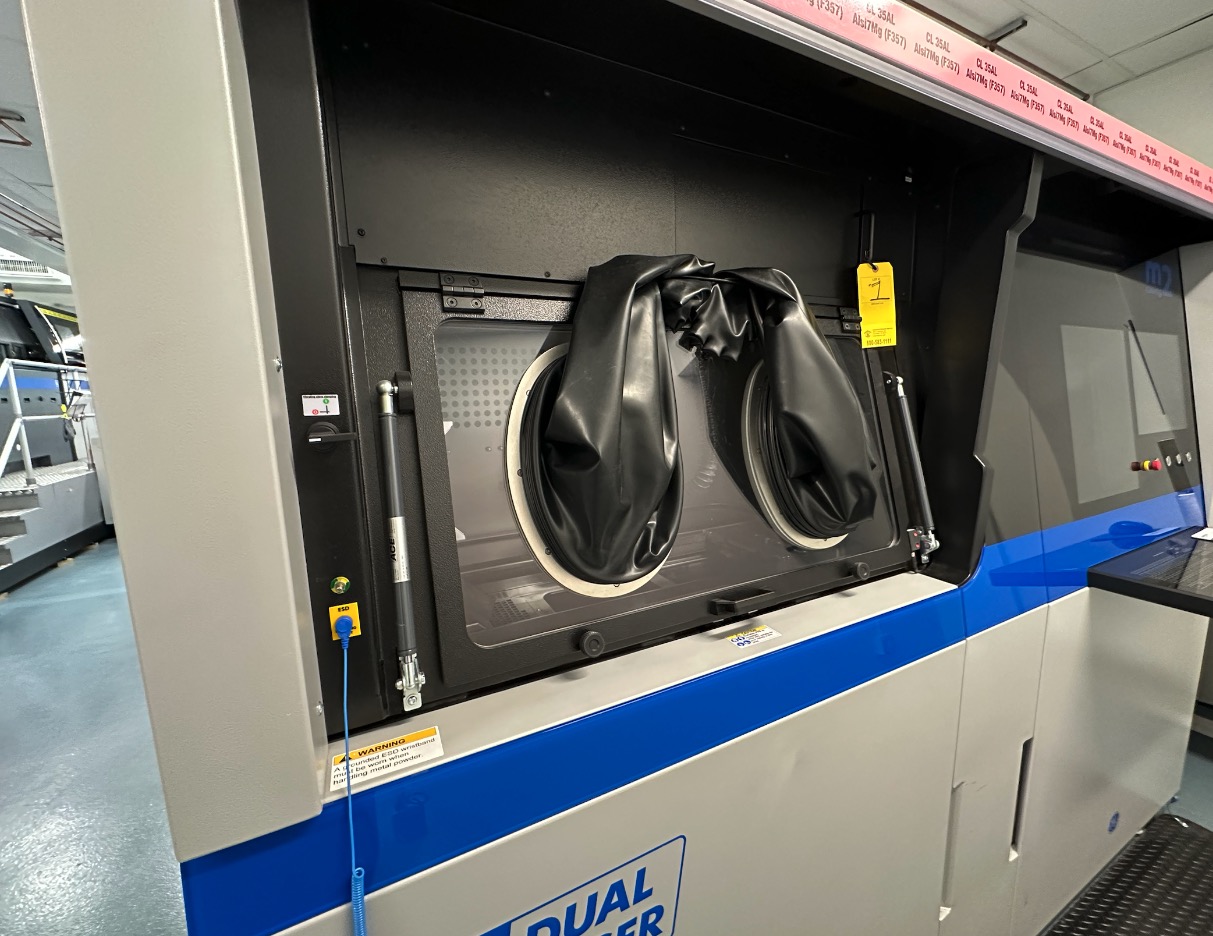

2020 GE Additive | Concept Laser M2-UP1 Cusing DL 400W Dual Fibre Laser DMLM Machine + Turn Key w/ Accessories

2020 GE Additive | Concept Laser M2-UP1 Cusing DL 400W Dual Fibre Laser DMLM Machine + Turn Key w/ Accessories

Contact us for price

Location:Dallas, TX

orCall 817-766-6674

Description

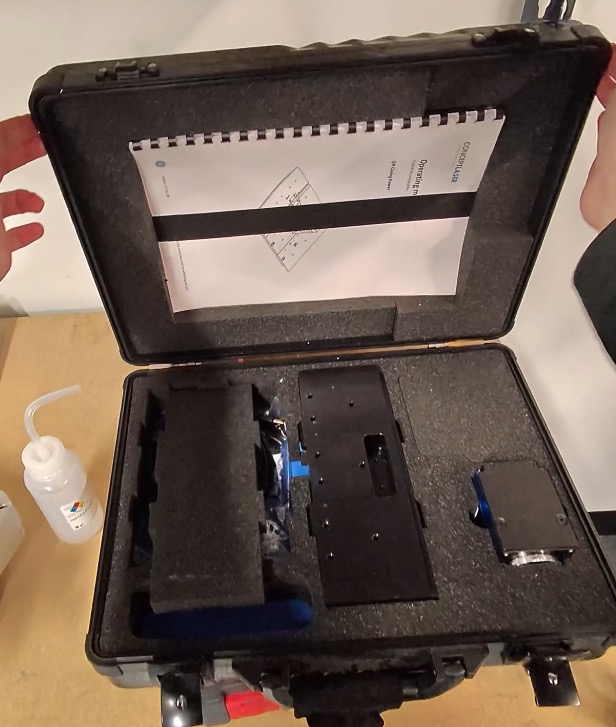

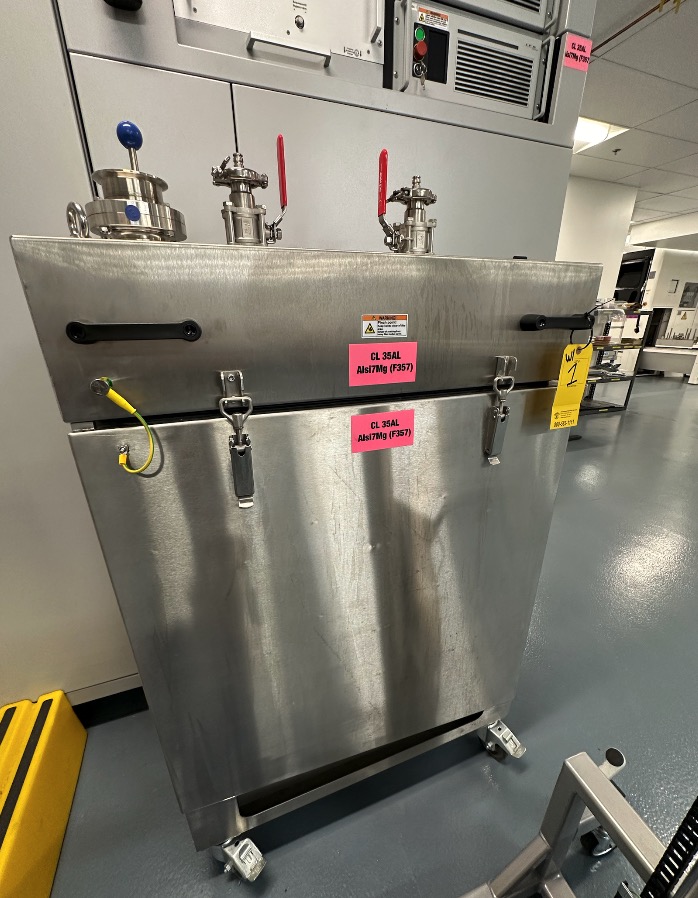

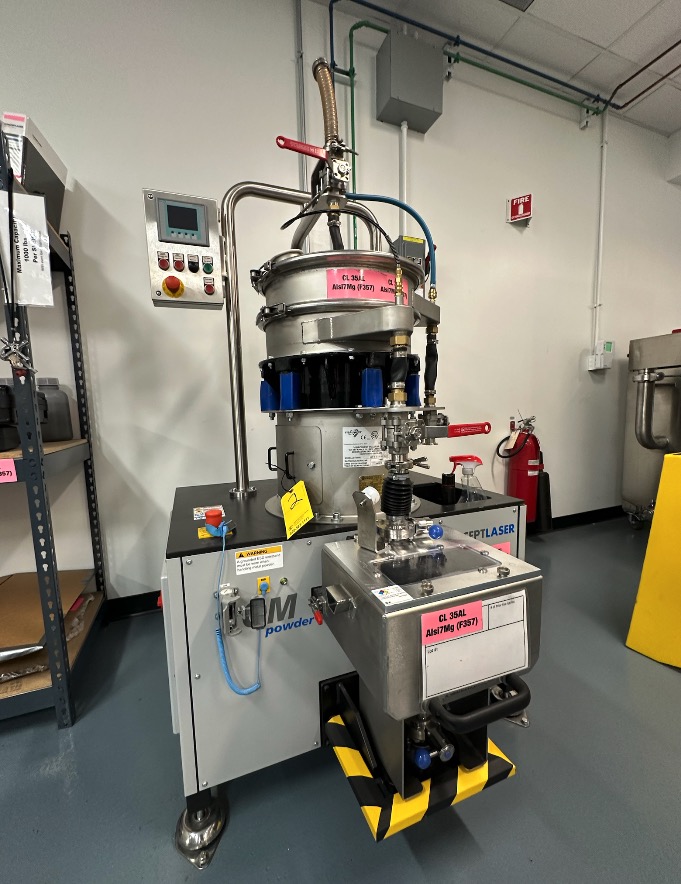

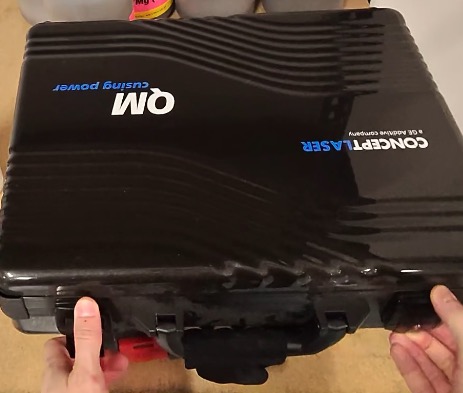

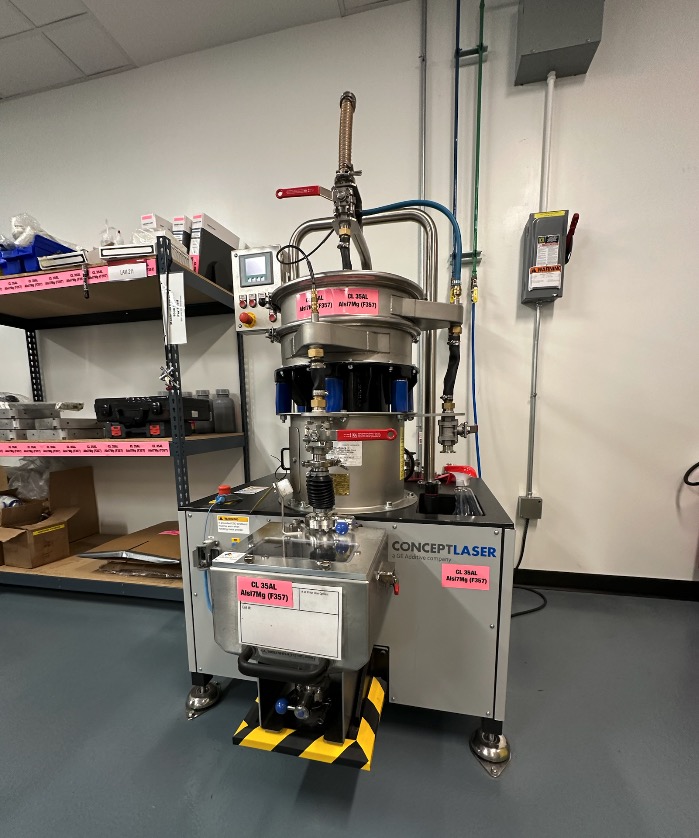

2020 Concept Laser M2 UP1-Dual Laser 400 Watt Laser DMLM System w/ QM Powder Automated Sieve Station & QM Cusing Power Module & MORE!


CURRENTLY UNDER POWER

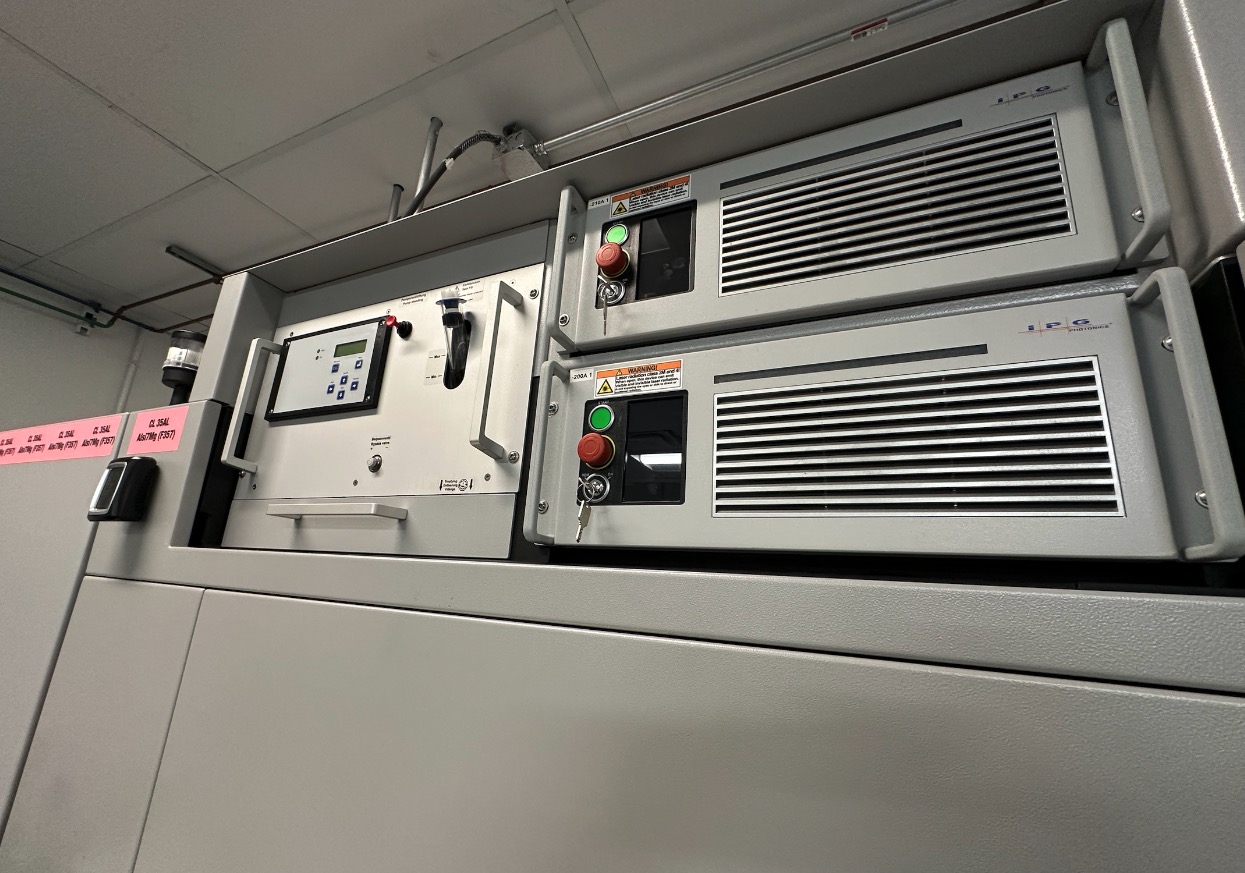

Diode-pumped Yb Fiber Laser - 2 x 400 W

Scanning System - Digital 3-axis dynamic scanning system | Scanner control card Raylase SCANLAB RTC. 5

Scan Head - 2 x SCANLAB intelliSCAN. 30

Scan Speed Max - 4.5 m/s with variable focus adjustment

Varioscan - 1 x SCANLAB varioscan.40i

Focus Diameter - 50 μm - 500 μm (typical melting gauge 70 – 150 μm) | Highly dynamic and extremely precise positioning of the laser focus

Dimensions (W x D x H) - 2695 mm x 1818 mm x 2185 mm

Weight Approx. - 2500 kg

Building Chamber (x, y, z) - 250 mm x 250 mm x 350 mm

Voltage 3/N/PE AC 400V +/-10%, 50 Hz, 32 A-CEE socket

Power Consumption Max 9 kW

Pressure Air - Inlet pressure 6 - 10 bar, purity class 7.4.4. (ISO 8573-1)

Inert Gas - Nitrogen or Argon (consumption <1 - 1.5 m. / h) Argon for production of reactive material

Recommended Ambient Temperature : 18 - 25°C

Maximum Temperature Change : 2°C/H

Recoater Traveling speed max. - 400 mm/s (adjustable)

Z-Axis Traveling speed - 7 mm/s (adjustable)

Positioning Accuracy Z-Axis : +/- 0.1mm

Repeat Accuracy Z-Axis : +/- 3-5 μm, smallest step +/- 1μm


Brochure from Manufacturer GE Additive

Specifications

ManufacturerGE Additive | Concept Laser
ModelM2-UP1 Cusing DL 400W Dual Fibre Laser DMLM Machine + Turn Key w/ Accessories
Year2020
ConditionUsed
Serial NumberM2-9000002
