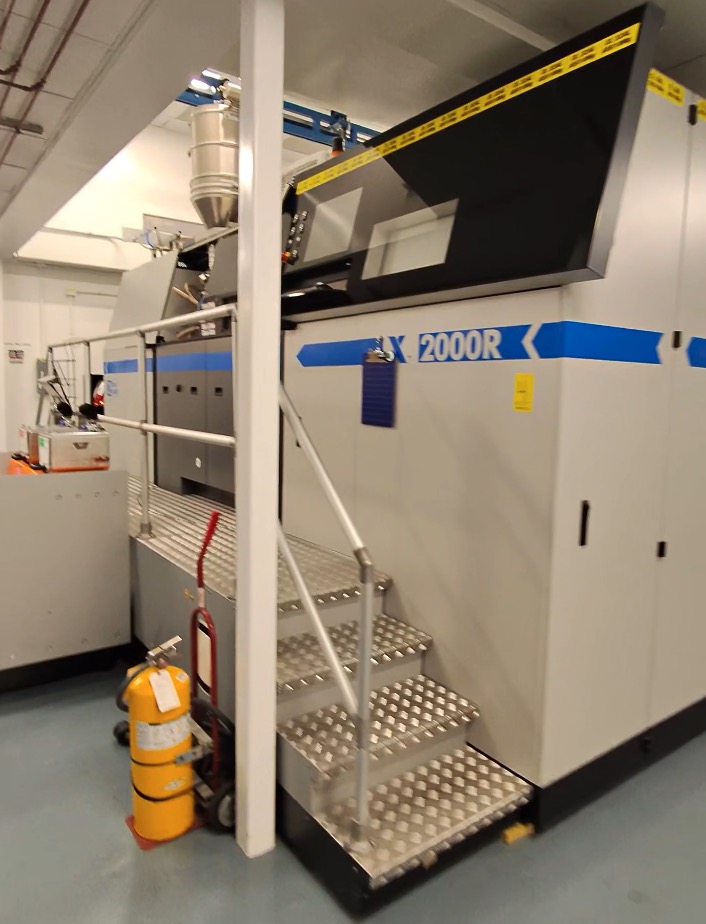

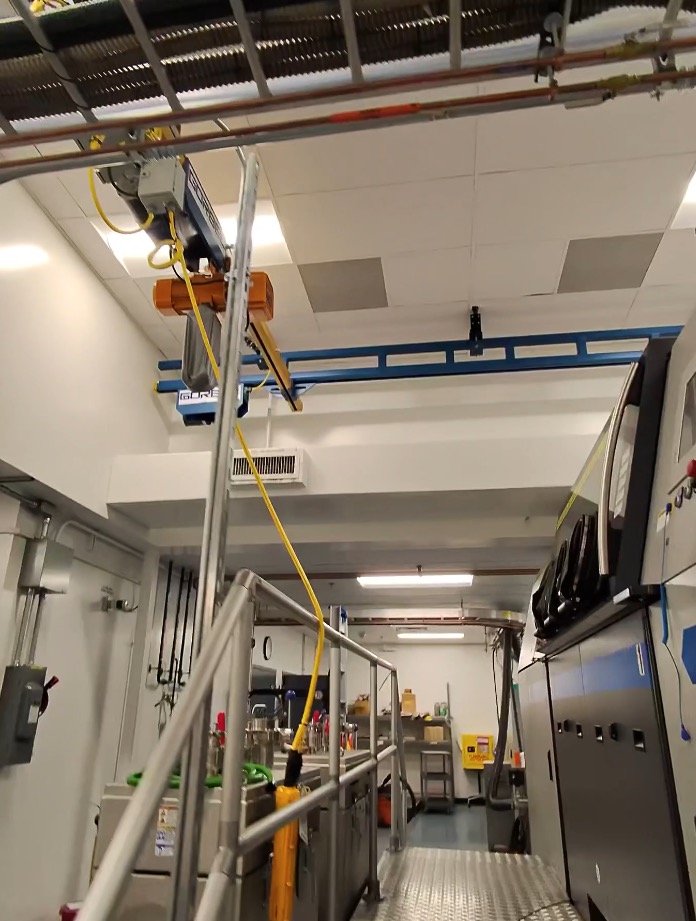

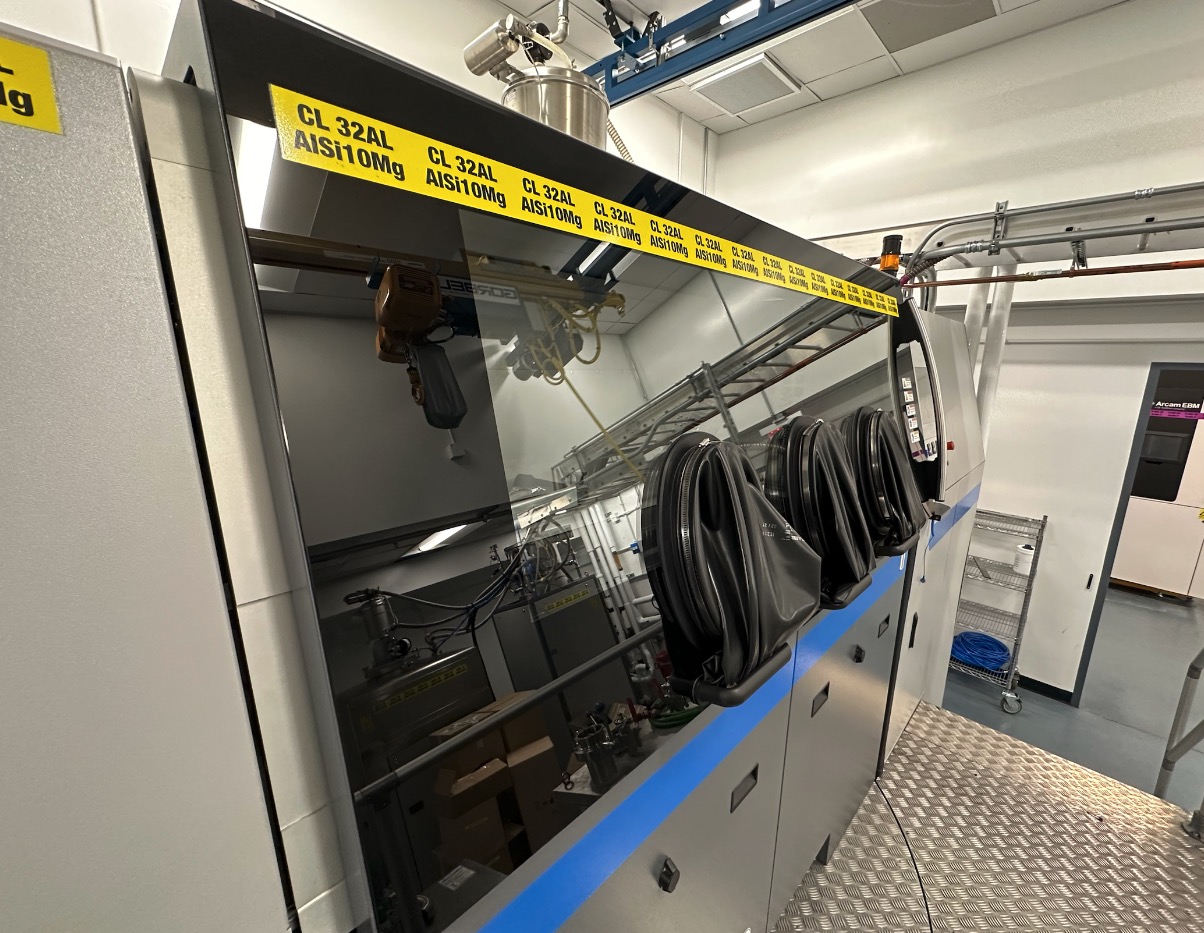

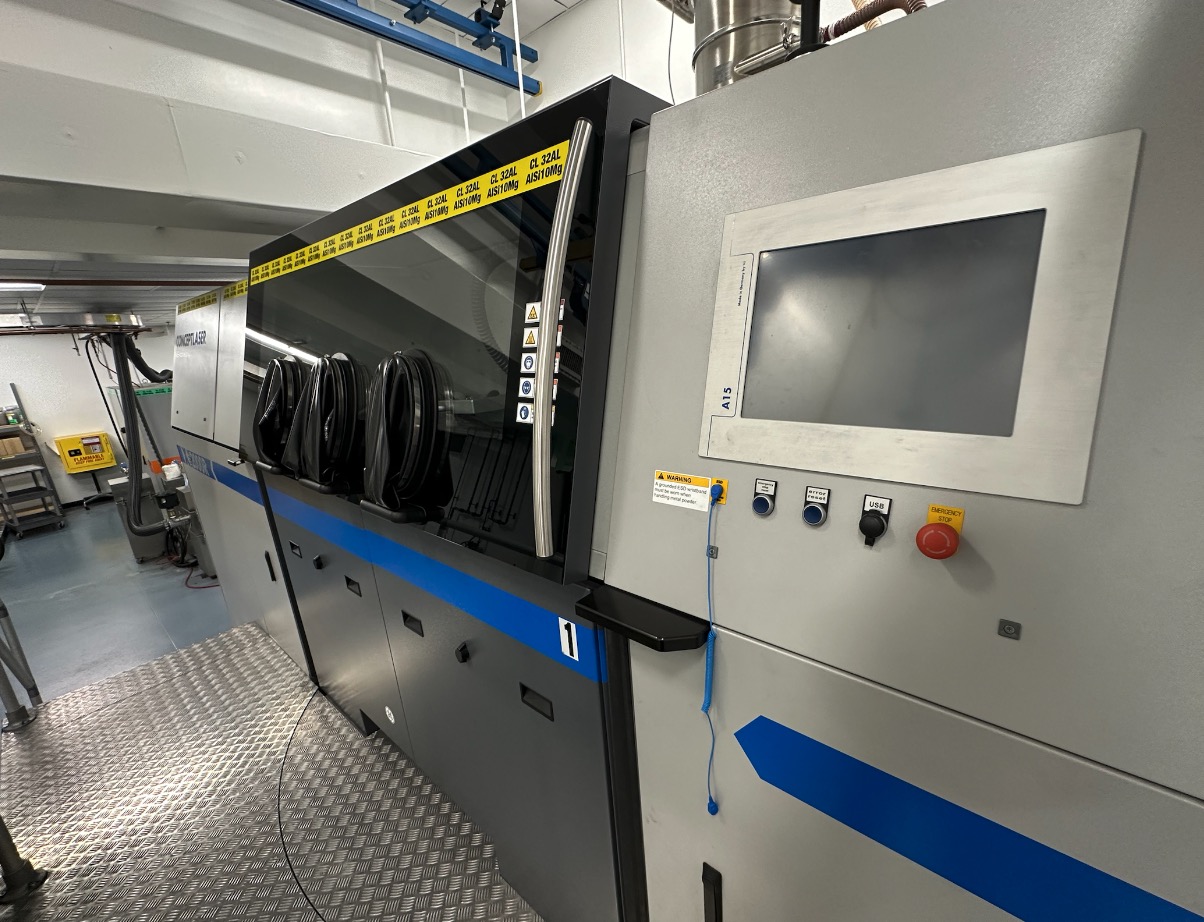

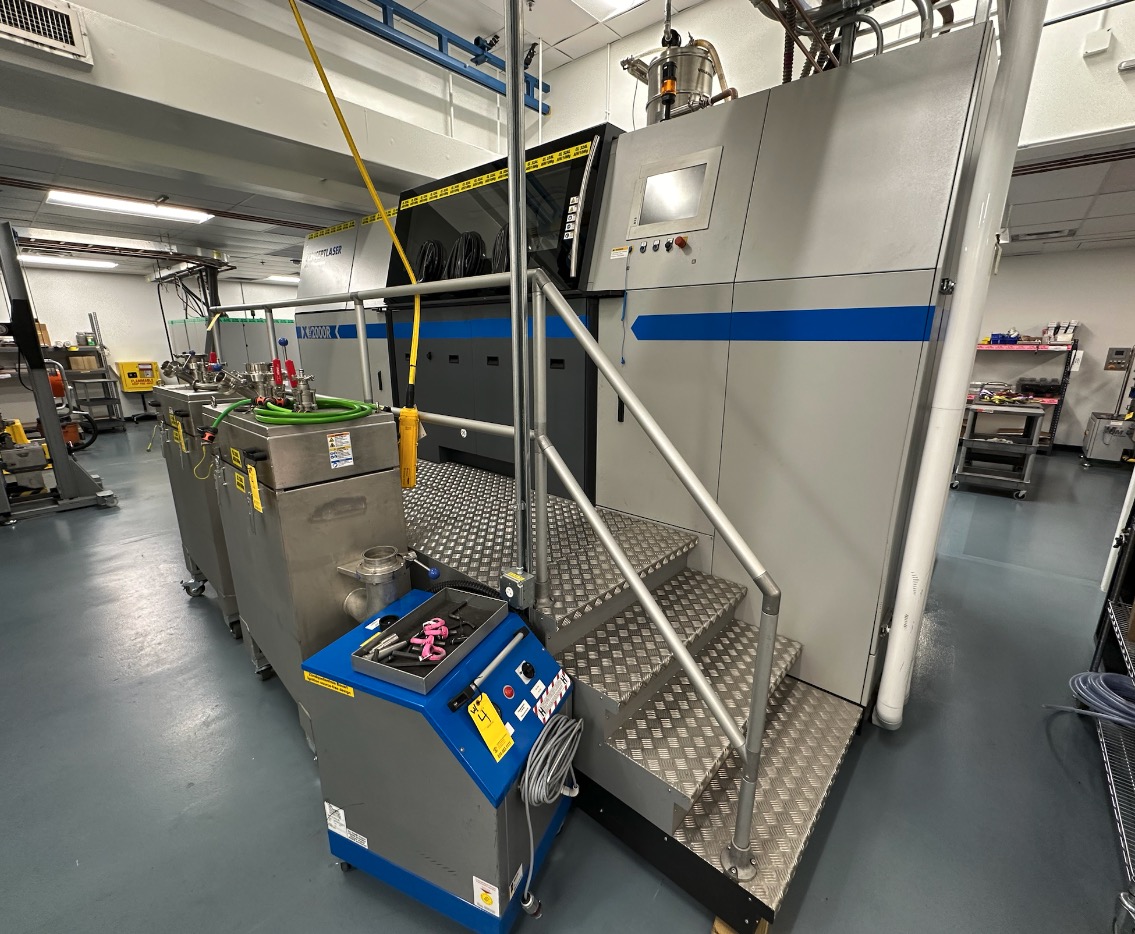

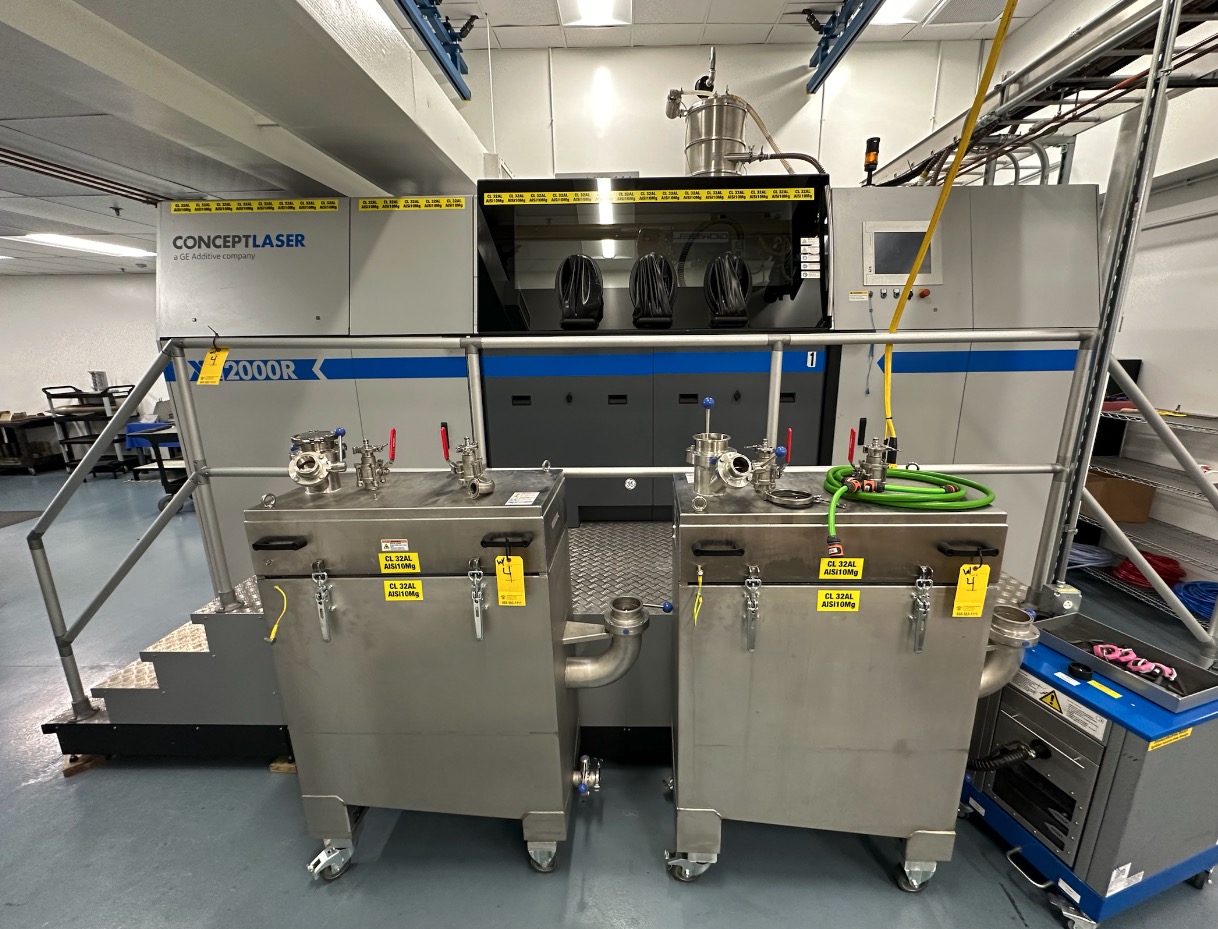

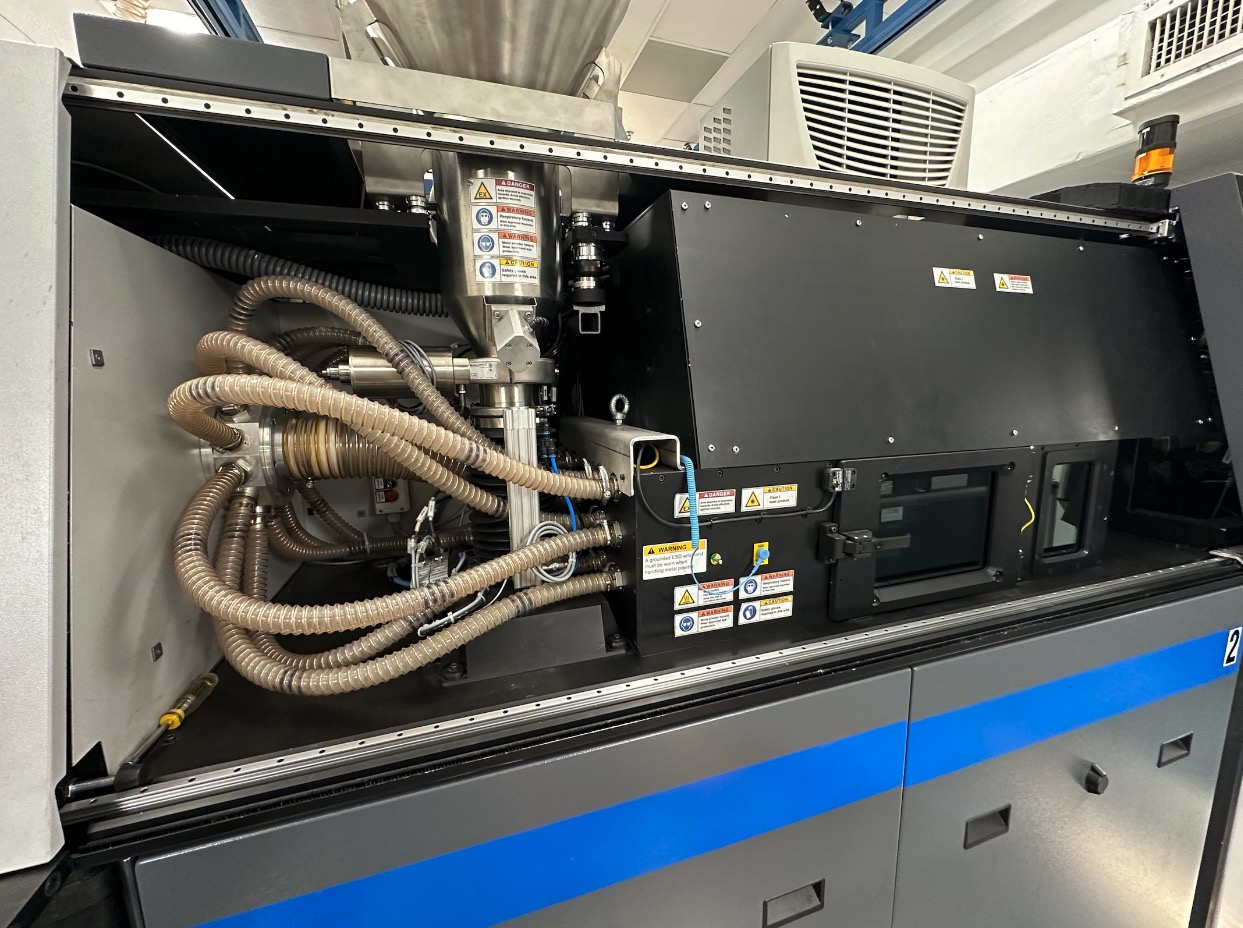

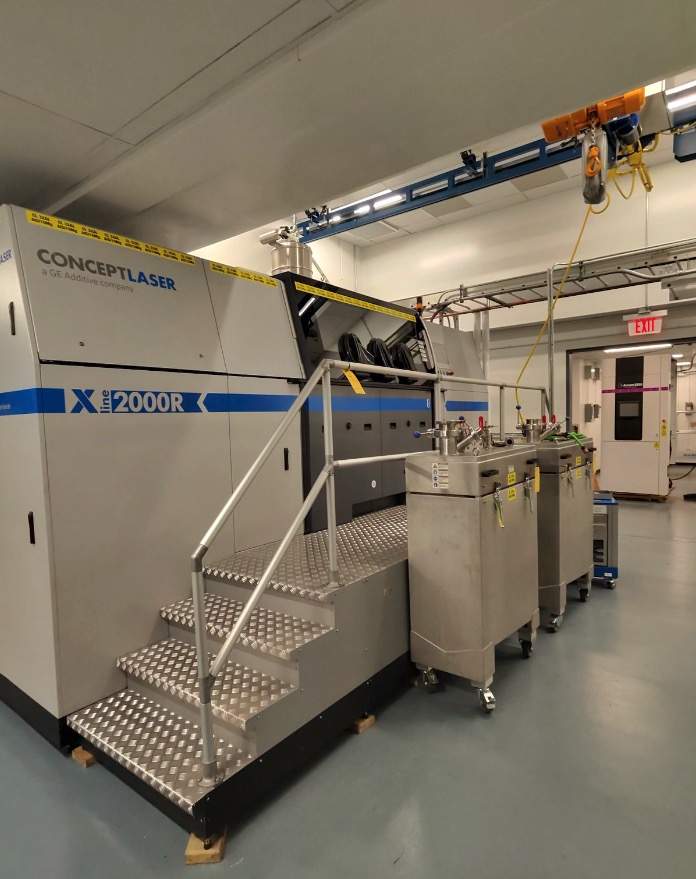

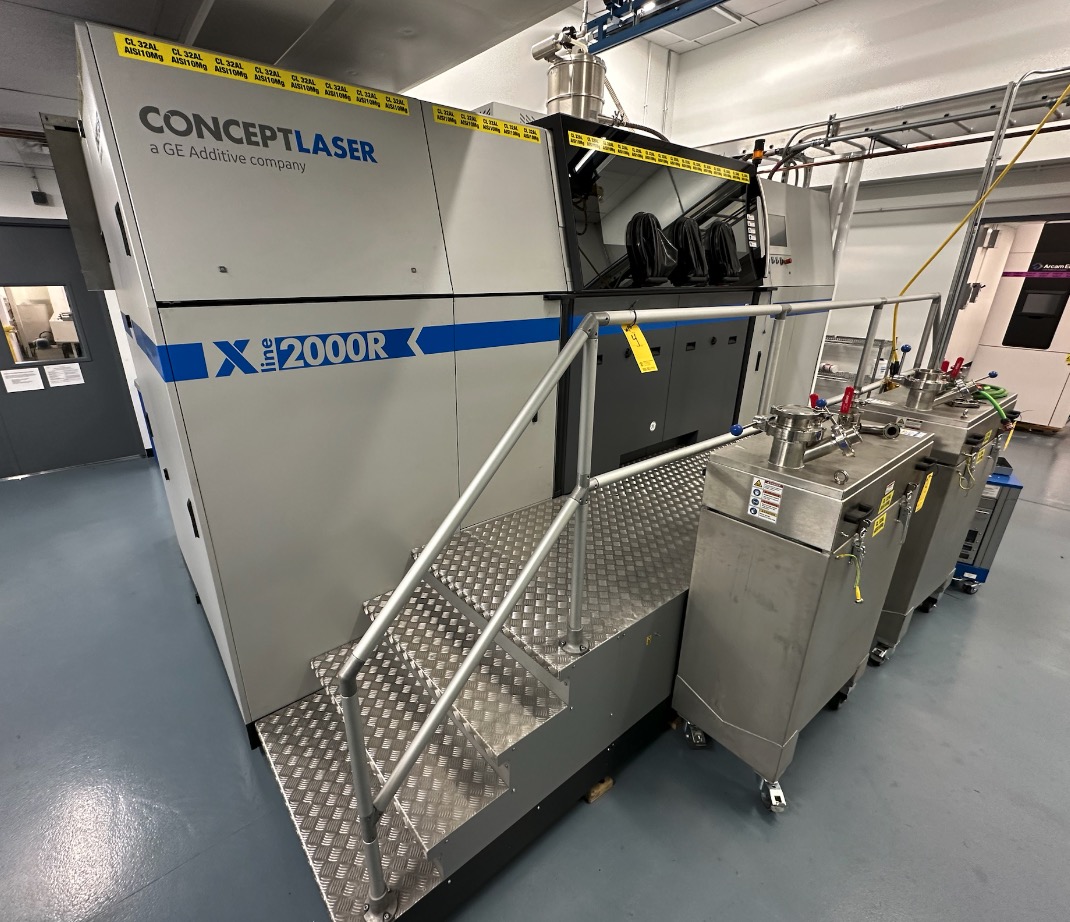

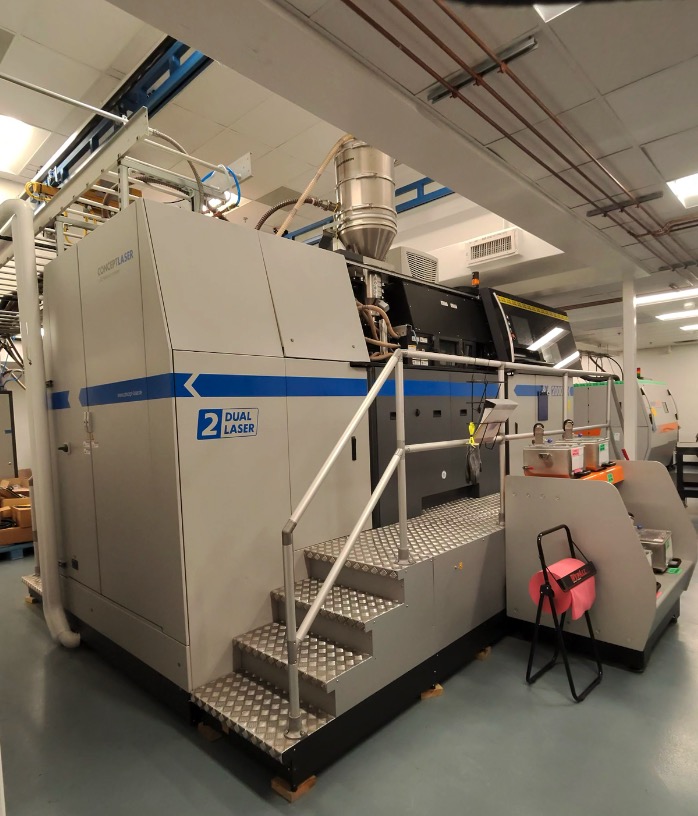

2018 GE Additive | Concept Laser X Line 2000R Dual Fiber Laser 1000W DMLM 3D Additive Manufacturing Machine w/ Sieving Station, Powder Silo & Parts Gantry System in Dallas, Texas

Currently Under Power in Dallas, TX

Build envelope : 800 x 400 x 500 mm (x, y, z)

Layer thickness : 30 – 150 µm

Production speed : up to 120 cm3/h (depending on material, parameter, geometry)

Laser system : 2 fiber lasers, each 1,000 W (cw)

Max. scanning speed : 7 m/s

Focus diameter : approx. 100 – 500 µm

Heating : 9 kW, maximum temperature 200°C

Connected loads : Average power consumption 13 kW Power connection 3/N/PE AC 400 V, 50 A, 50 – 60 Hz

Inert gas supply : 1 gas connection available

Inert gas consumption : approx. 17 – 34 l/min *

Dimensions : 5,235 x 3,655 x 3,604 mm (B x H x T)

Weight : approx. 9,500 kg (tare weight)

Operating conditions : 15 – 25°C

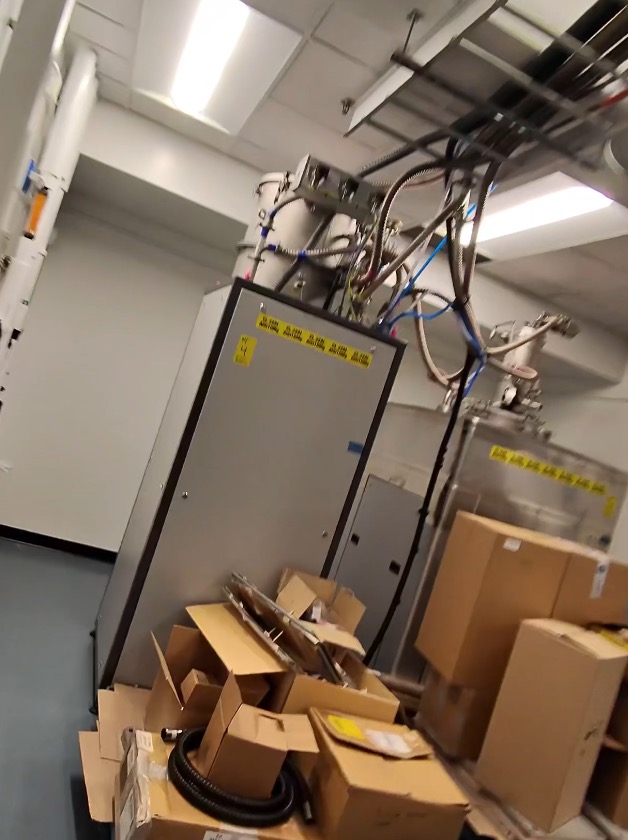

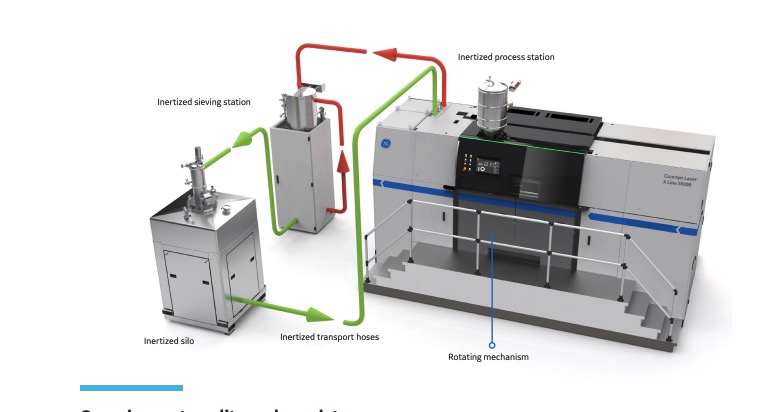

Necessary peripheral equip. : Sieving station, powder silo
