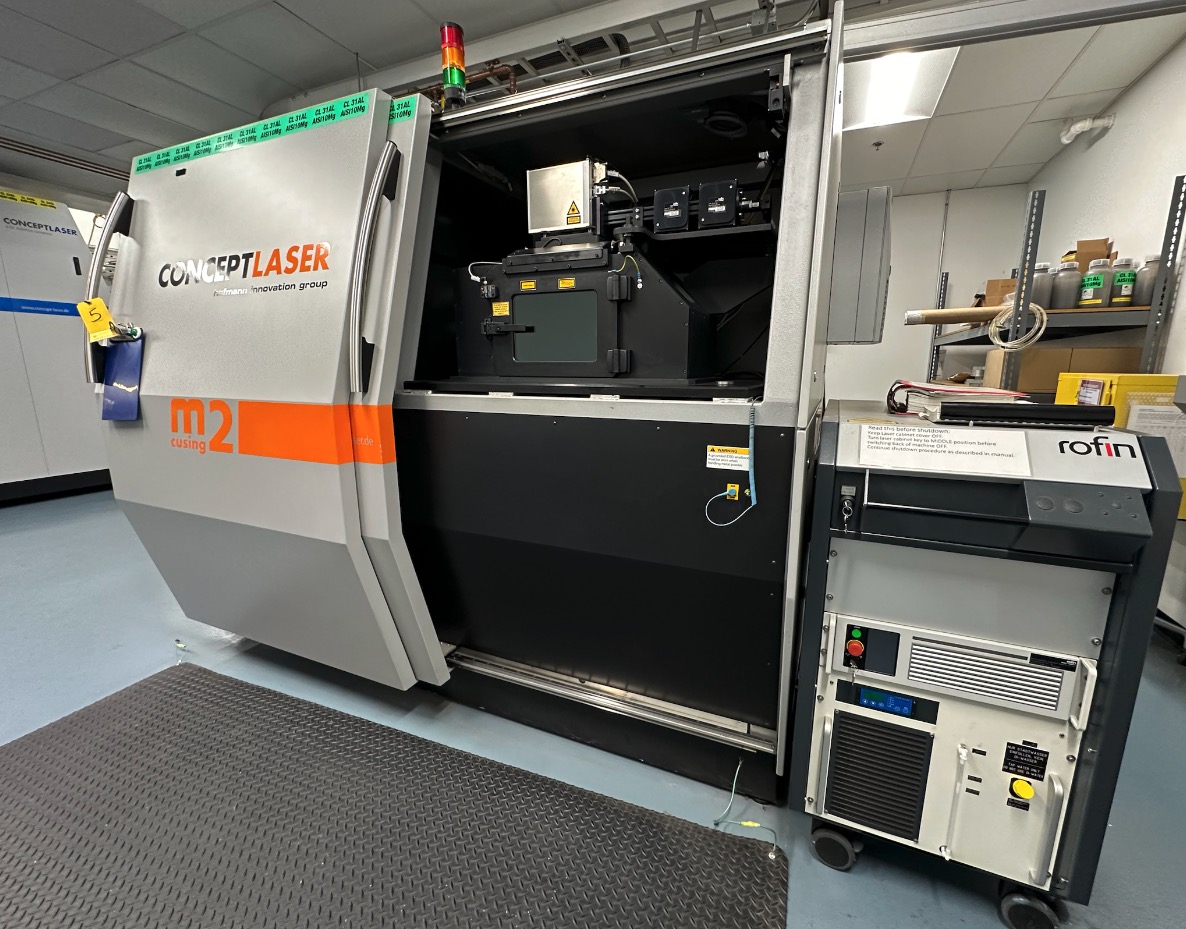

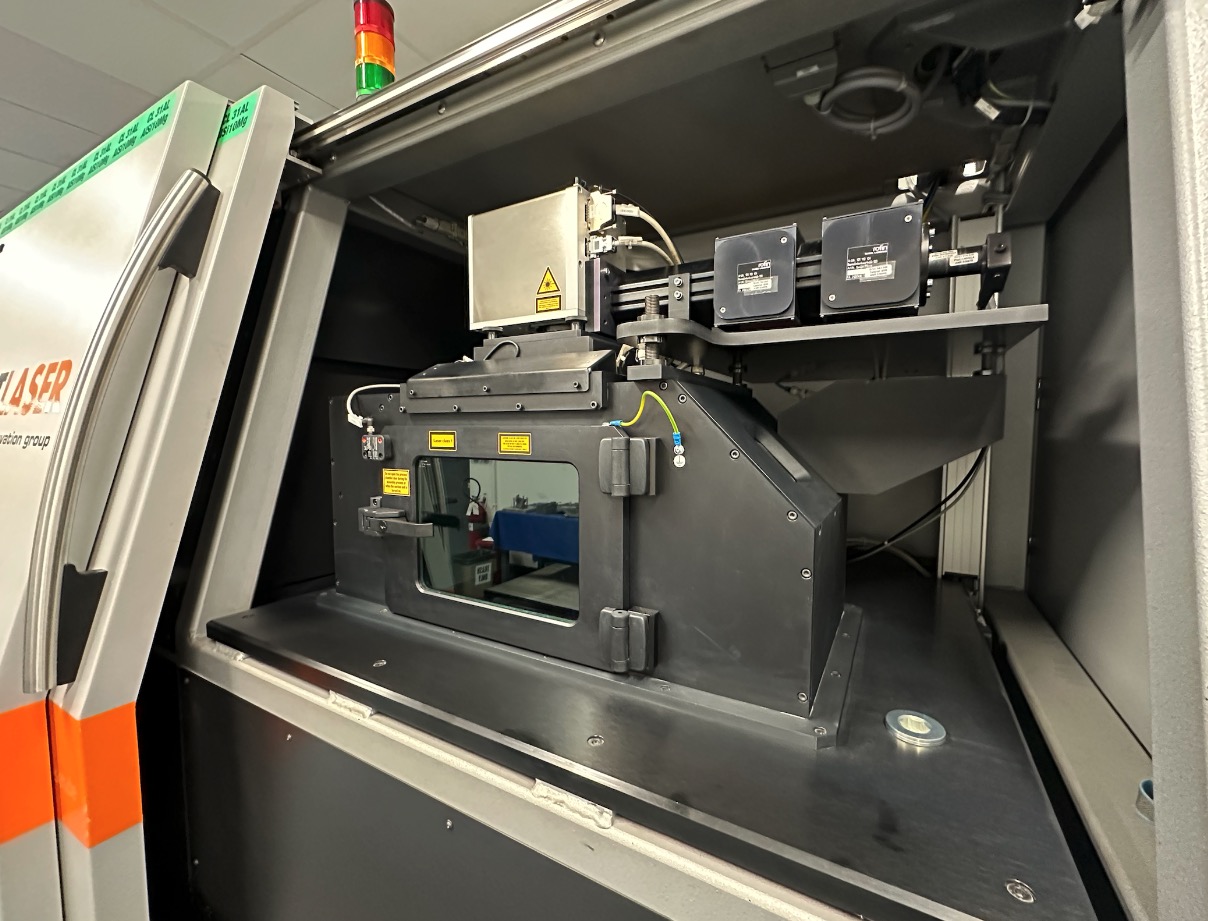

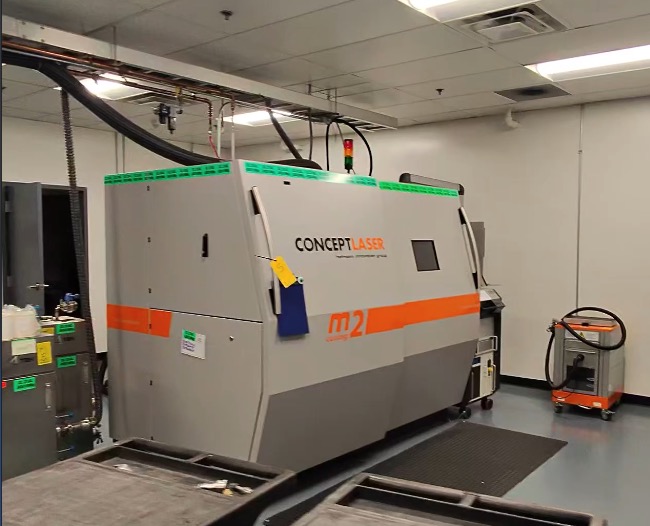

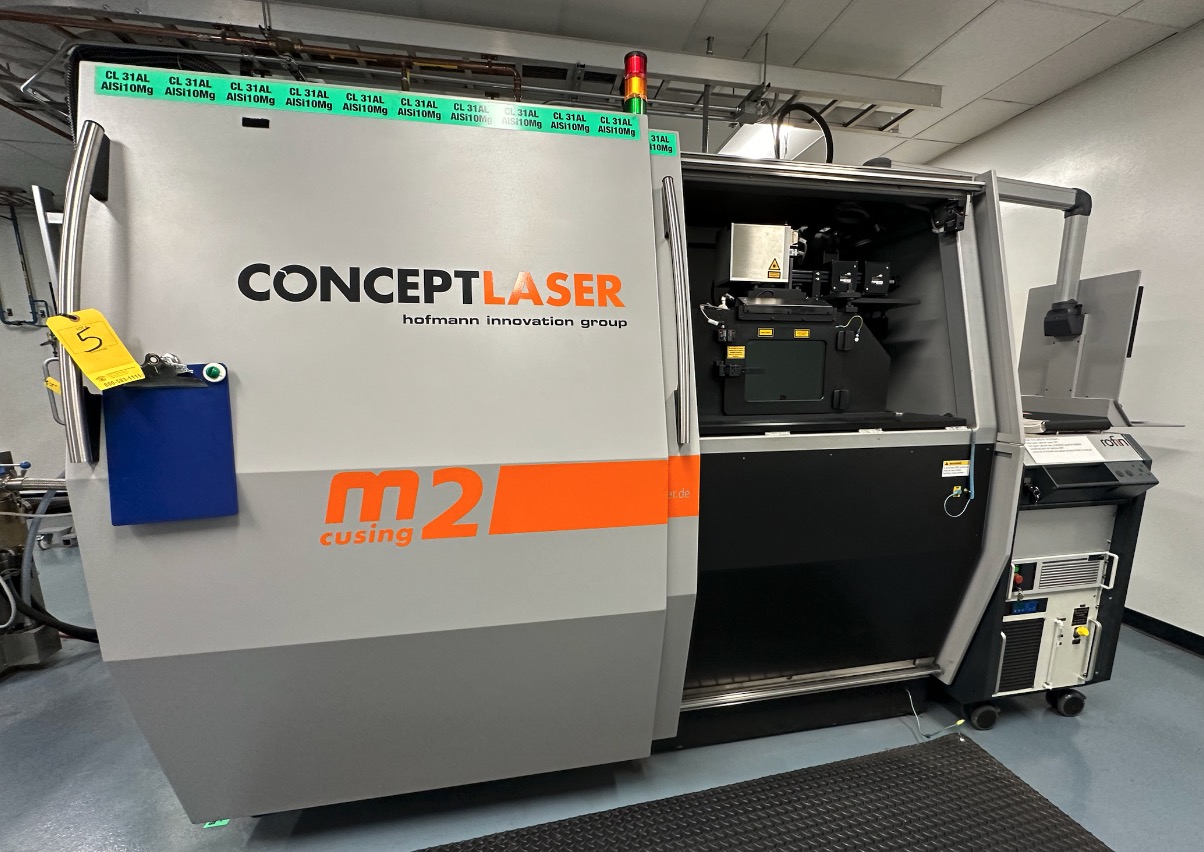

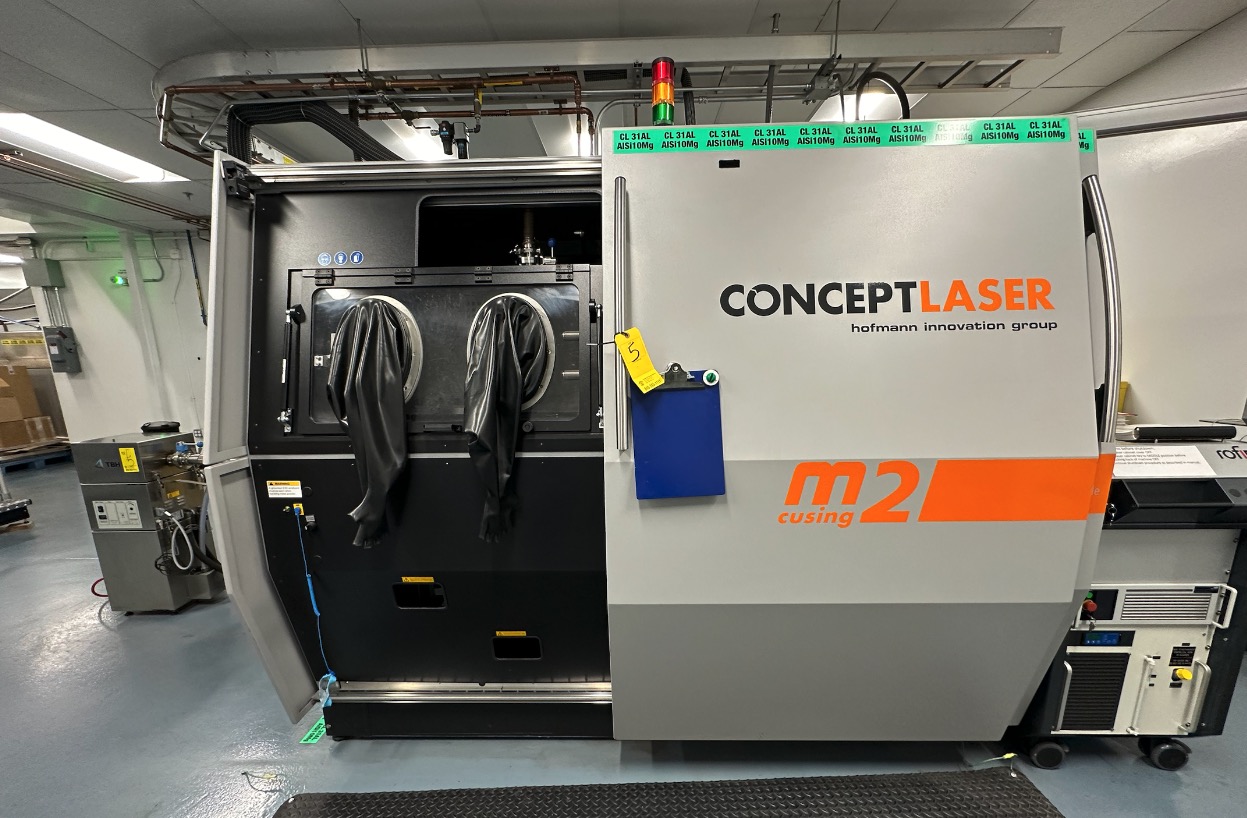

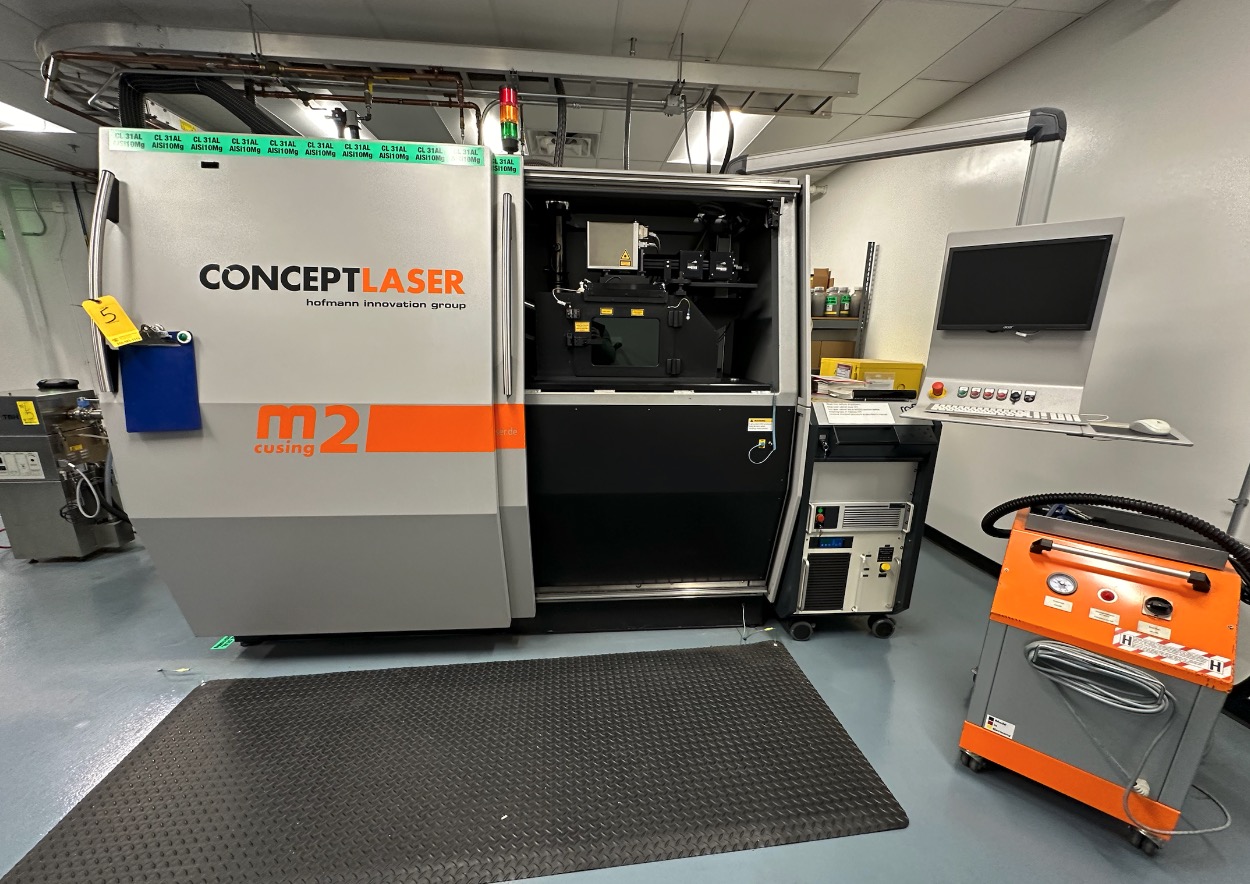

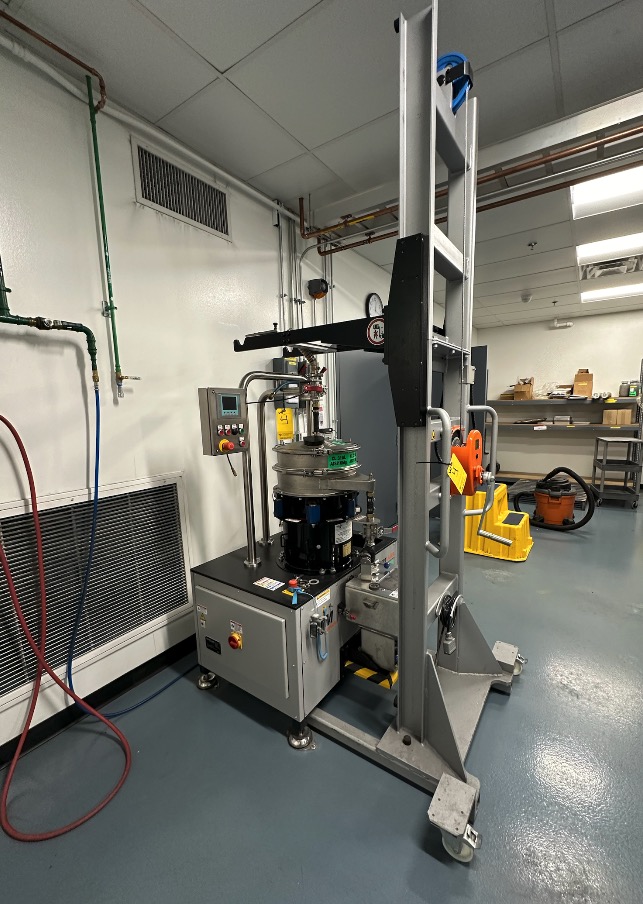

2014 Concept Laser M2 LaserCUSING 400W Fiber Laser DMLM 3D Printer Additive Manufacturing Machine

Floor Space: 250x250x280 mm (WxDxH)

Outer dimension Total: 4200x5900x3009 mm (WxDxH)

1 laser 400W

Power supply: 3P/N/PE AC 400 V, 32 A

6-10 bar compressed air required

Protective gas 5 bar Argon

(for e.g.: titanium)

Protective gas 5 bar nitrogen

(for e.g.: stainless steel)

Production speed 2 cm3/h to 20 cm3/h (depending on material)

Scanning speed max. 7 m/s

Layer thicknesses LaserCUSING® 20 μm - 50 μm

Inert gas consumption approx. 2 m3/h

Laser system Fiber laser 200F or 400F

Protection class Laser protection class 4

Power max. 200W or 400W (cw operation)

Wavelength 1070 nm (infrared)

Laser beam diameter 50 μm

Storage and transport temperature -20 - 35 °C (-4 - 95 °F)

Operating temperature 15 - 35 °C (59 - 95 °F)

Temperature change max. 2 °C/h (2 °F/h)

Relative humidity max. 80% (non-condensing)Indoor use only

Installation altitude above sea level (NN) max. 2000 m
