2021 Zeman Compact+ Steel Beam Assembler

2021 Zeman Compact+ Steel Beam Assembler

Contact us for price

Fort Worth, TX

orCall 817-291-4065

Description

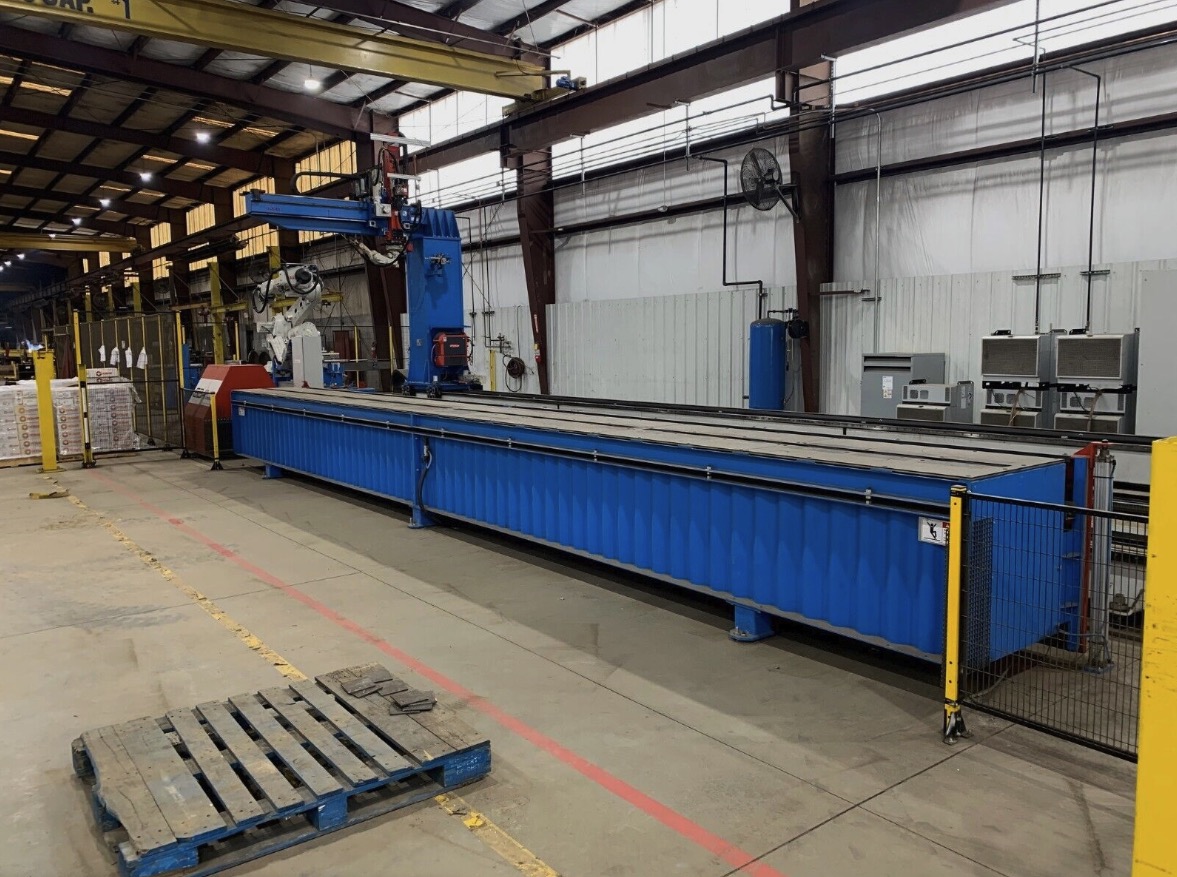

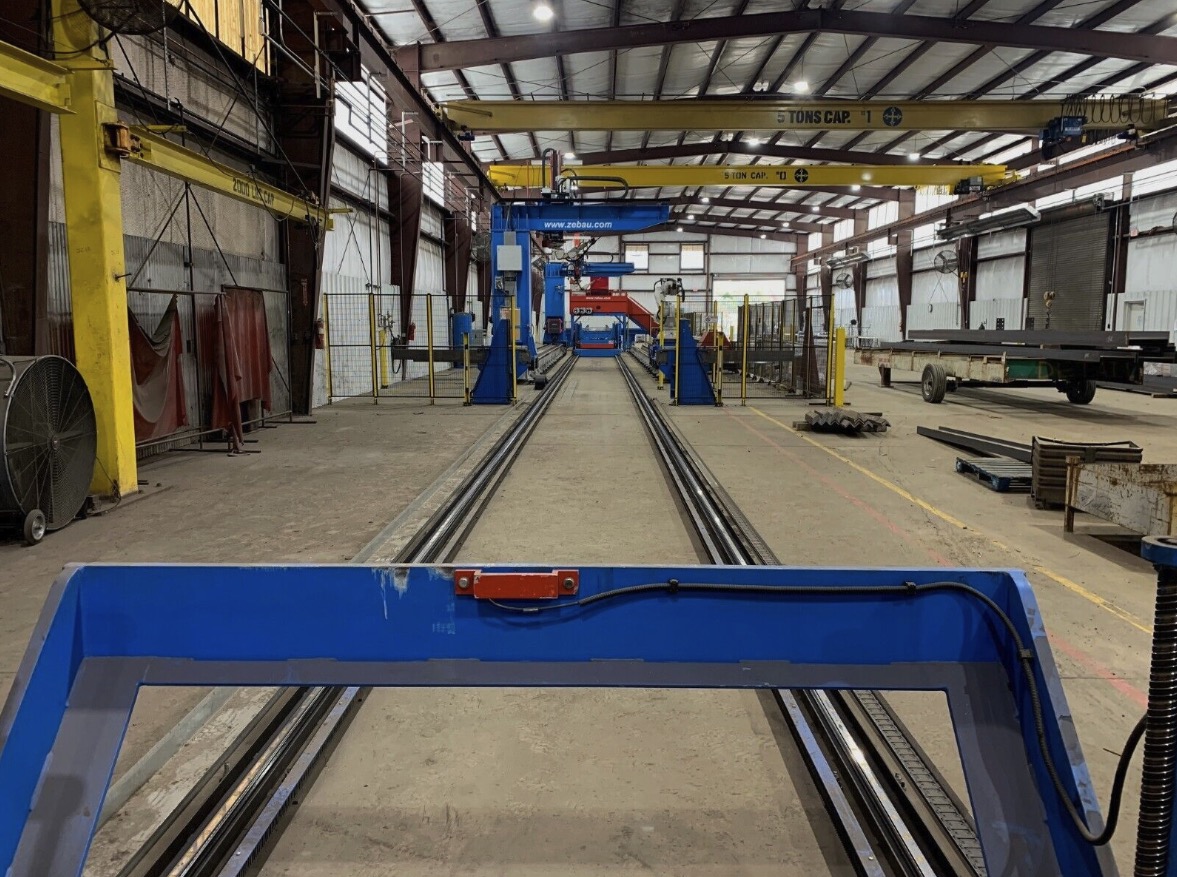

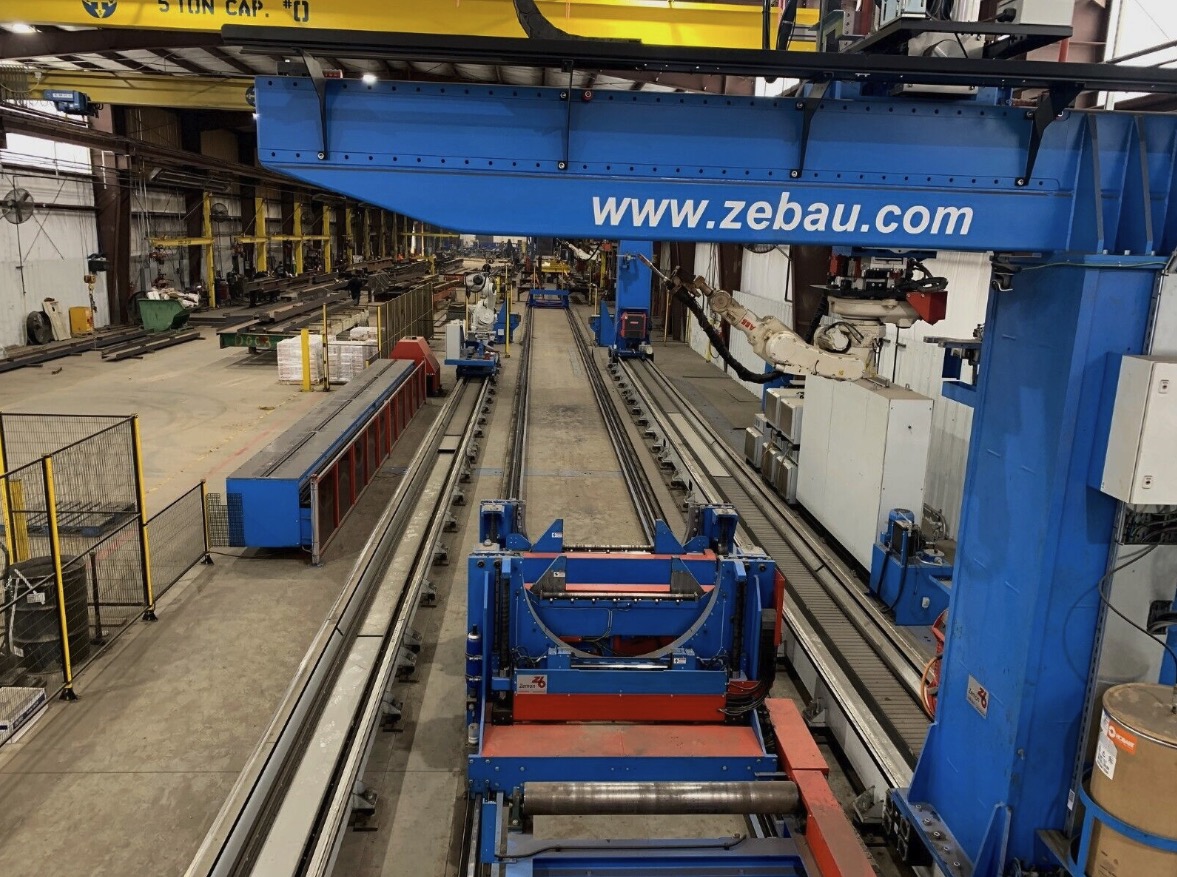

Zeman Compact+ Steel Beam Assembler

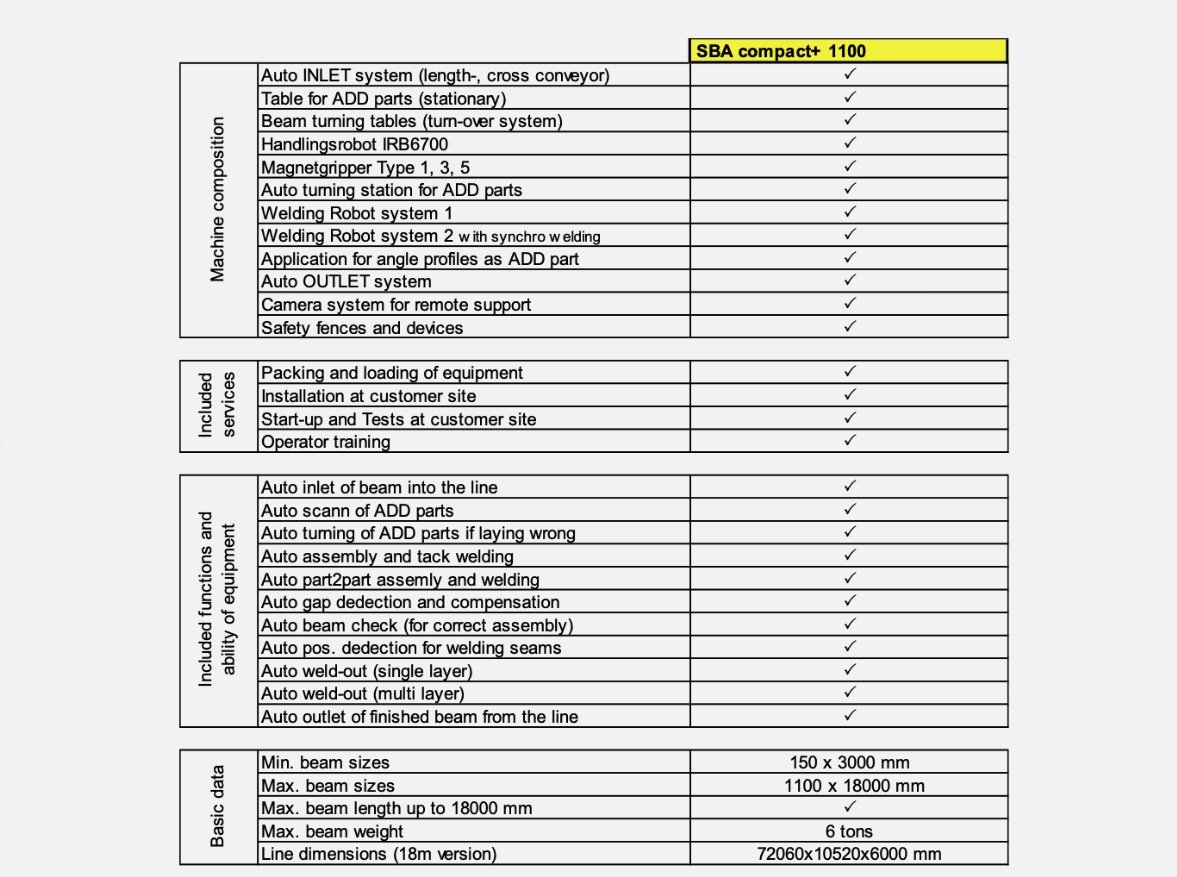

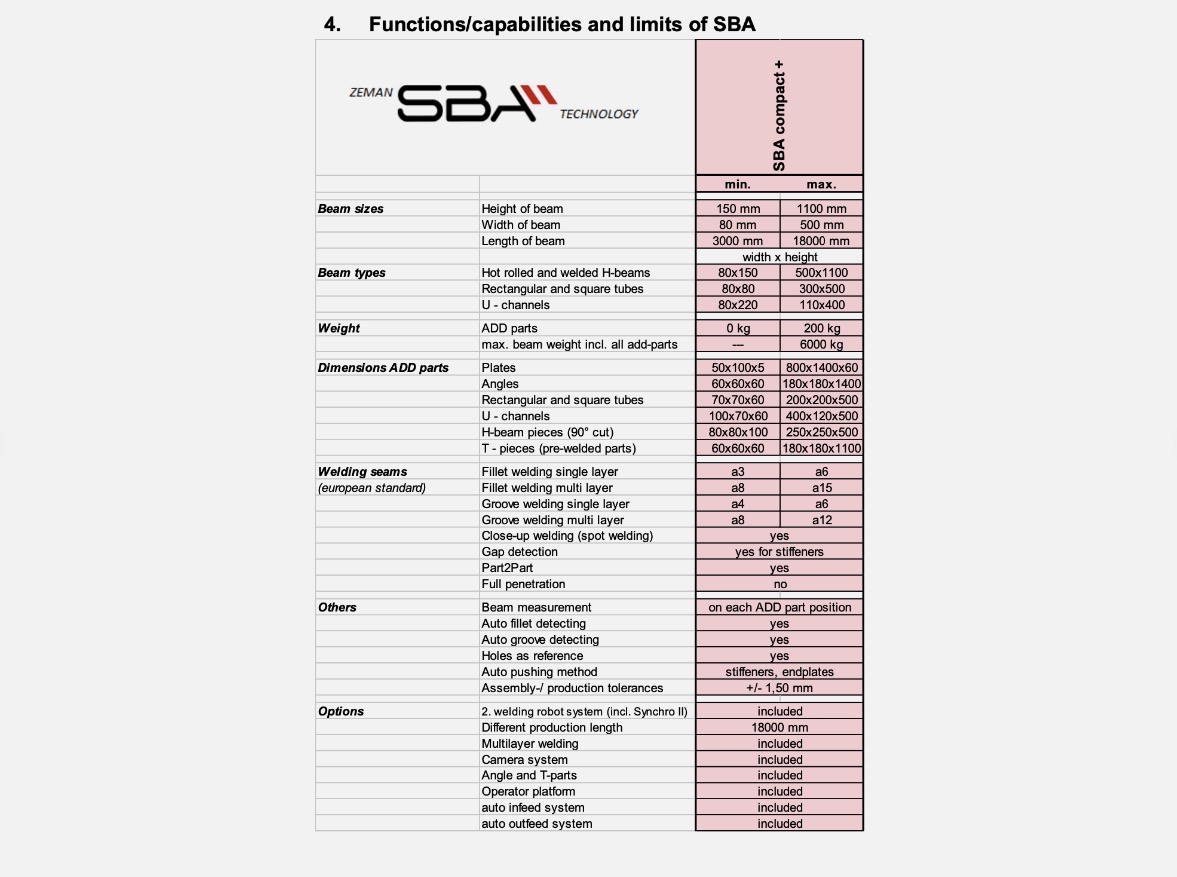

Specs

- Machine Length: 708" (18,000 mm)

- Machine Width: 31' 10 1/4"

- Machine Ht: 19' 8 1/4"

- Max Add Part Wt: 441 Lbs

- Max Beam Wt: 13,230 lbs


Options

- 2 Welding Robot System

- Increased Production Length

- Multi-layer Welding

- Camera System

- Angle & T-Parts

- Operator Platform

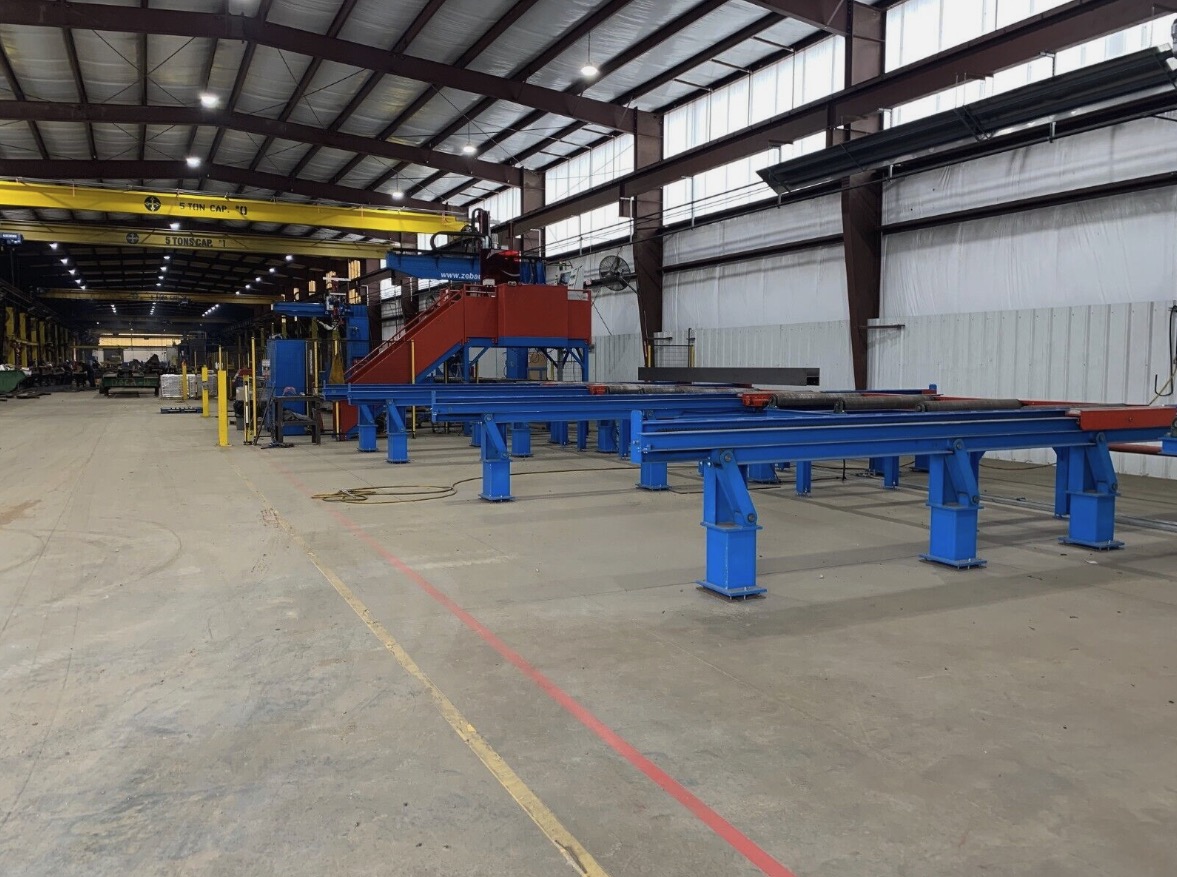

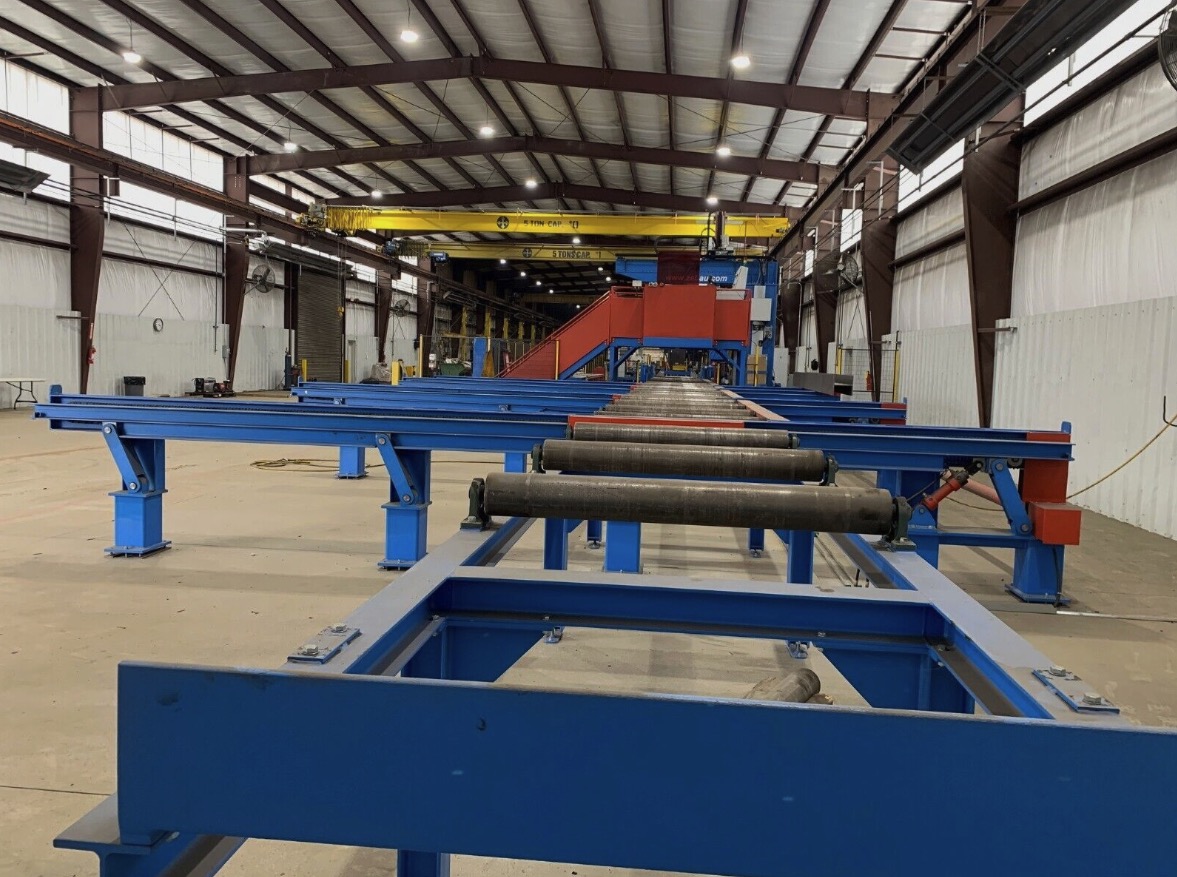

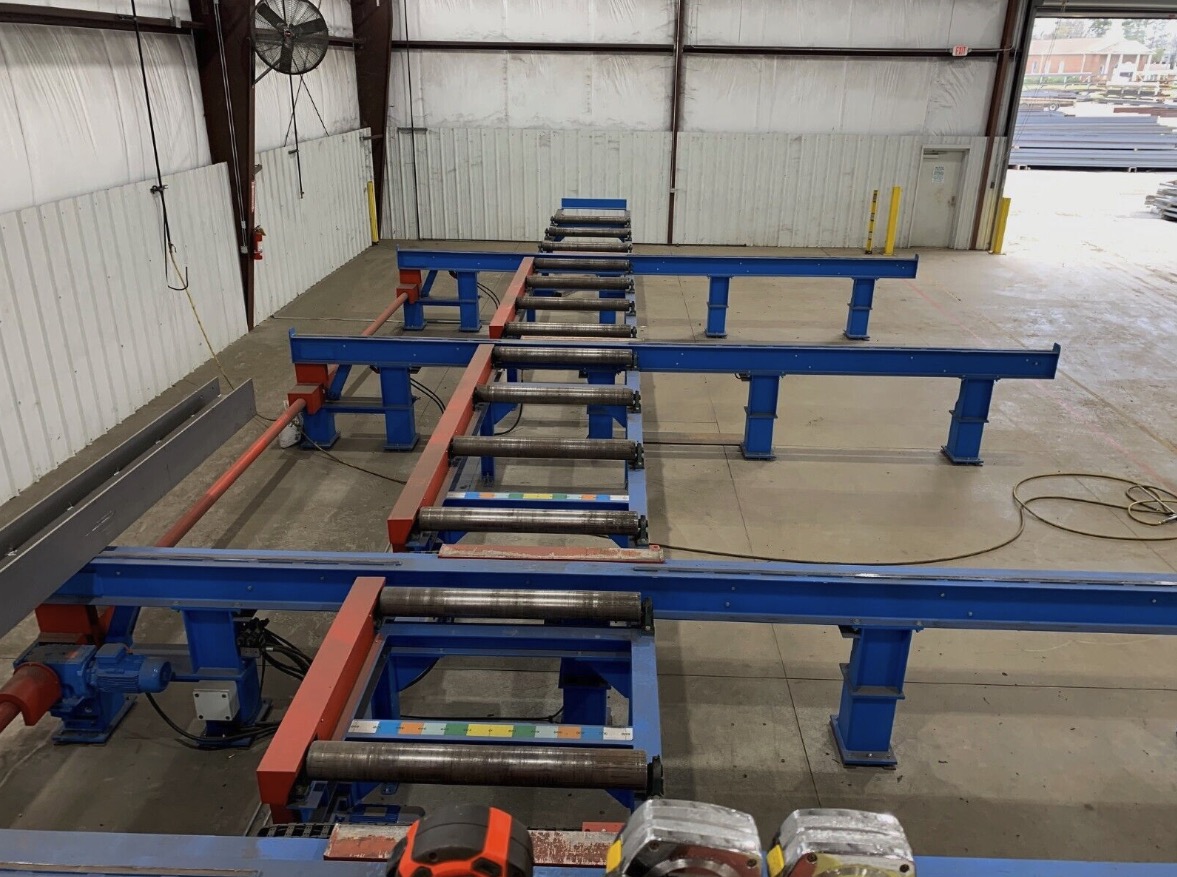

- Auto Infeed System

- Auto Outfeed System


Video breakdown of Compact + features: https://www.youtube.com/watch?v=K38OG10FQb0


Features:

  • Modular Design. Allows to add Options to the machine at a later stage to make it even more productive.
  • Laser Measurement. Defines material dimensions and locate the zero reference point.

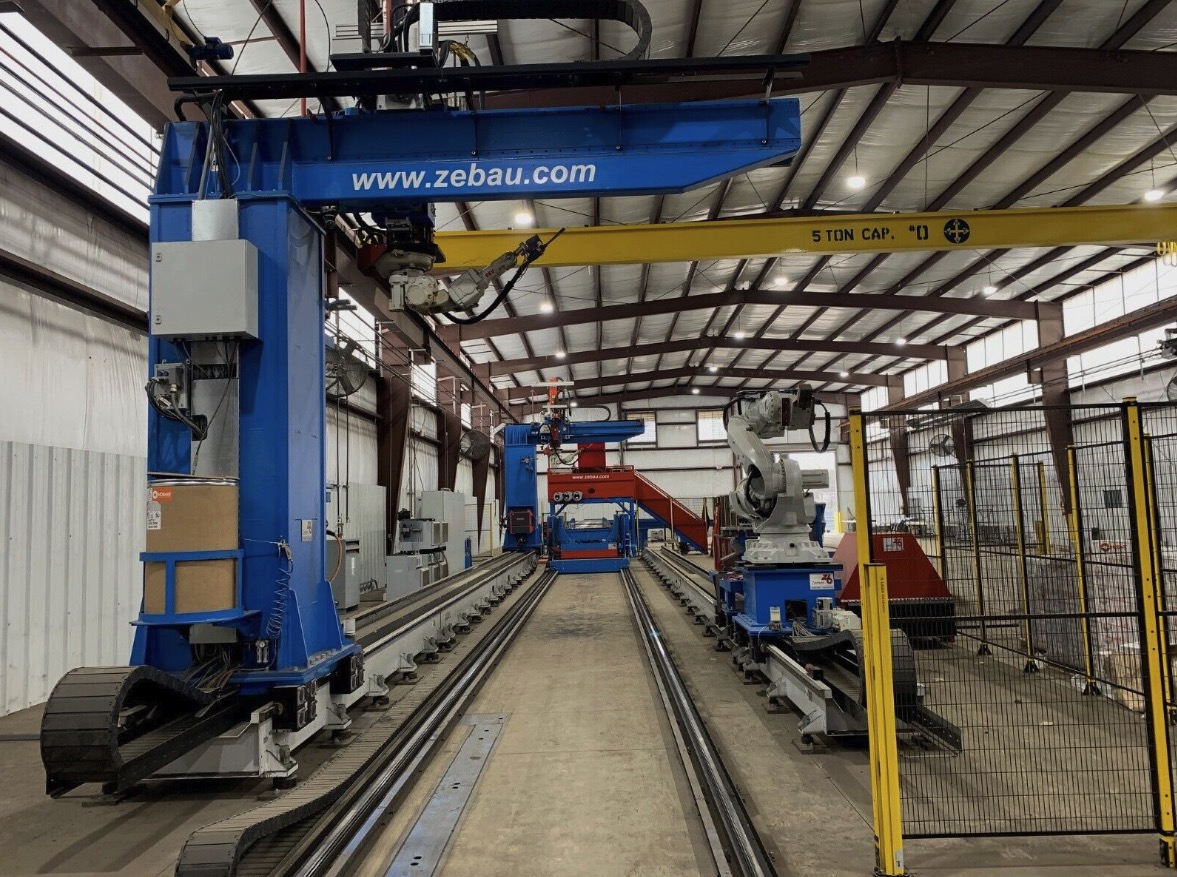

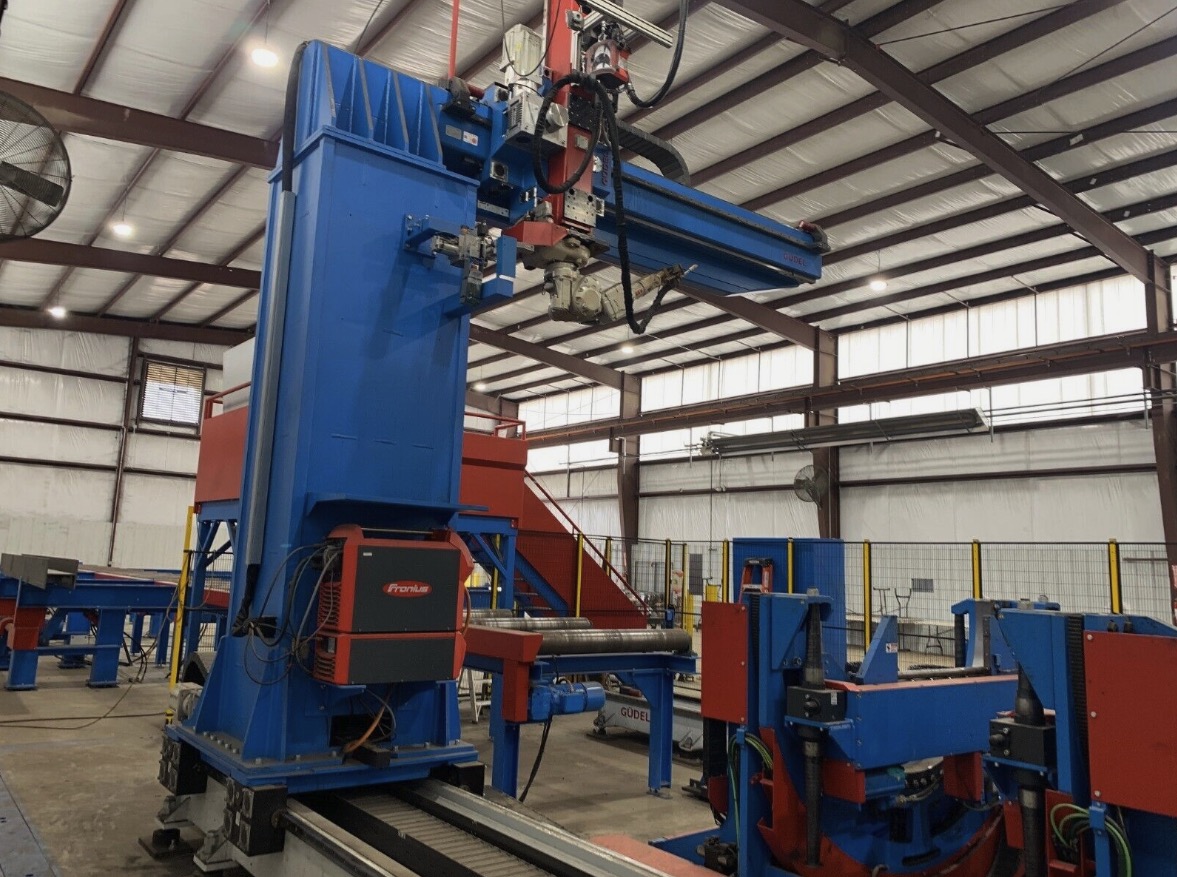

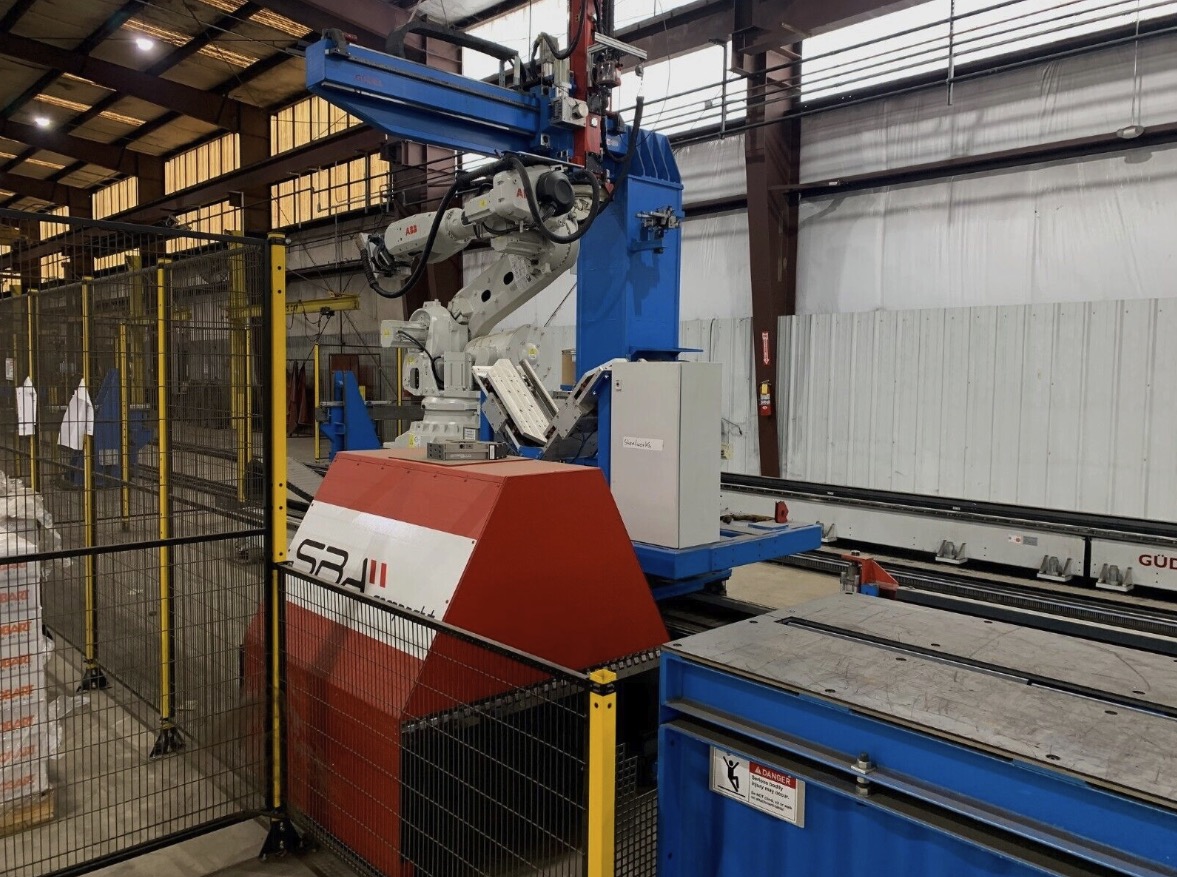

  • Tack & Weld Robot for fully automated and perfect beam assembly.
  • Parts Scanning Unit. For full quality check of all ADD parts. Each scan simultaneously checks and compares the results with the 3D model.

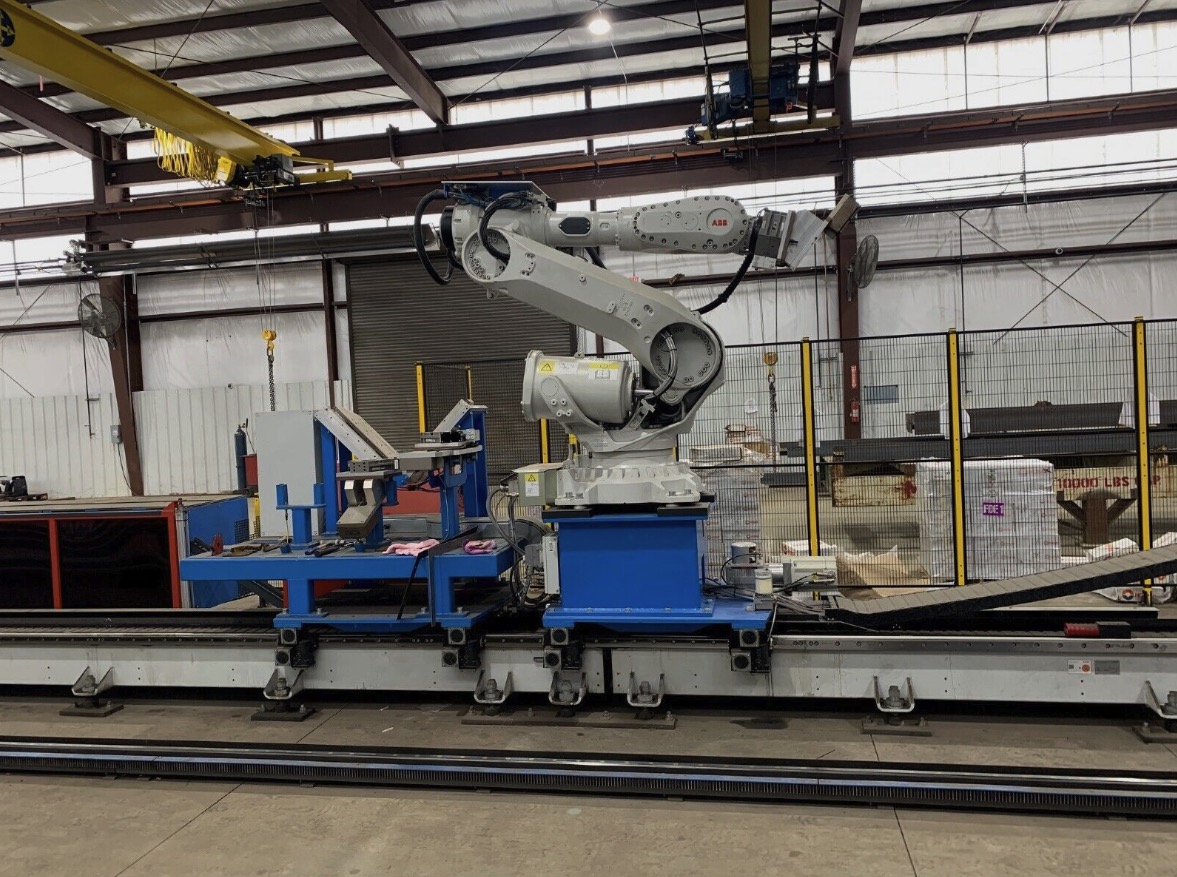

  • Parts Robot. ADD parts will be perfectly positioned to their exact weld location.

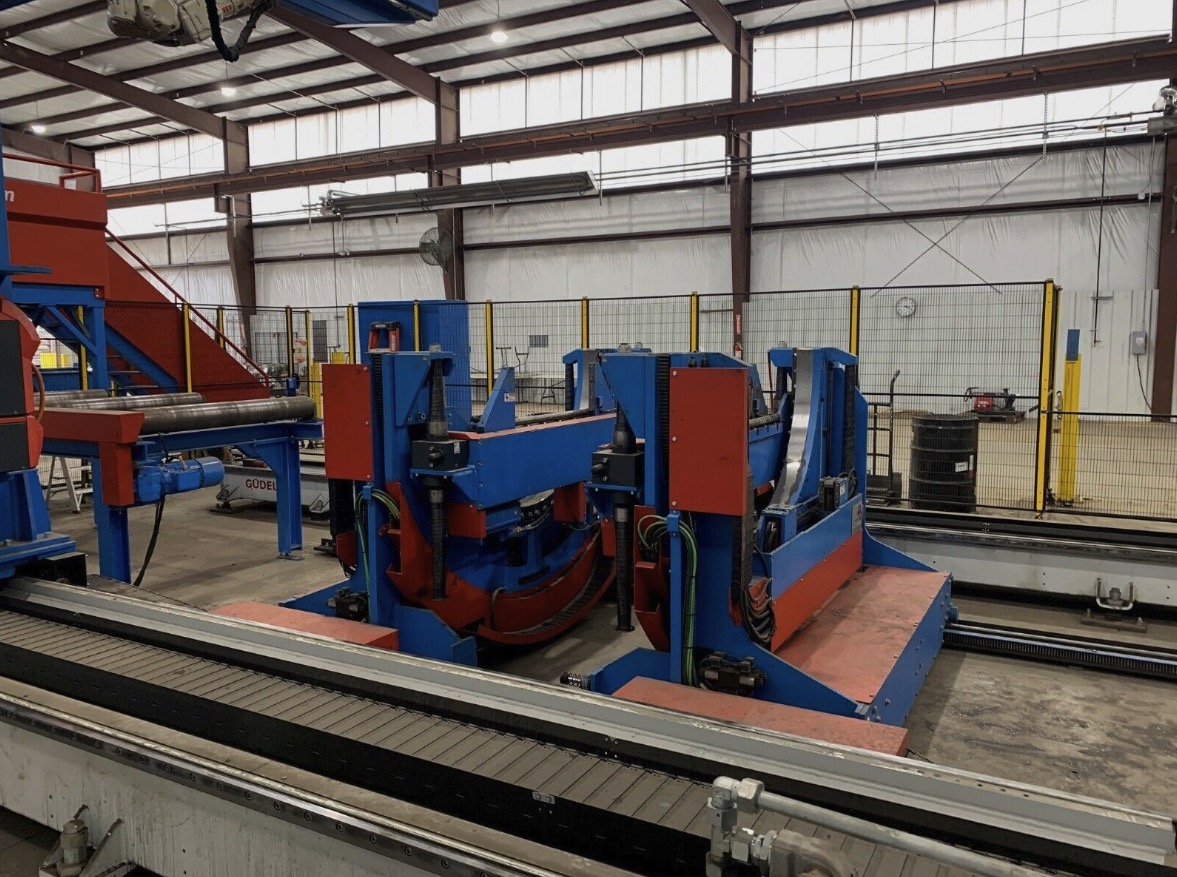

  • Integrated Profile Turning Device. Rotate beams the full 360° for maximum processing and continuous automated production.
  • Profile Clamping Unit. Secures the main profile for tacking and welding.

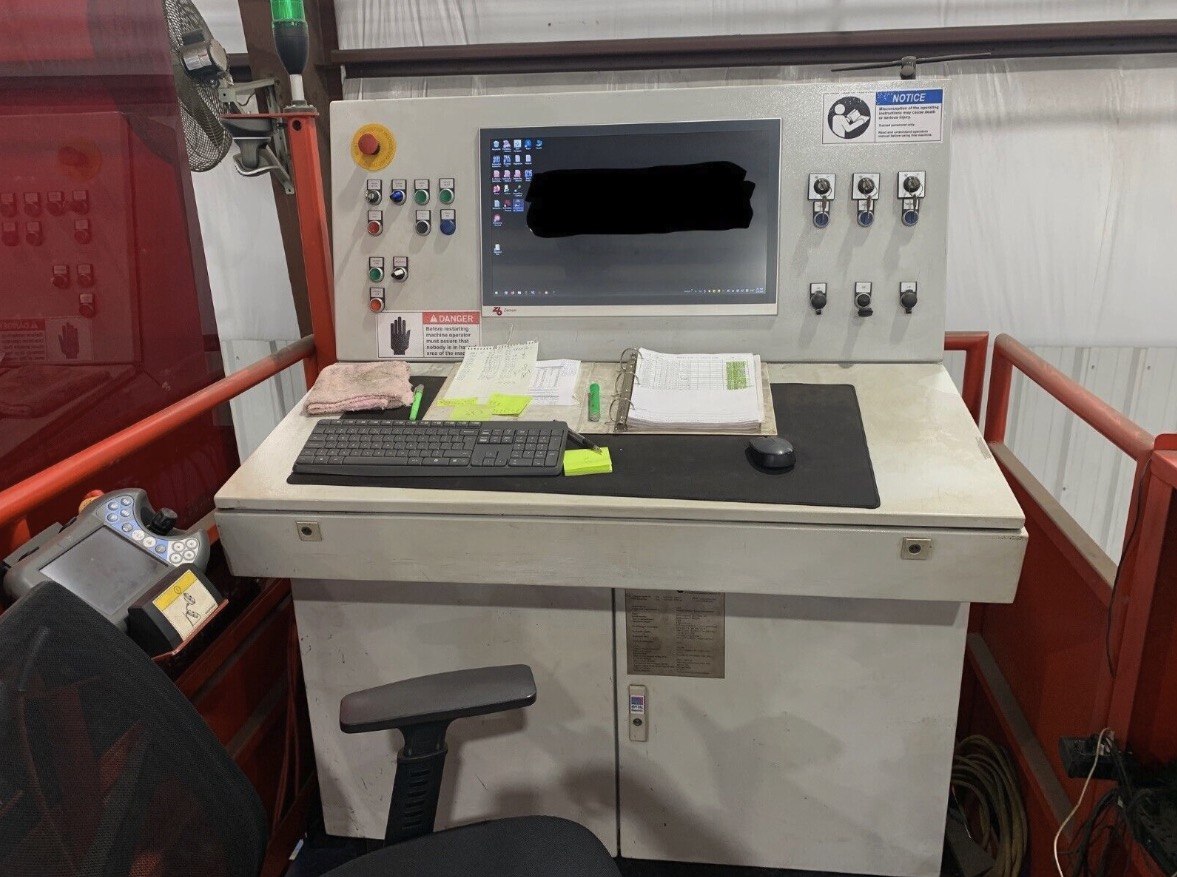

  • Machine Control. Fully automated production with all its data in sight and control from a safe position and distance.
  • ProFIT Software. Allows semi automated generation of the full assembly and welding workflow.



MORE DETAILED SPECS CAN BE FOUND AT THE MFG WEBSITE HERE:

https://zebau.com/machines/sba/sba-compact

Specifications

ManufacturerZeman
ModelCompact+ Steel Beam Assembler
Year2021
ConditionUsed
