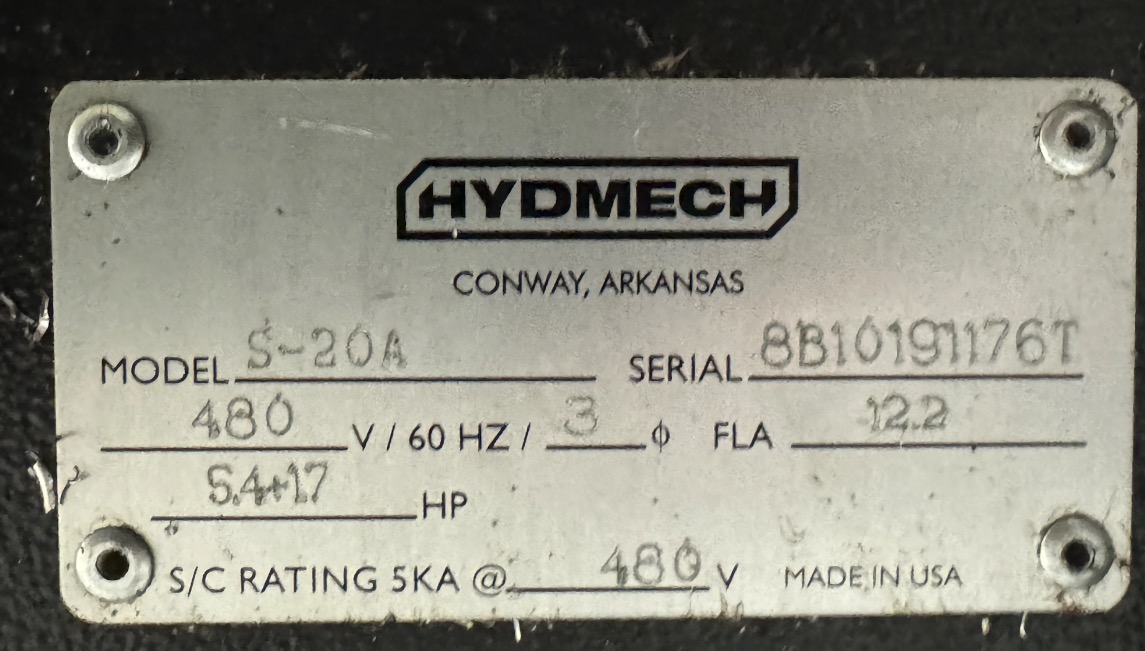

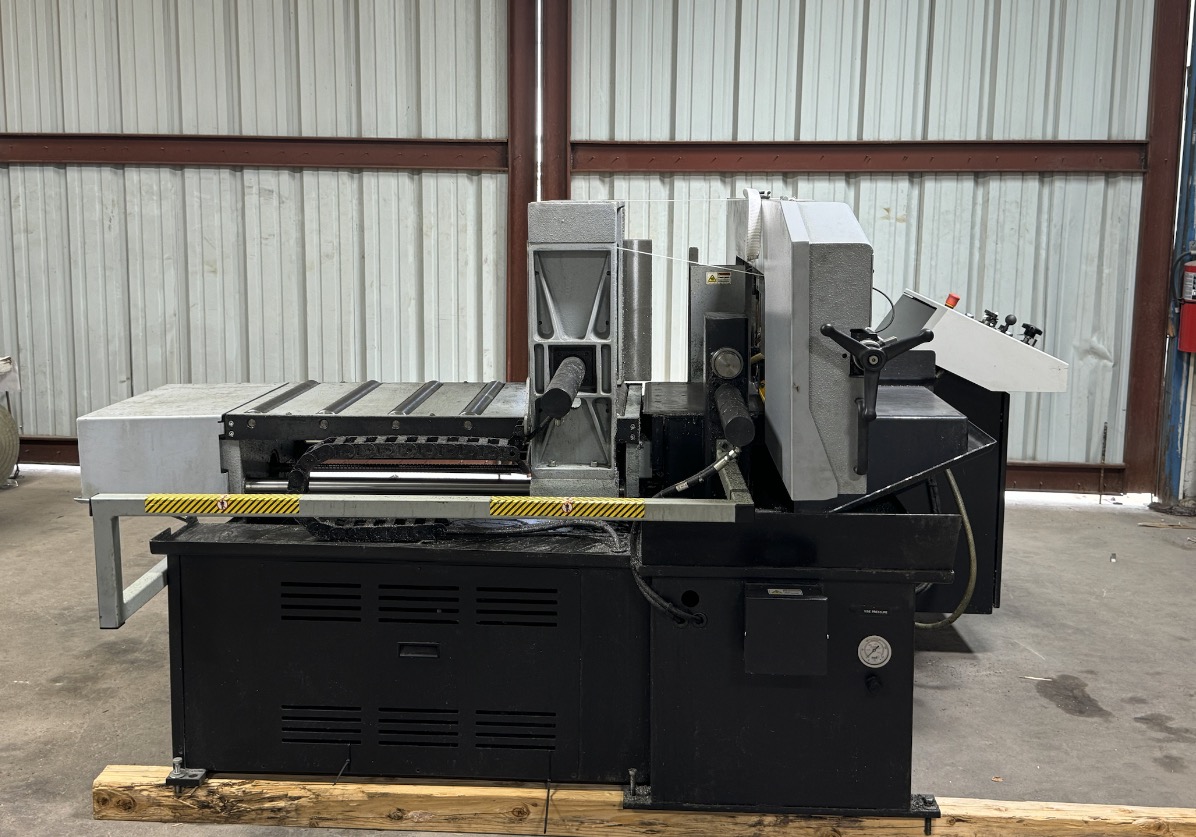

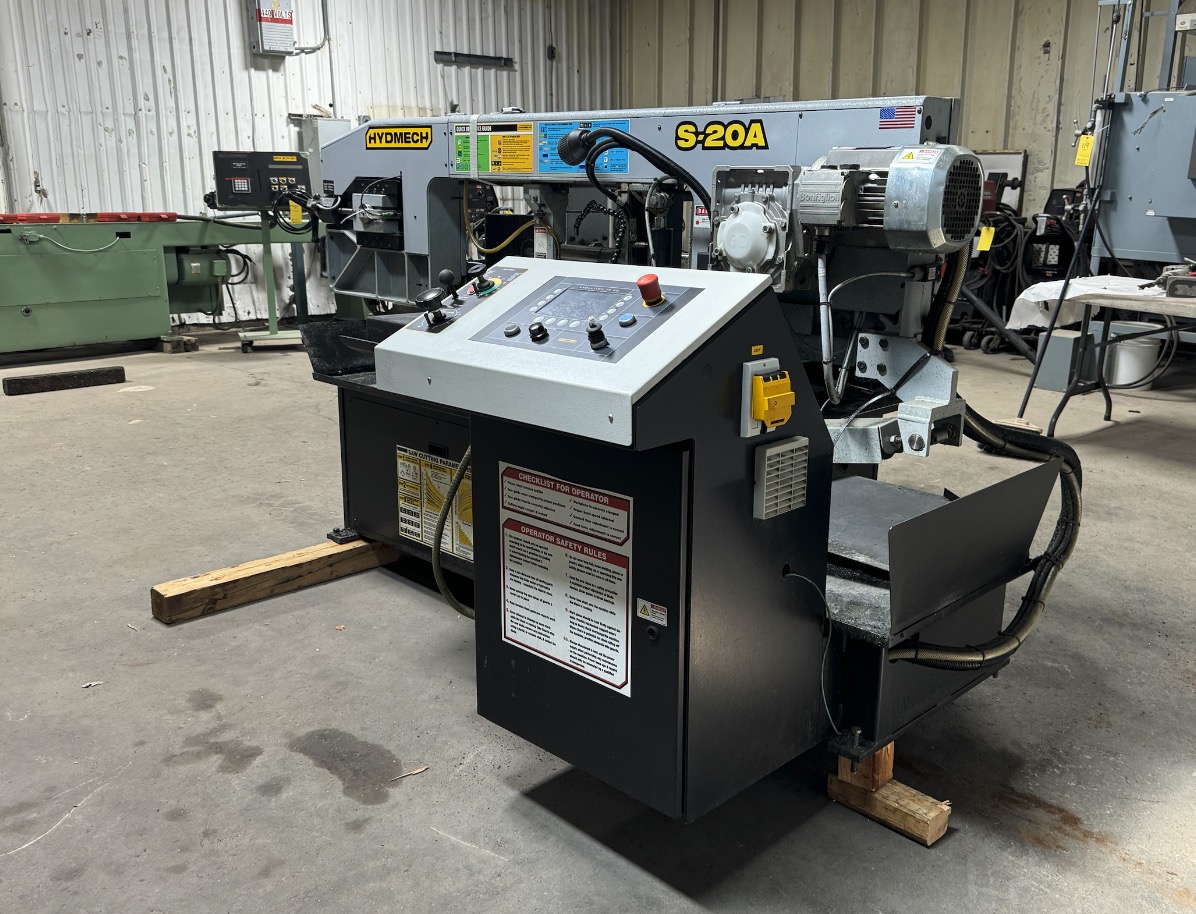

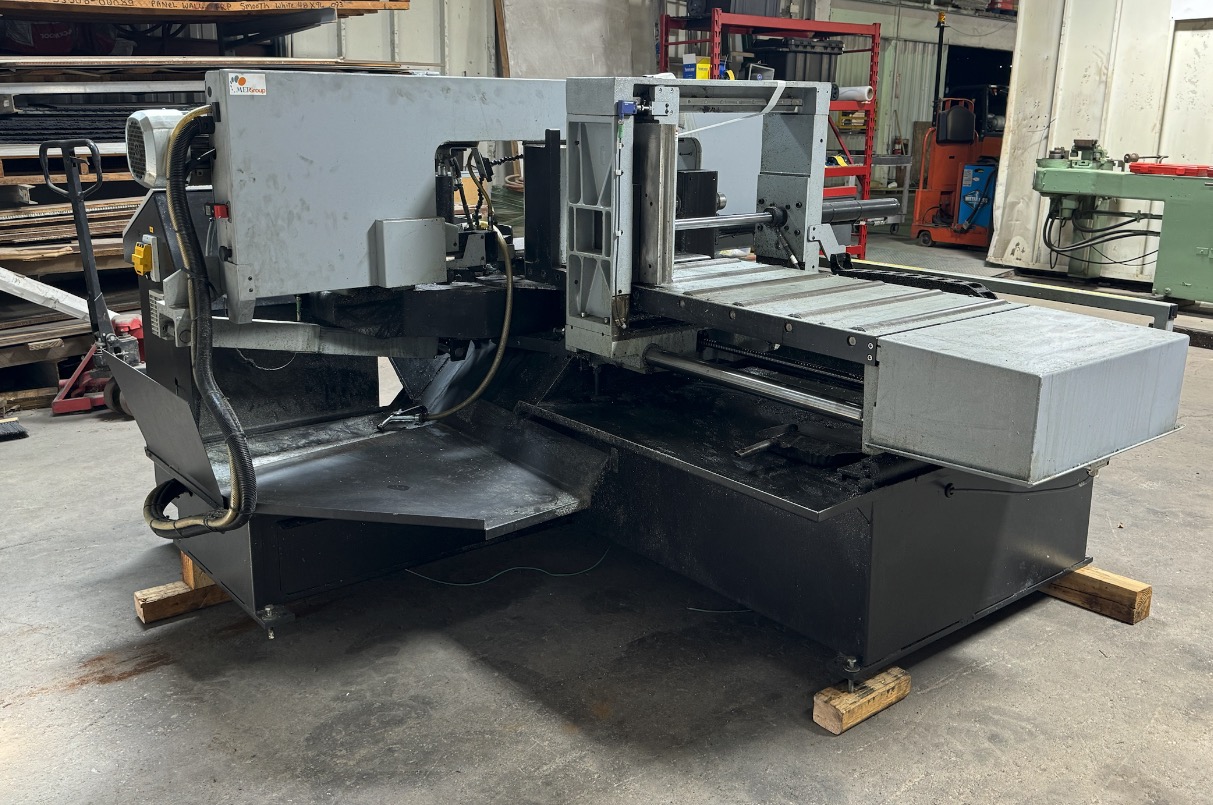

Hydmech S-20A Automatic Horizontal Pivot Band Saw

| Capacity    | Rectangular (h x w) | Round   |

|-----------------|---------------------|-----------|

| 90°       | 13" x 18"      | 13"    |

| 45°       | 13" x 10 3/4"    | 12"    |

| 30°       | 13" x 7 3/4"     | 8 1/2"  |

| Specification     | Details         |

|------------------------|--------------------------|

| Blade Size       | 1” x 14' 10"       |

| Blade Drive      | 5 HP VFD         |

| Machine Voltage    | 480 V (optional transformer for other voltages) |

| Blade Speed      | 75-330 SFM        |

| Coolant Tank Capacity | 12 Gallons        |

| Work Load       | 5,000 lbs        |

| Machine Weight     | 3,800 lbs        |

| Table Height      | 31"           |

| Dimensions (w x l x h) | 93” x 86" x 52”     |
