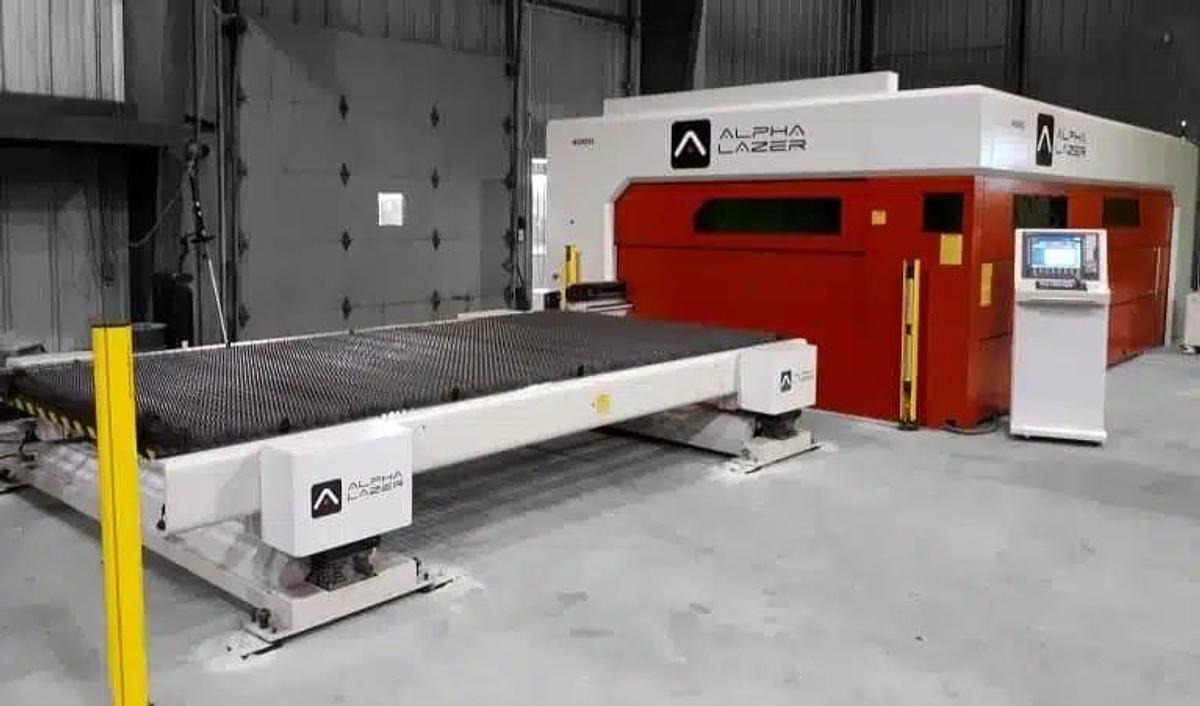

2021 ALPHA LAZER 6000 WATT M 4020 FIBER LASER (NEVER INSTALLED)

Machine Specifications

Working Range: 6' x 12'

Lateral Door

Self-Lubricating

Max Sheet Size: 160" x 80"

Max Sheet Weight: 52 lbs./sq.in.

Remote Access

Controller Unit

Siemens Sinumerik 84 D SL

18.5" Touch Panel

Remote Access

Laser Source

Maximum Laser Power: 6000 Watts

IPG Chiller

Remote Access

Laser Cutting Head

Autofocus

Focus Length: 150 mm

Remote Access

Other Information

Motion: Rack and Pinion

Shuttle Table: Automatic

Lateral Scrap Conveyors: Automatic

Safety: Light Curtains

Dust and Fume Extraction System: Capacity 2500 scfm; Model PL-4000

Bevel: 5-Axis Bevel Head for Full Contour Beveling

Equipped With

Dust Collector

Chiller
