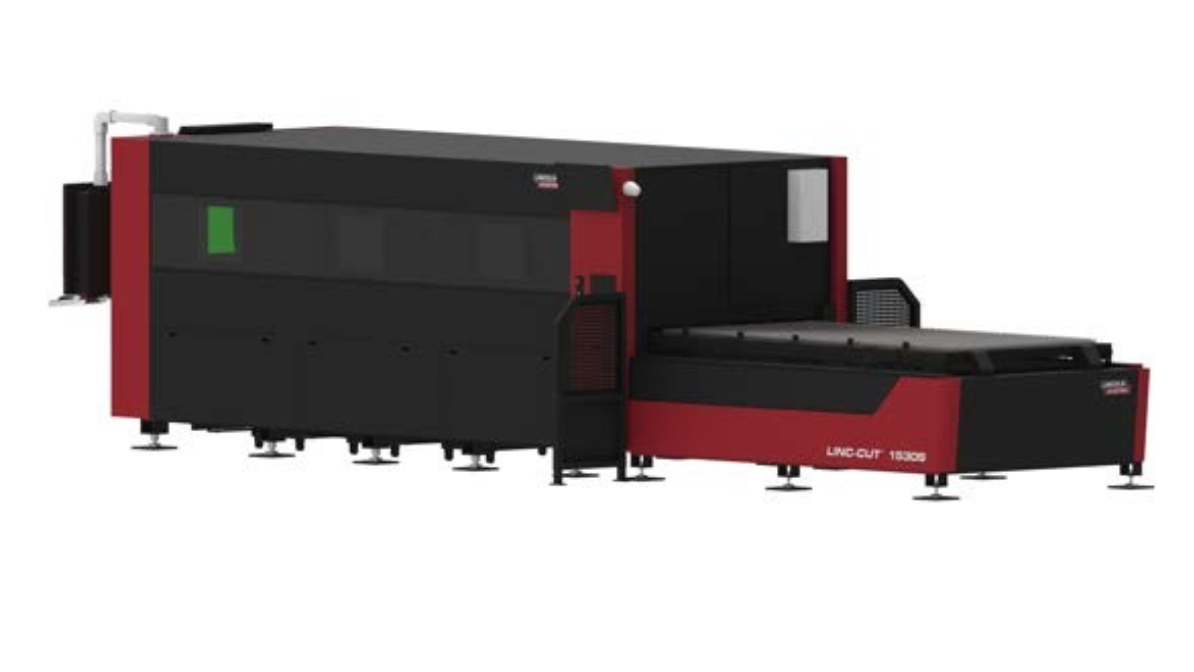

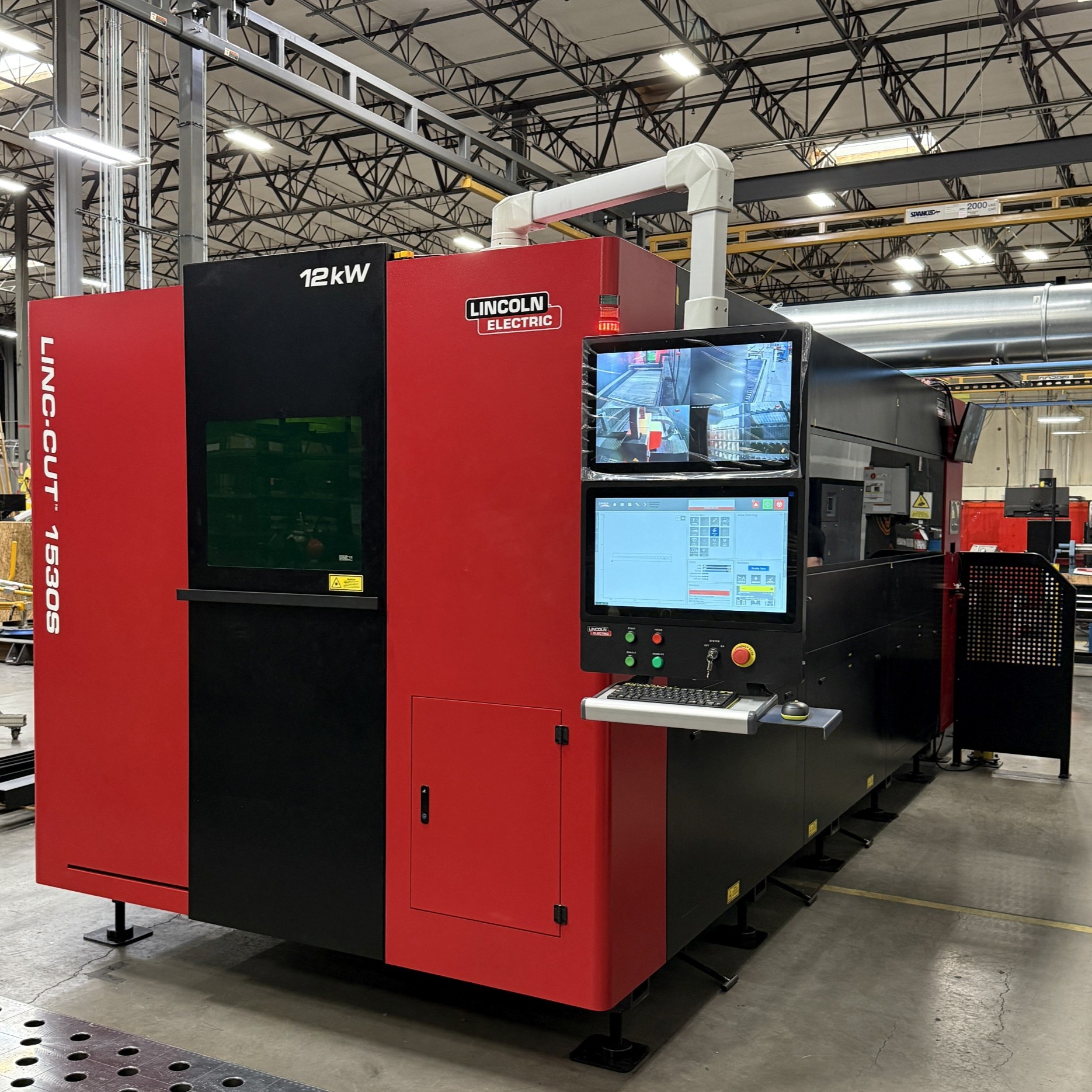

2026 Lincoln Electric LINC-CUT 1530S 12kW FIBER LASER CNC CUTTING SYSTEM

 Brand-New 2026 Lincoln 6kW & 12kW Fiber Laser(s)

Call Evan for Pricing: 817-222-9848 or submit an request for quote.

Machine Features:

• Work Area: 5' x 10' travels
• Cutting Capacity: Up to 1.5" steel plate
• Included in the Package:
• Machine delivery
• Setup (customer-supplied electrical and gas hookups required)
• 2 days of expert training
• 1-year warranty
•

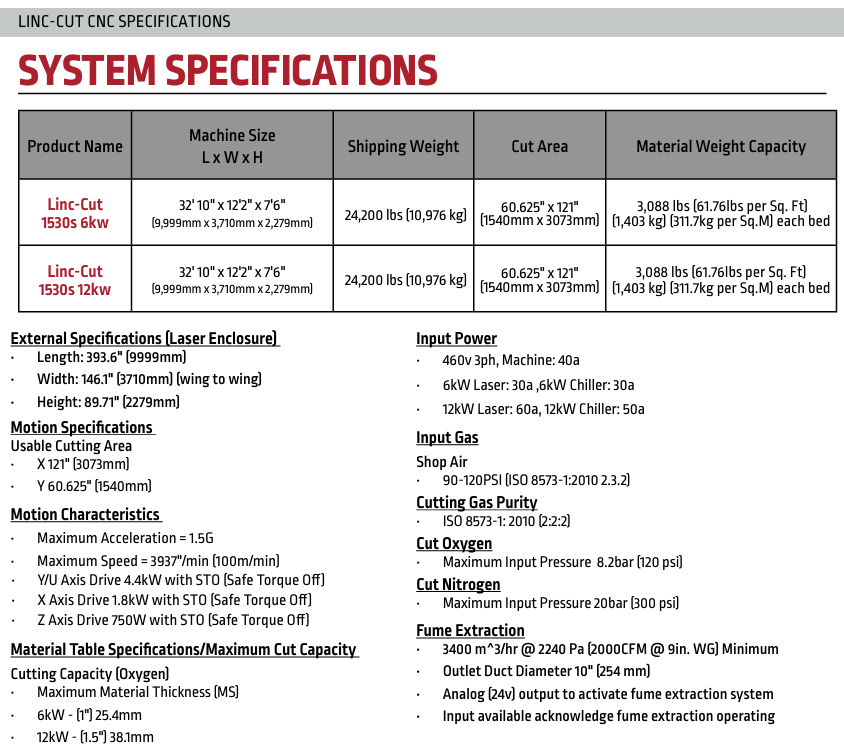

External Specifications (Laser Enclosure)

• Length: 393.6" (9999mm)

• Width: 146.1" (3710mm) (wing to wing)

• Height: 89.71" (2279mm)

Motion Specifications

Usable Cutting Area

• X 121" (3073mm)

• Y 60.625" (1540mm)

Motion Characteristics

• Maximum Acceleration = 1.5G

• Maximum Speed = 3937"/min (100m/min)

• Y/U Axis Drive 4.4kW with STO (Safe Torque Off)

• X Axis Drive 1.8kW with STO (Safe Torque Off)

• Z Axis Drive 750W with STO (Safe Torque Off)

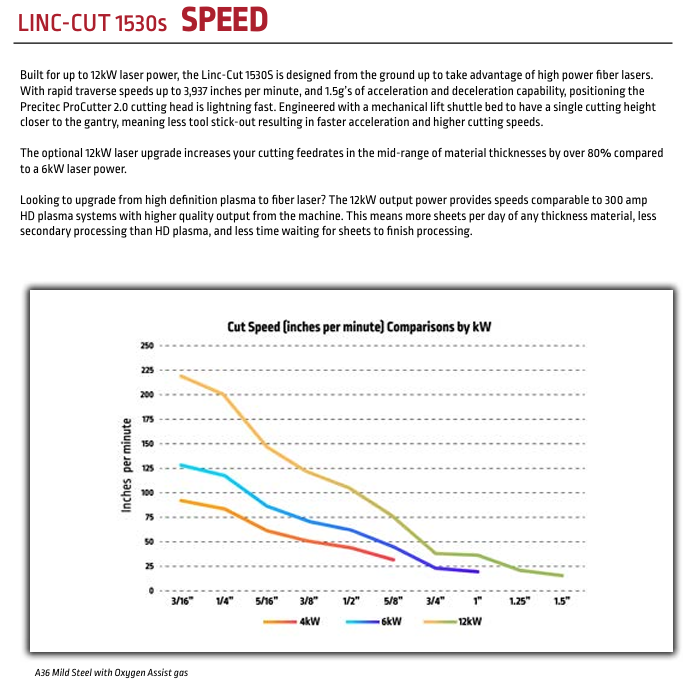

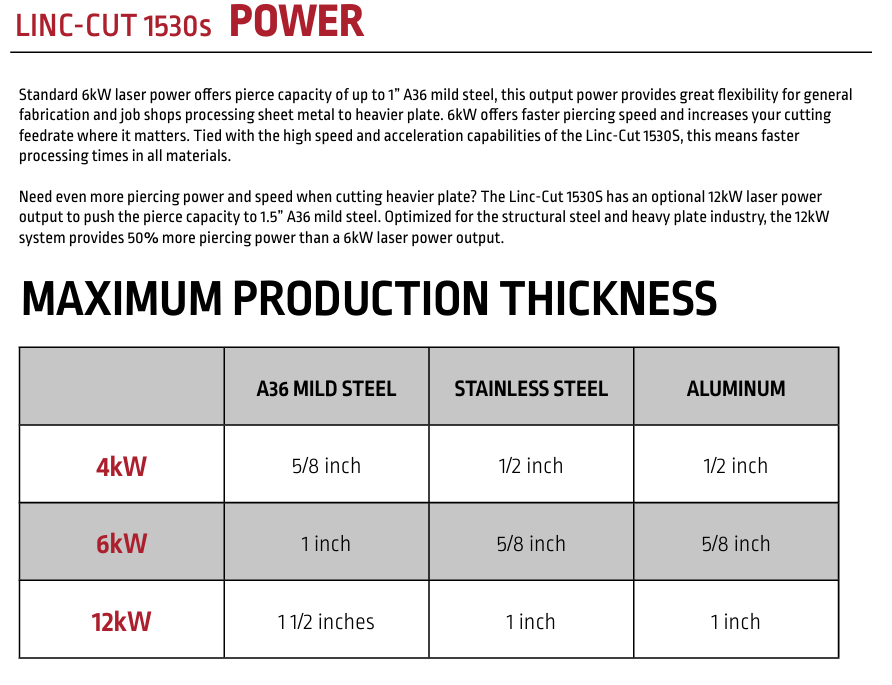

Material Table Specifications/Maximum Cut Capacity

• Cutting Capacity (Oxygen)

• Maximum Material Thickness (MS)

• 6kW - (1") 25.4mm

• 12kW - (1.5") 38.1mm

Input Power

460v 3ph,Machine: 40a

6kW Laser: 30a ,6kW Chiller: 30a

12kW Laser: 60a, 12kW Chiller: 50a

Input Gas

Shop Air

90-120PSI (ISO 8573-1:2010 2.3.2)

Cutting Gas Purity

ISO8573-1: 2010 (2:2:2)

Cut Oxygen

Maximum Input Pressure 8.2bar (120 psi)

Cut Nitrogen

Maximum Input Pressure 20bar (300 psi)

Fume Extraction

3400m^3/hr @2240 Pa (2000CFM @ 9in. WG) Minimum

Outlet Duct Diameter 10" (254 mm)

Analog (24v) output to activate fume extraction system Input available acknowledge fume extraction operating
