2003 WEINGARTNER VARIO 500/8000

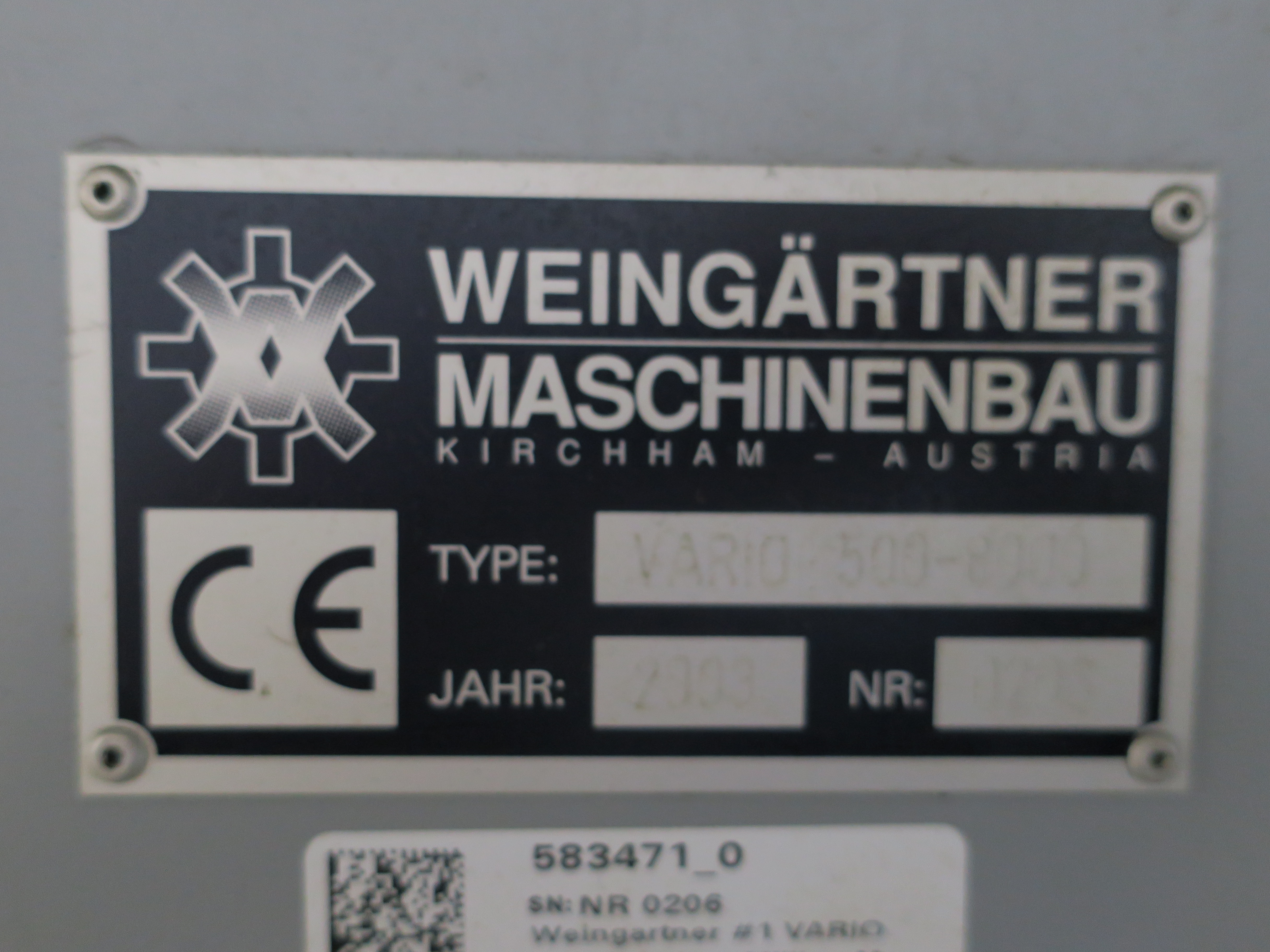

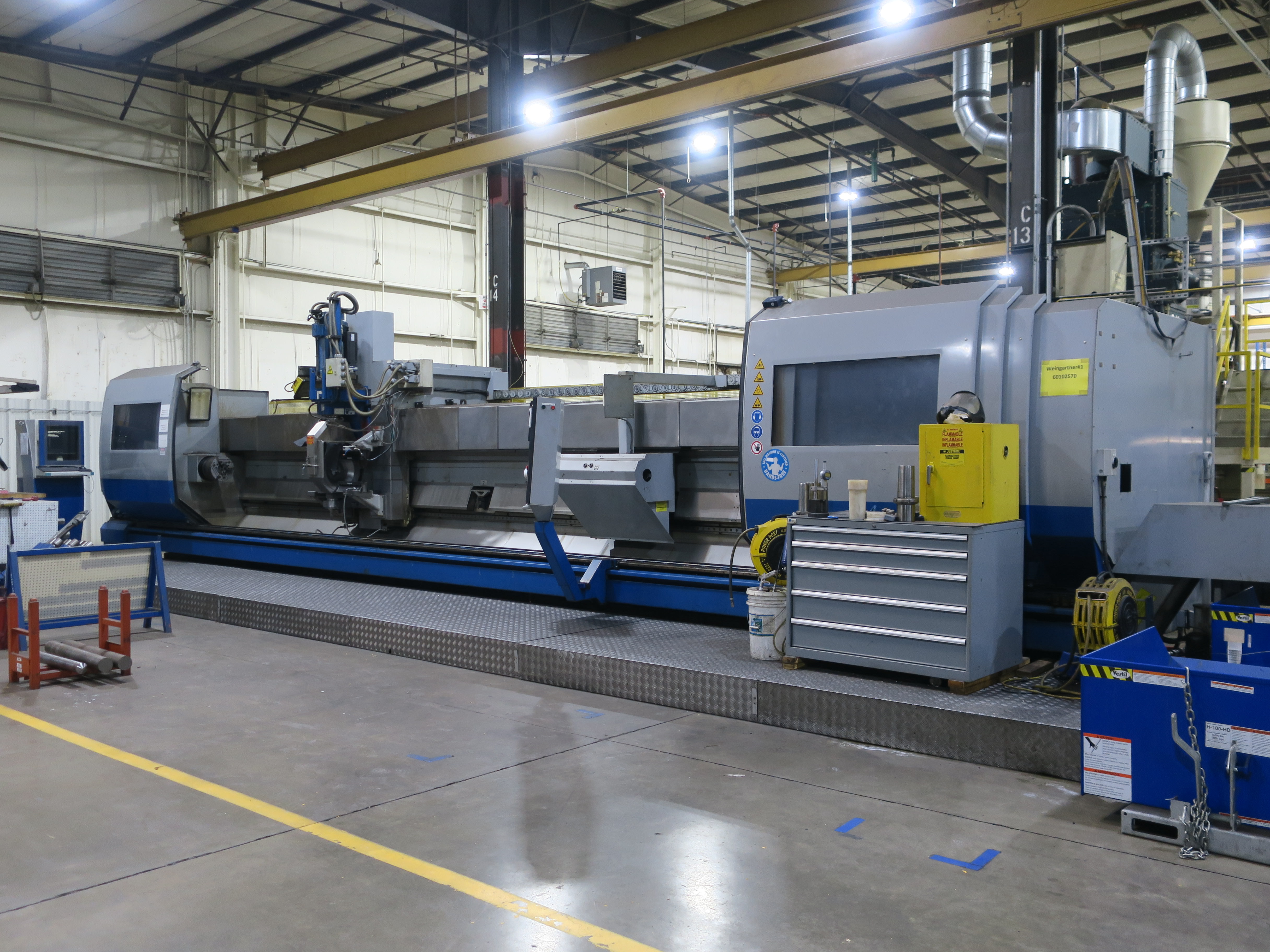

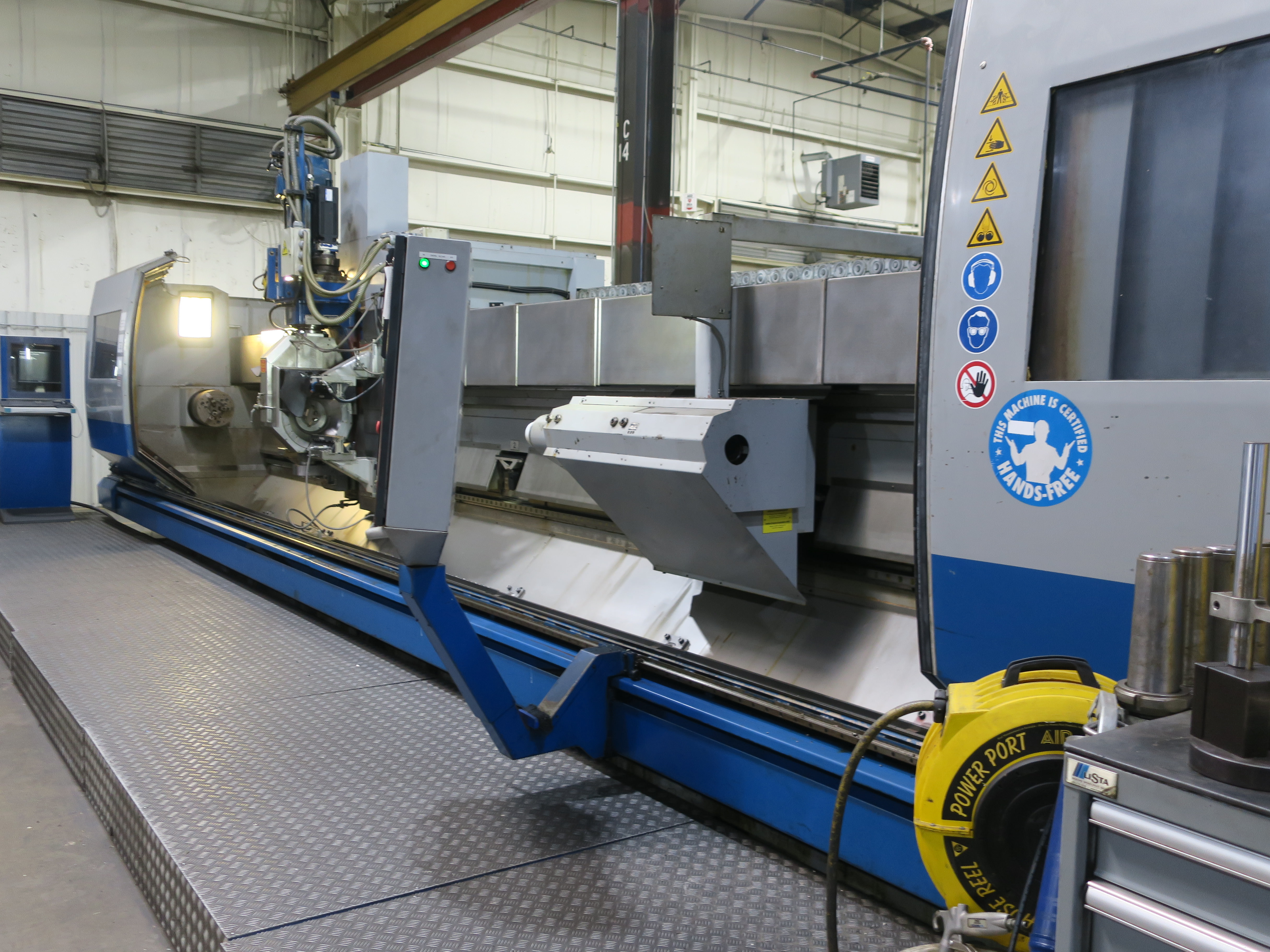

2003 WEINGÄRTNER VARIO 500/8000 CNC Rotor and Stator-Core Peeling / Profile Milling Center

Heavy-duty, special-purpose CNC machine engineered for the production of long, precision-profiled components, including single- and multi-lobe mud-motor rotors, stator cores, progressing-cavity pump components, worms, screws, and related helical or eccentric profiles.

The VARIO system combines dedicated profile peeling and profile milling operations in one machine, allowing manufacturers to rough-machine and finish complex rotor or stator geometries without transferring the workpiece between separate machines. This configuration is particularly suited for oilfield, drilling, pump, and power-section manufacturing applications.

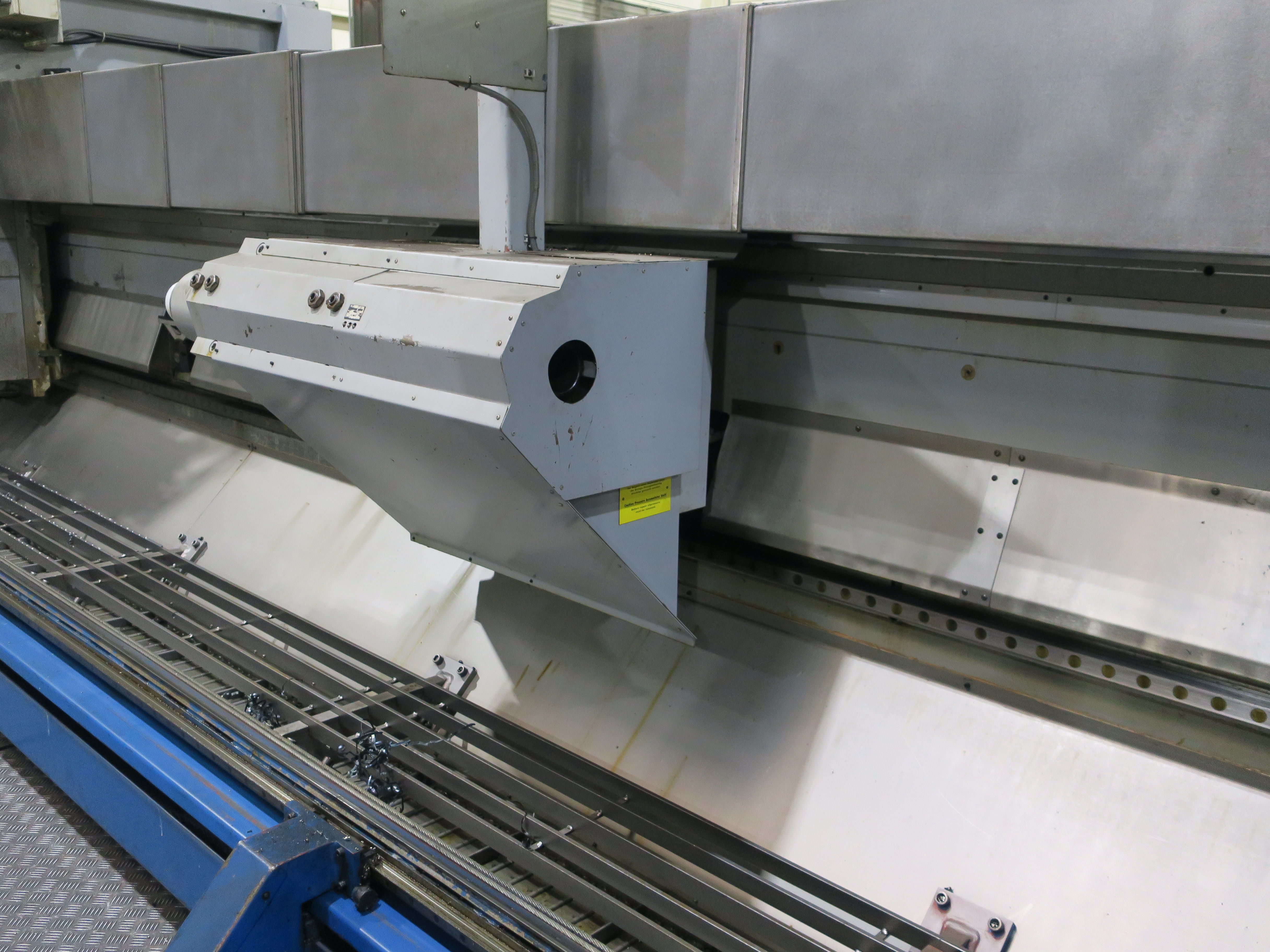

The machine accommodates workpieces up to approximately 8,000 mm / 315 inches long, with a maximum published peeling diameter of approximately 130 mm / 5.12 inches and maximum milling diameter of approximately 170 mm / 6.70 inches. It is equipped with a WEINGÄRTNER profile peeling head, profile milling head, programmable workpiece rotation, long-bed workpiece support system, and tooling for producing mud-motor rotor and stator-core profiles.

Equipped with:

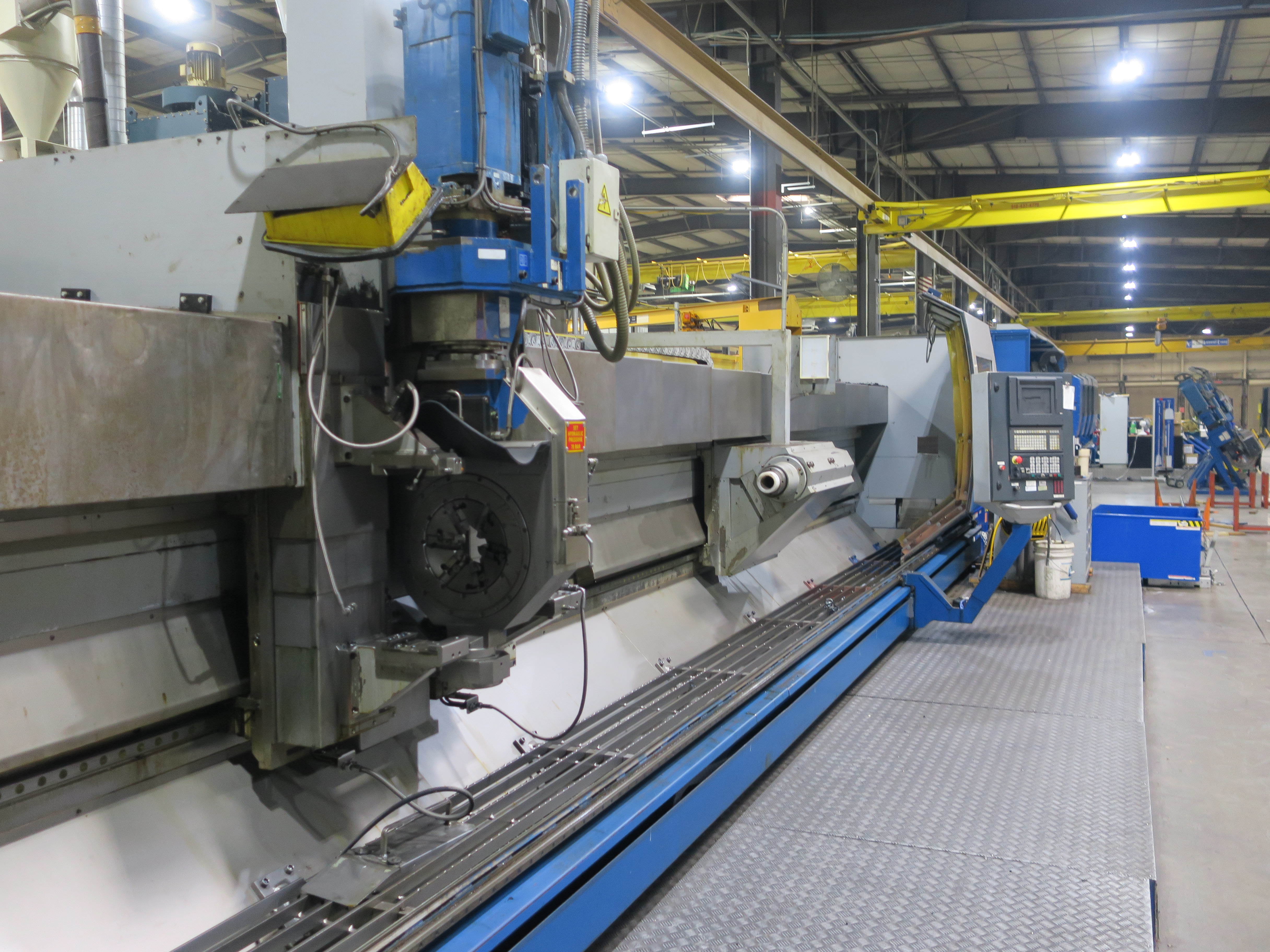

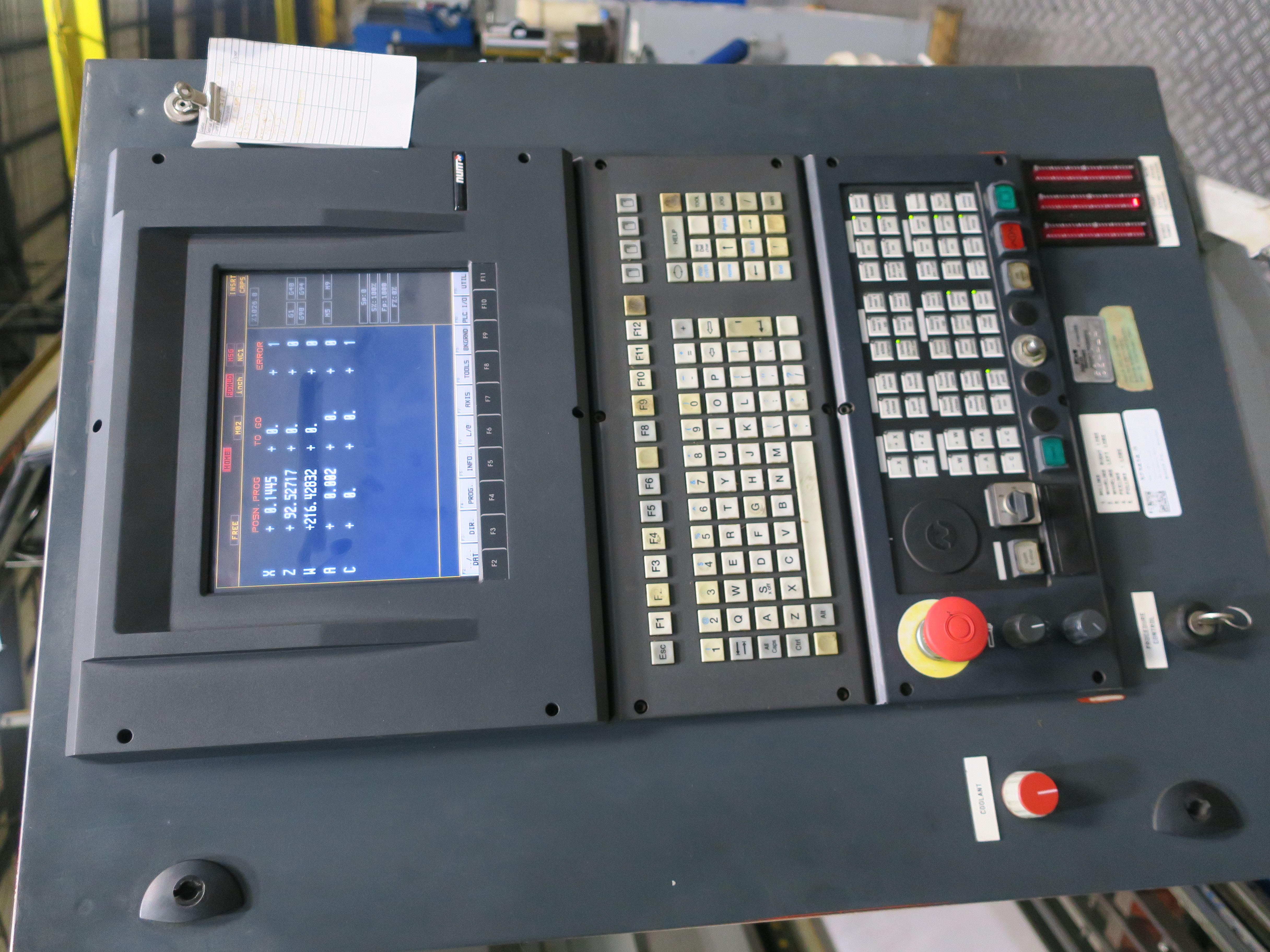

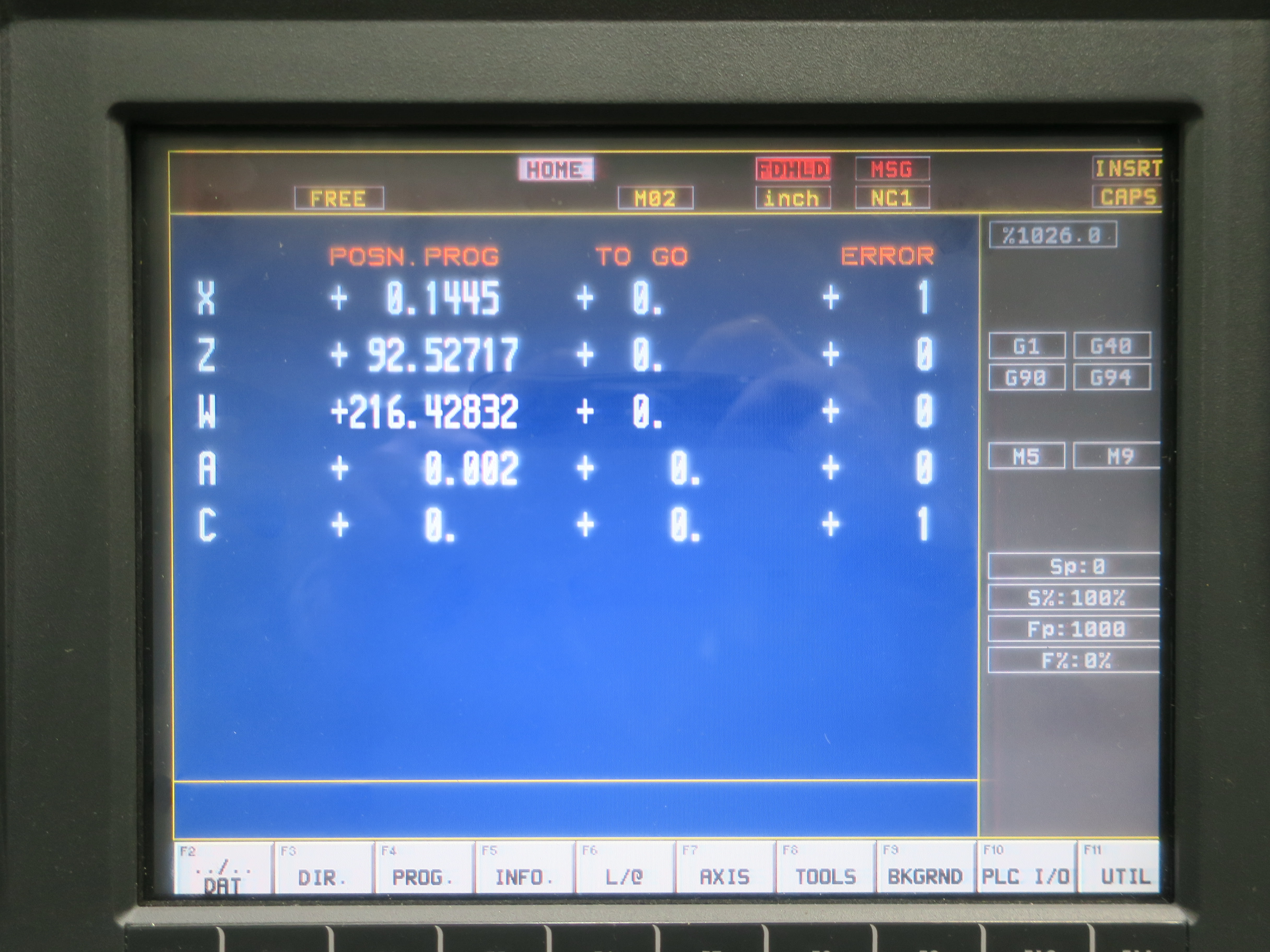

• NUM 1020 CNC control with operator HMI
• Separate DNC computer stand and processor

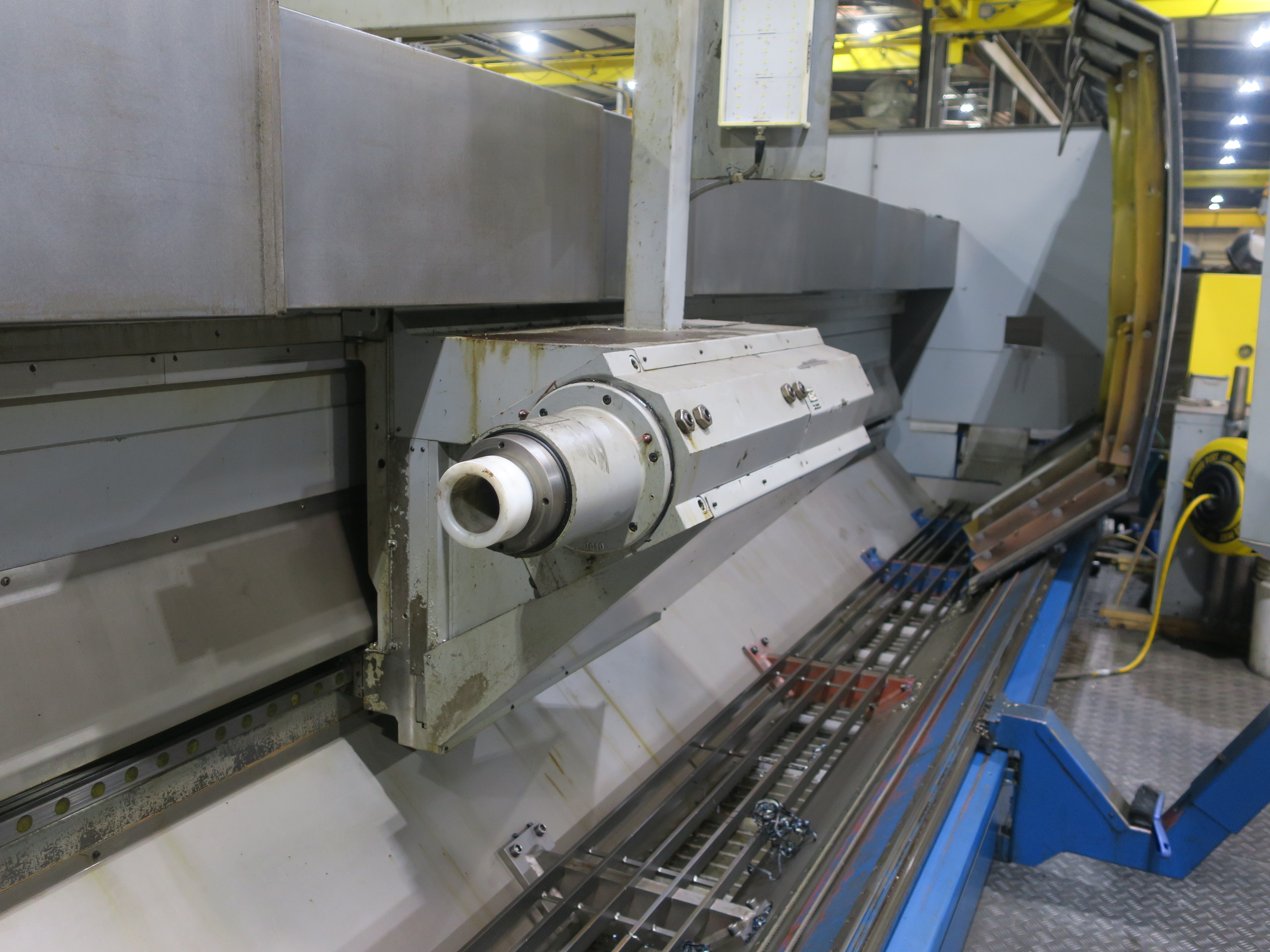

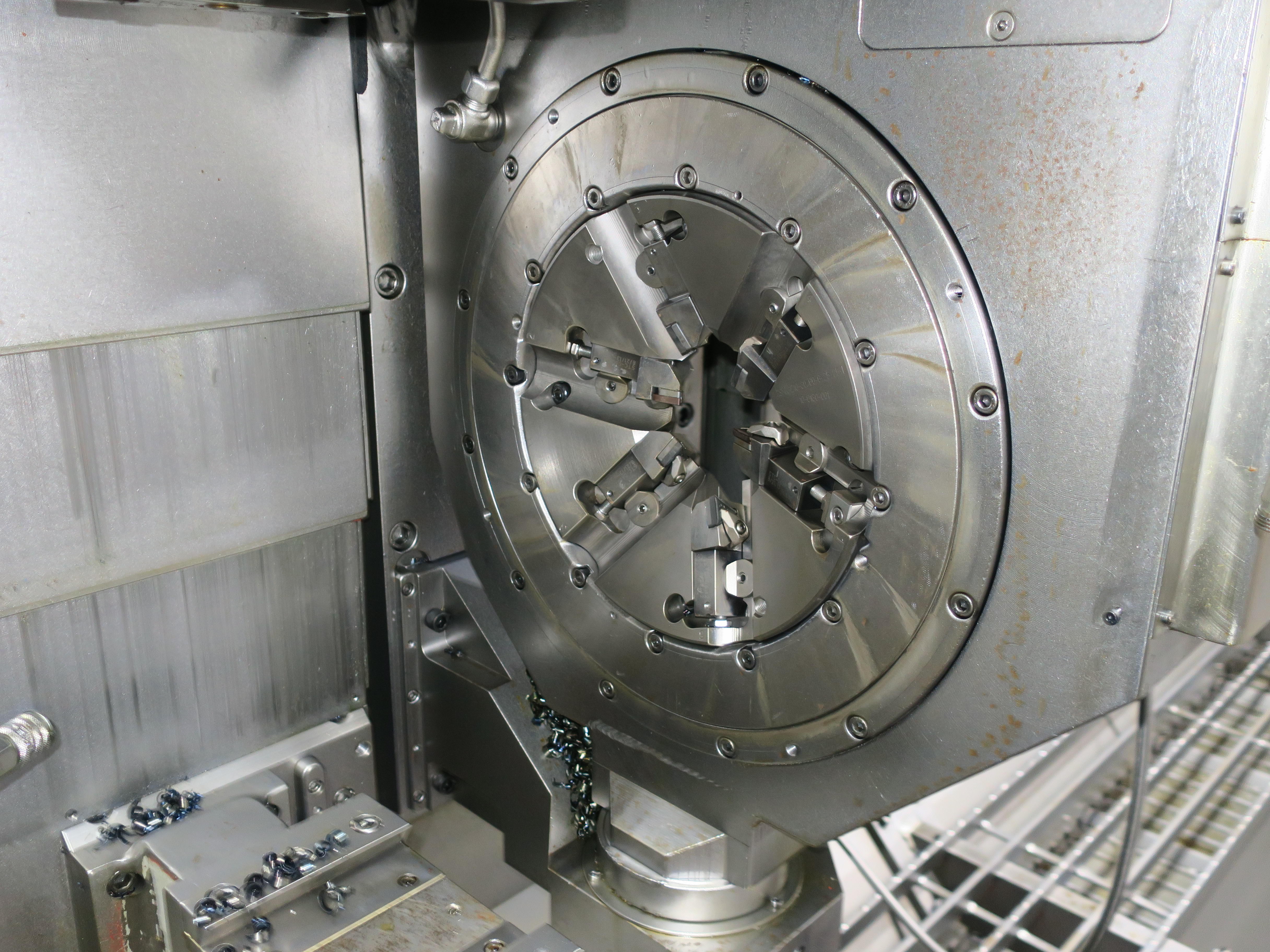

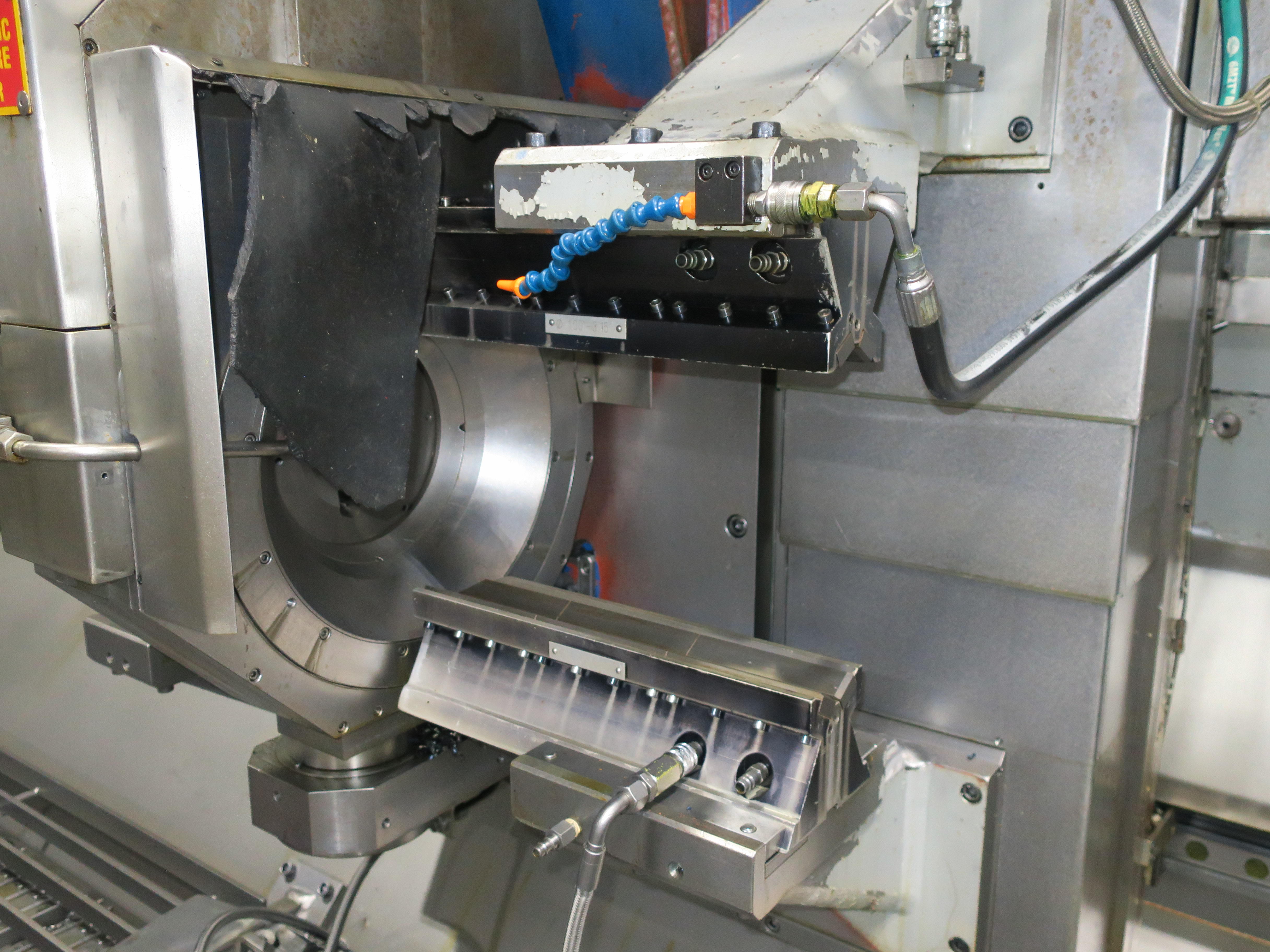

• WEINGÄRTNER profile peeling head

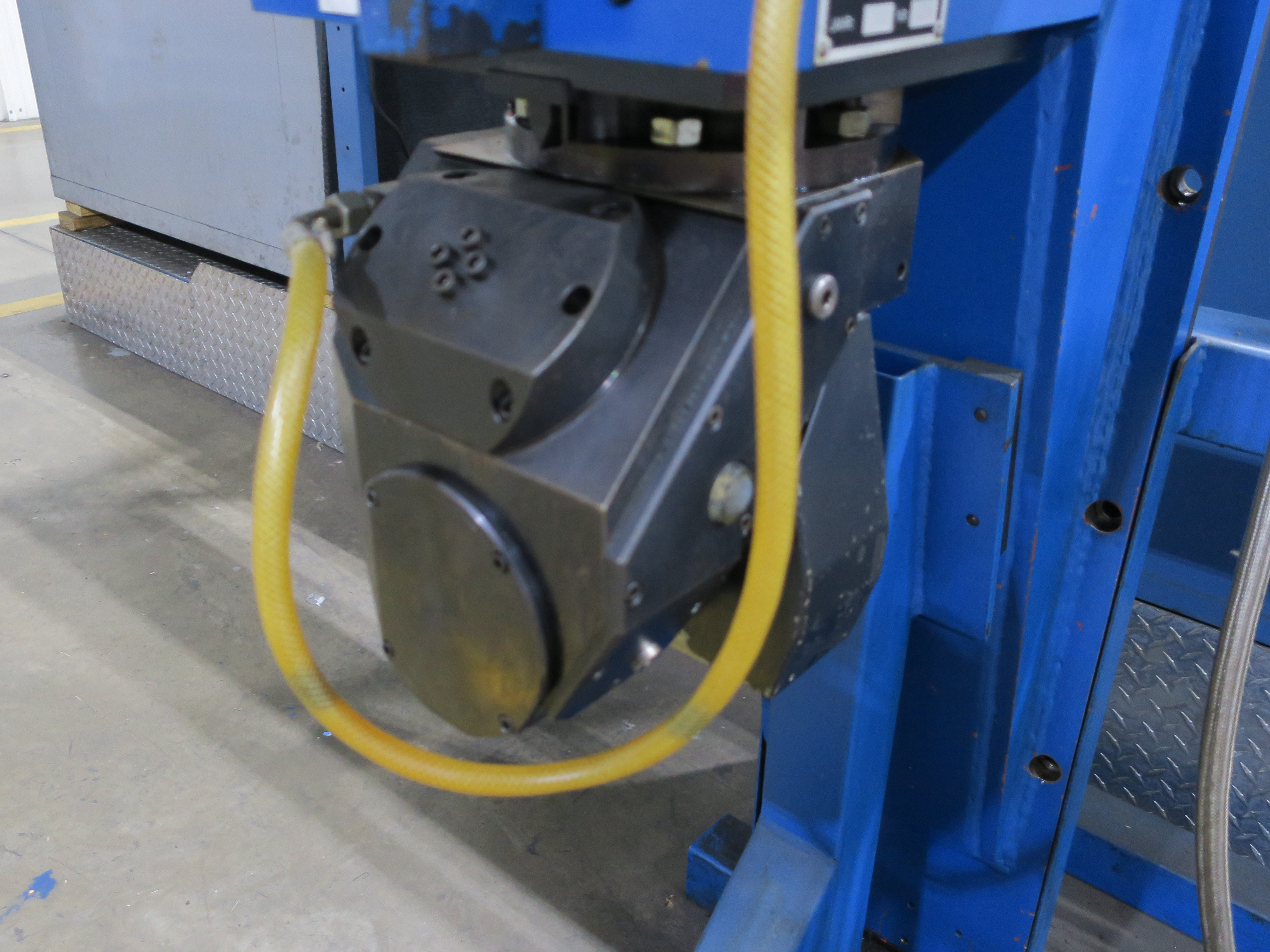

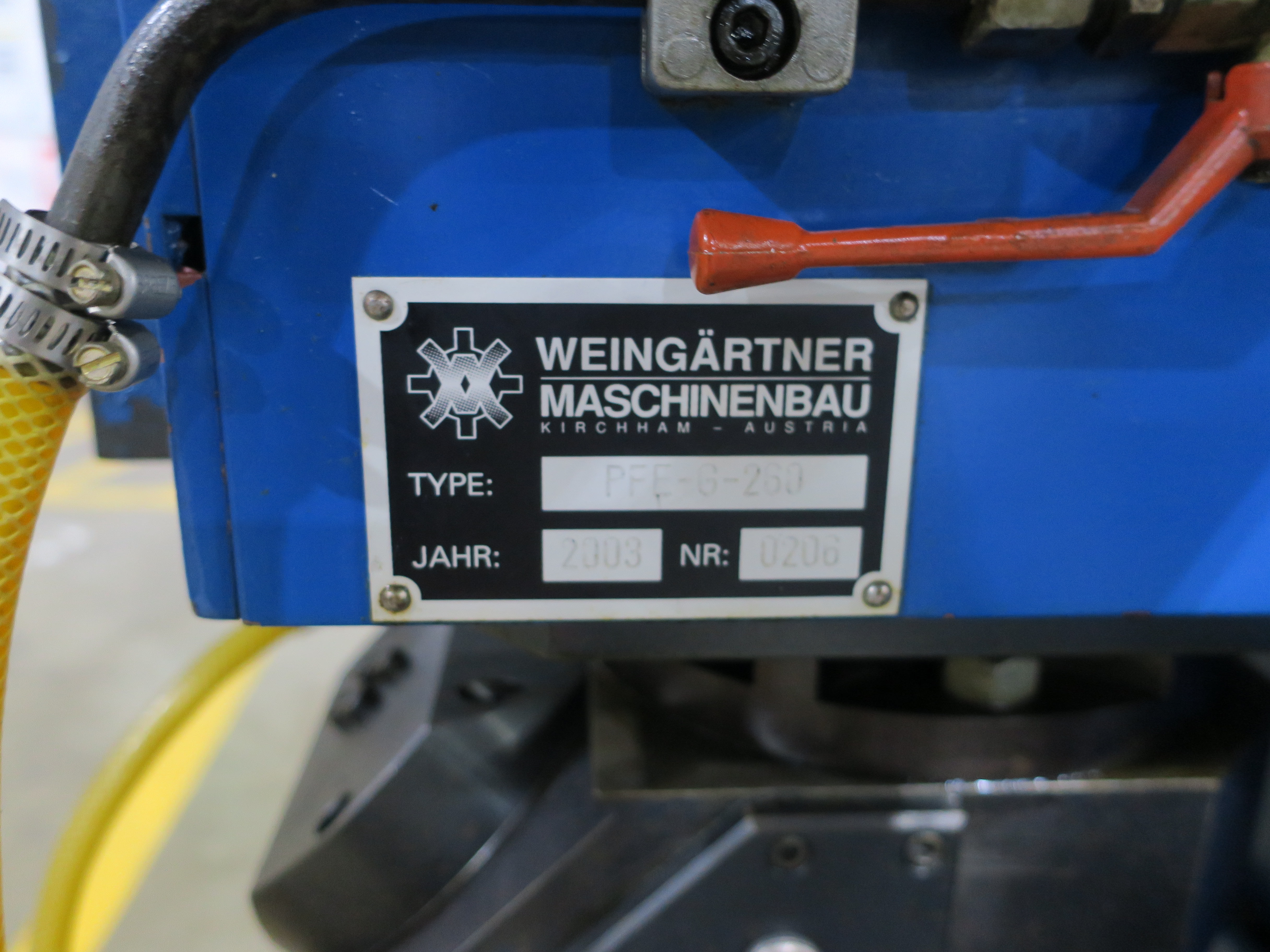

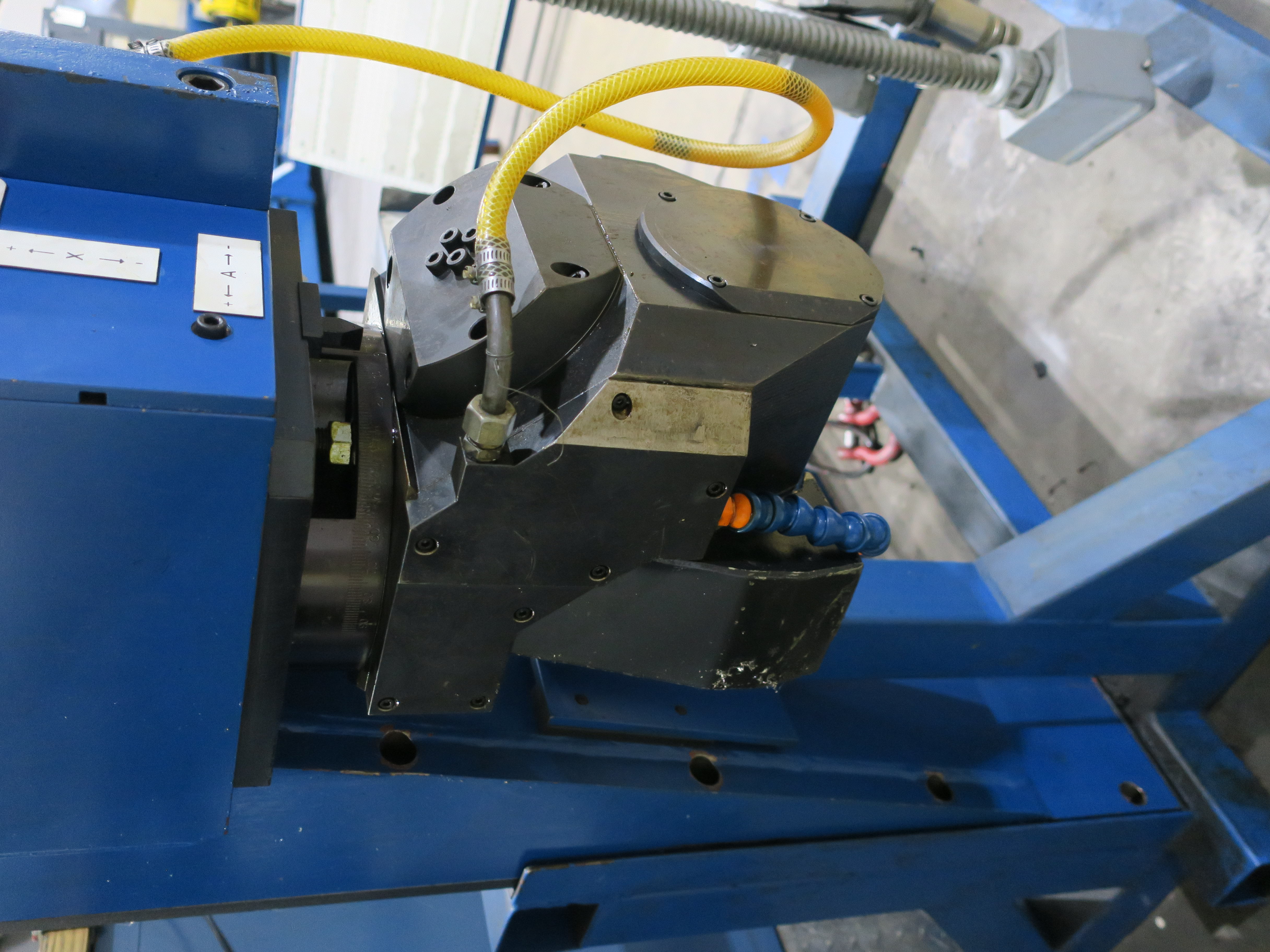

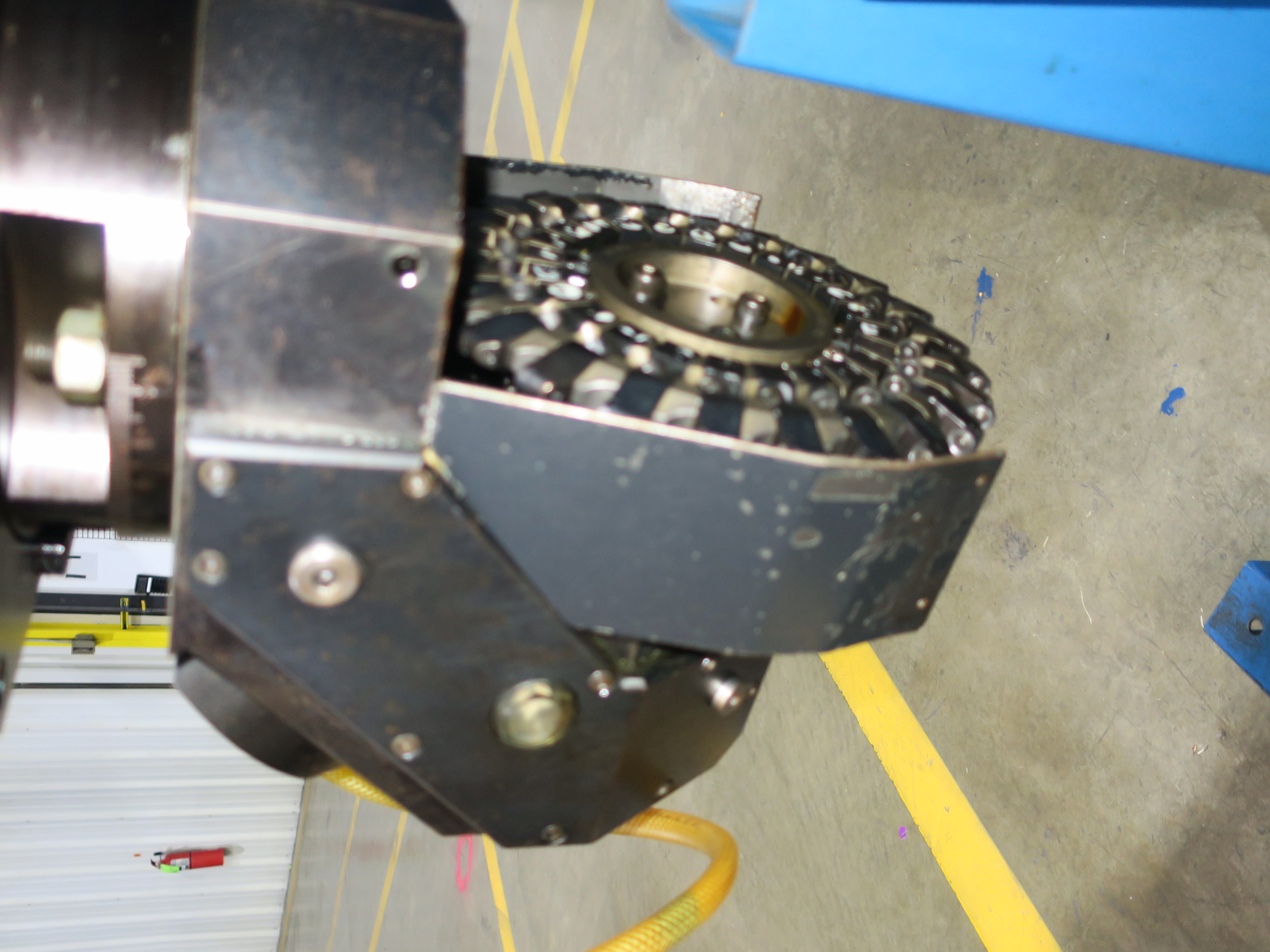

• WEINGÄRTNER PFE-G-260 profile milling head
• CNC-controlled workpiece rotation and synchronized longitudinal feed
• Eight-meter machining capacity
• Pull-through workpiece capability

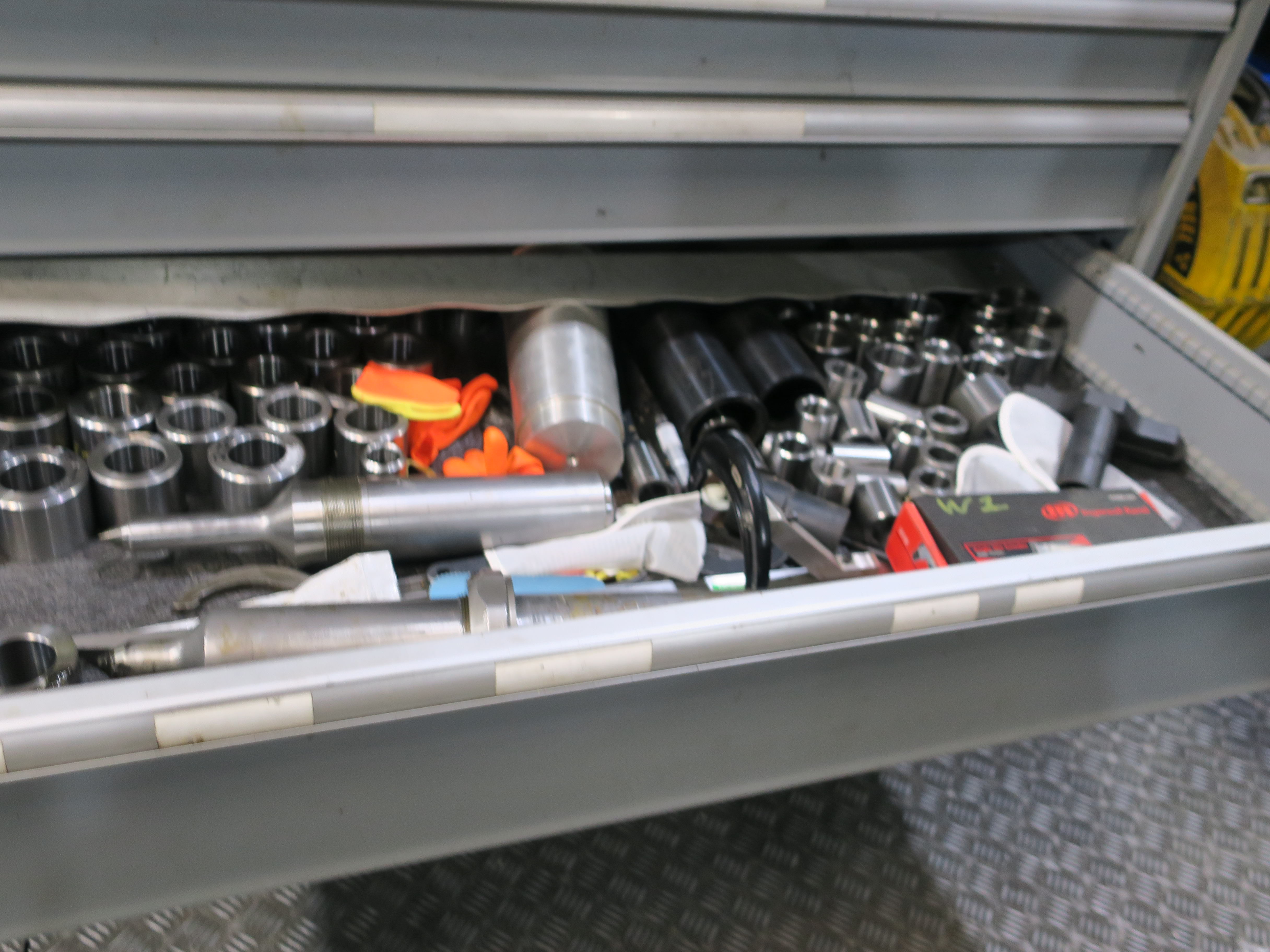

• Long-workpiece supports and guides

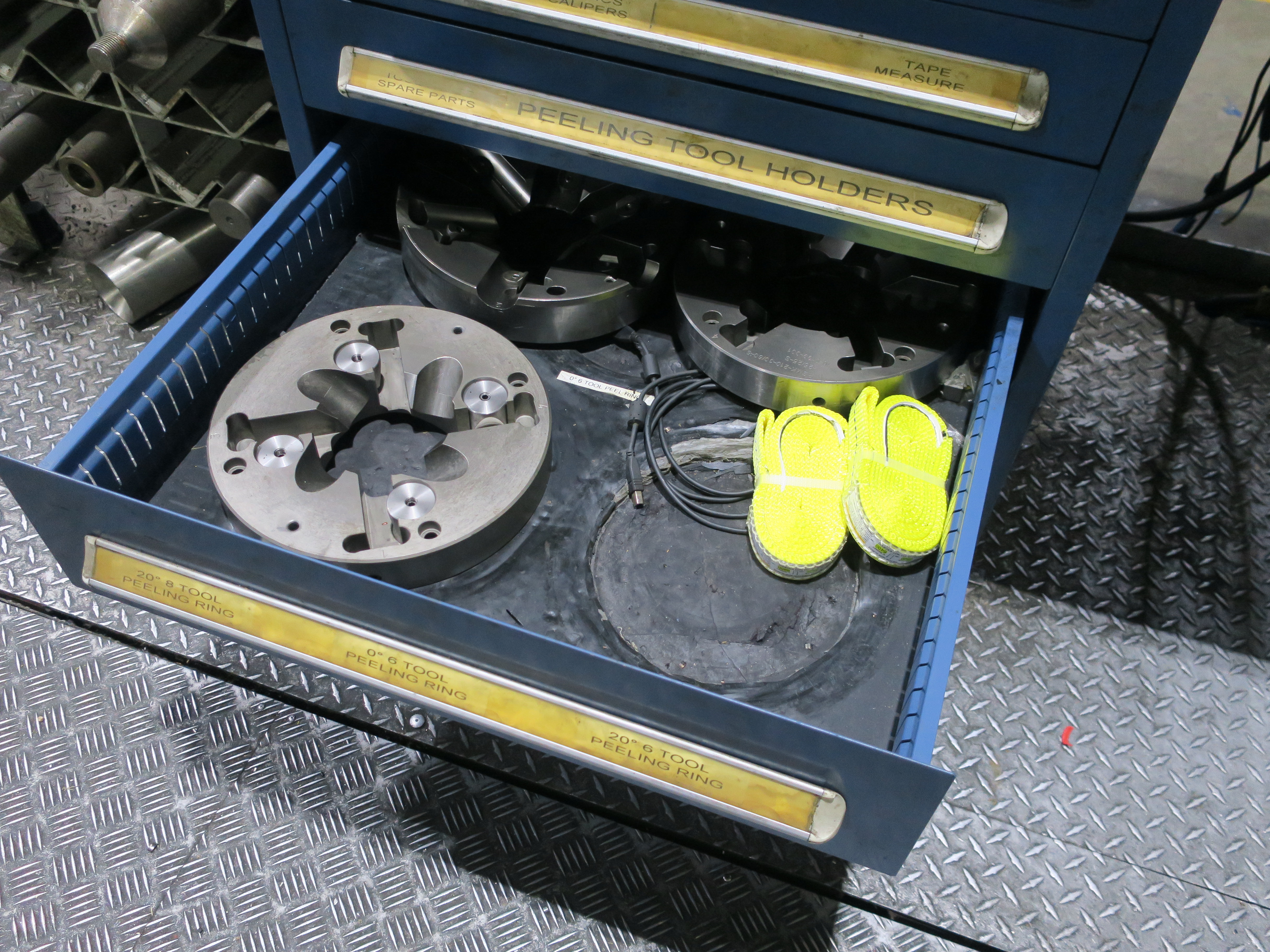

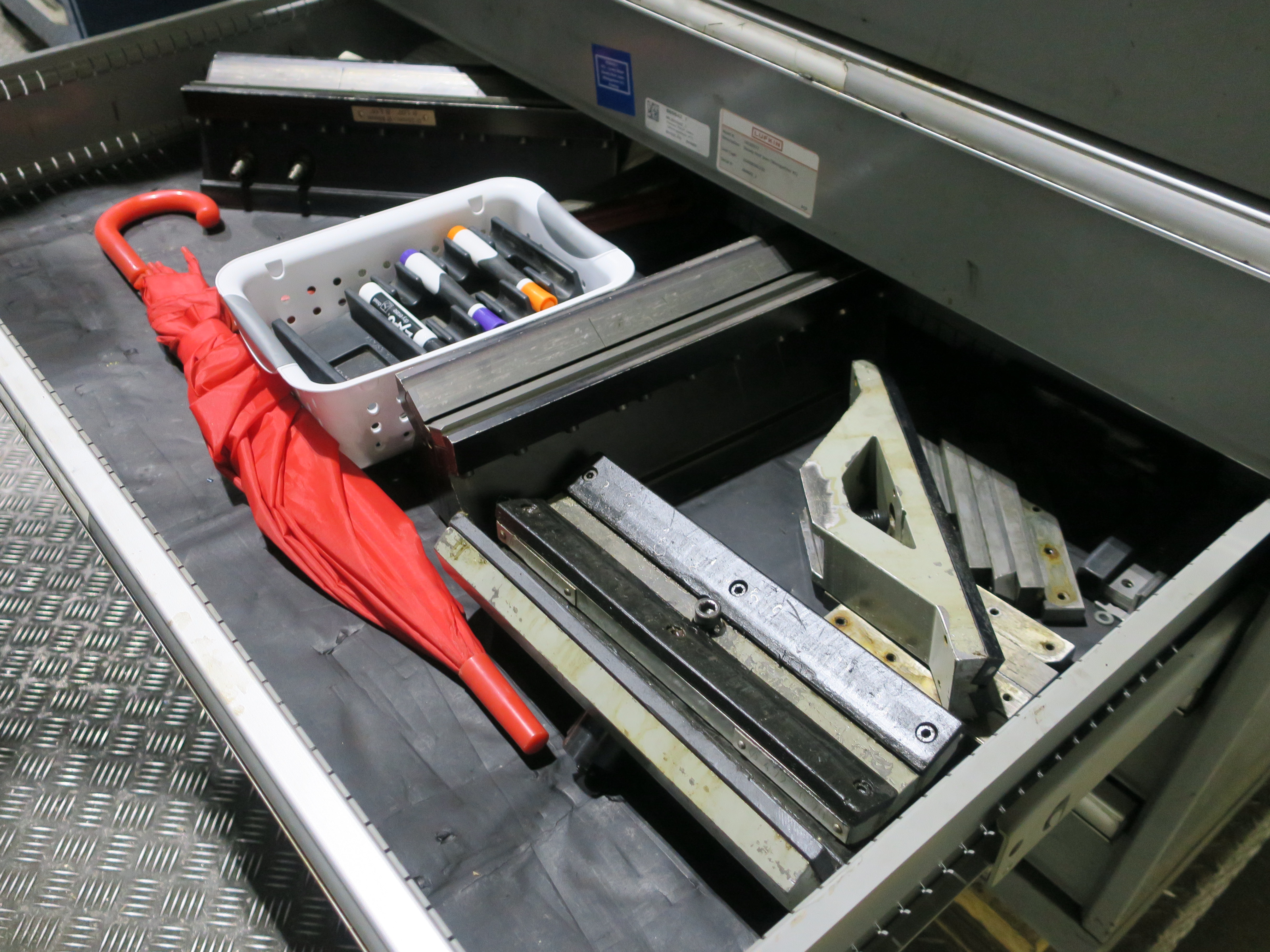

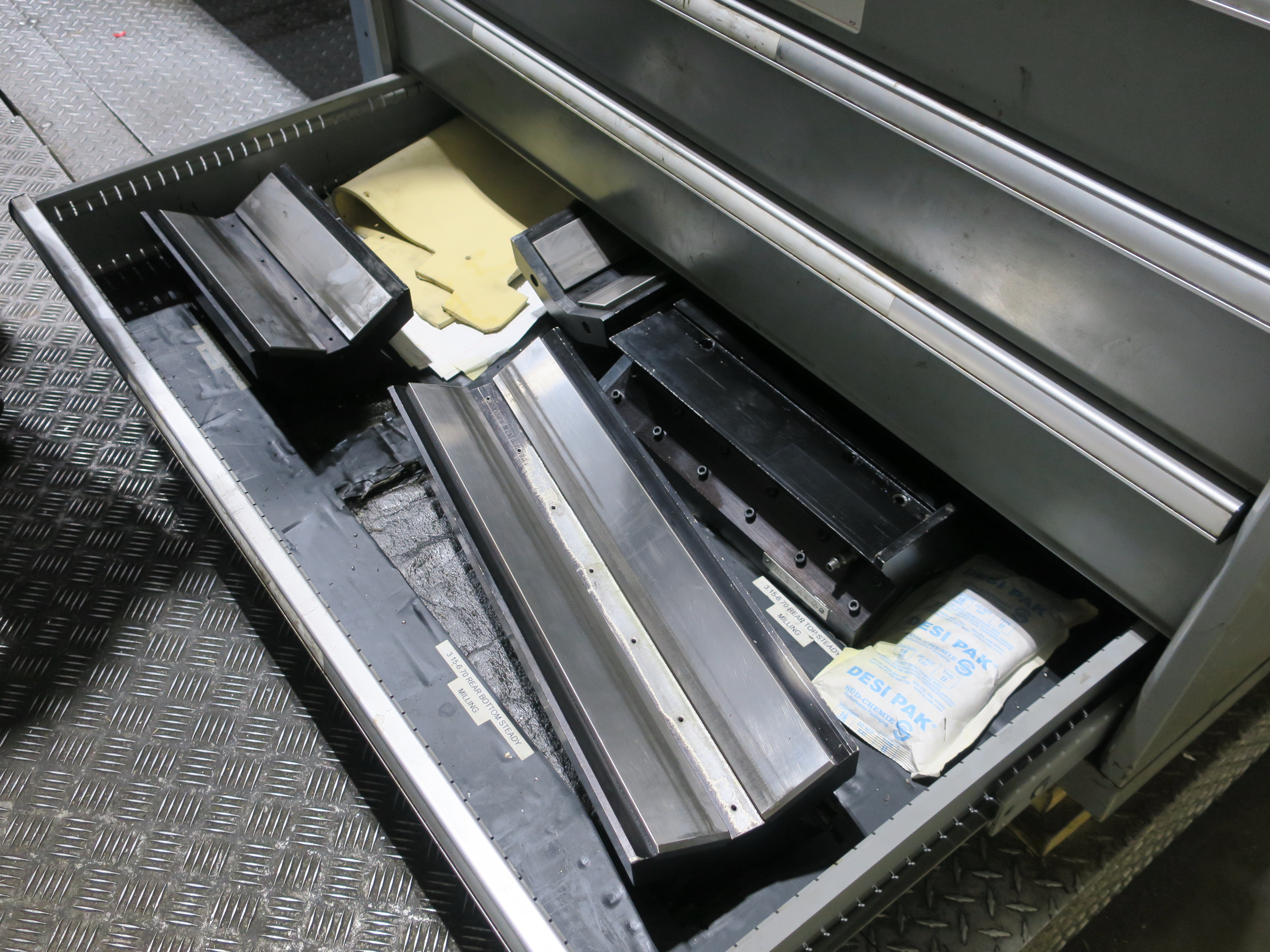

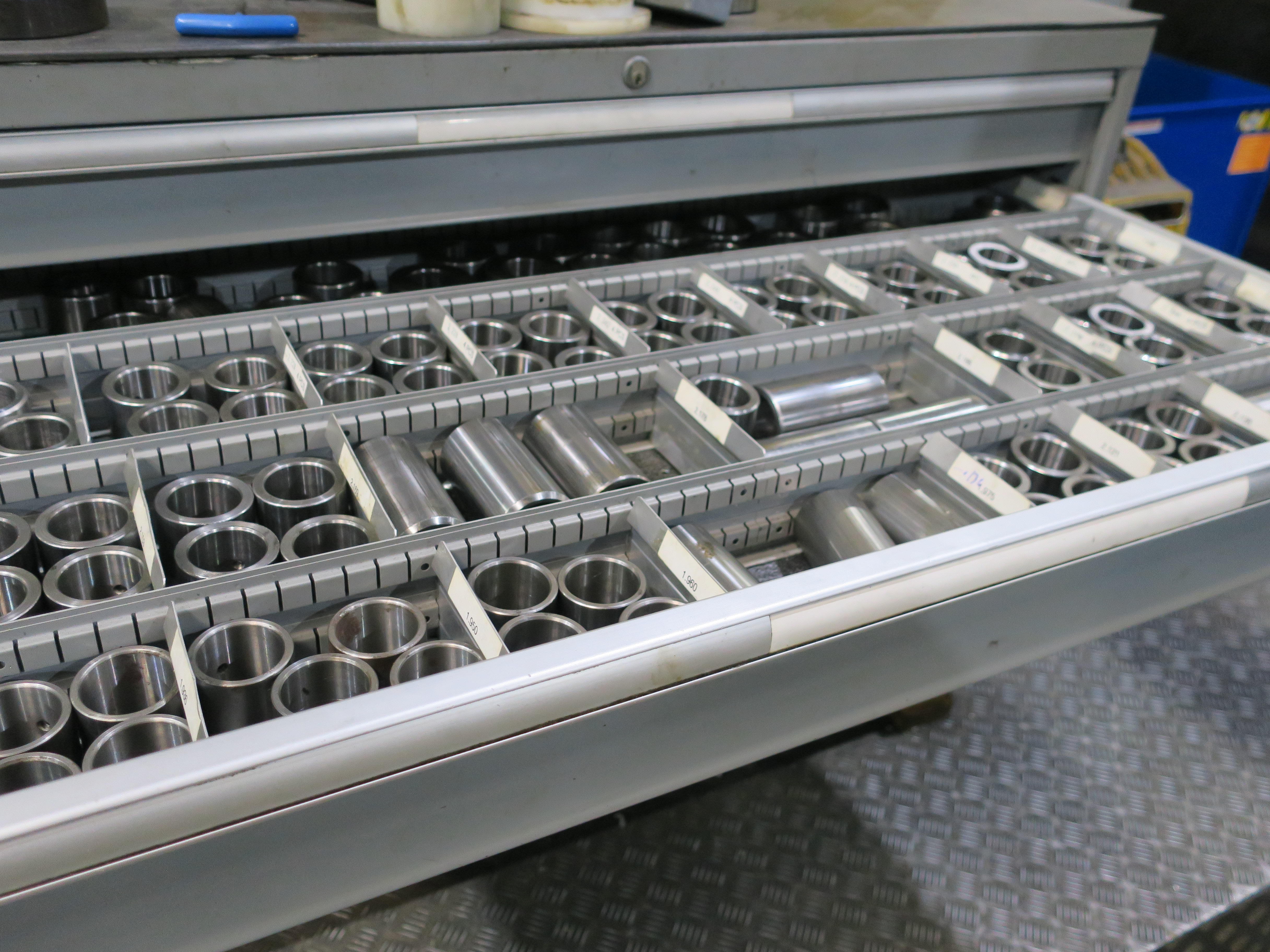

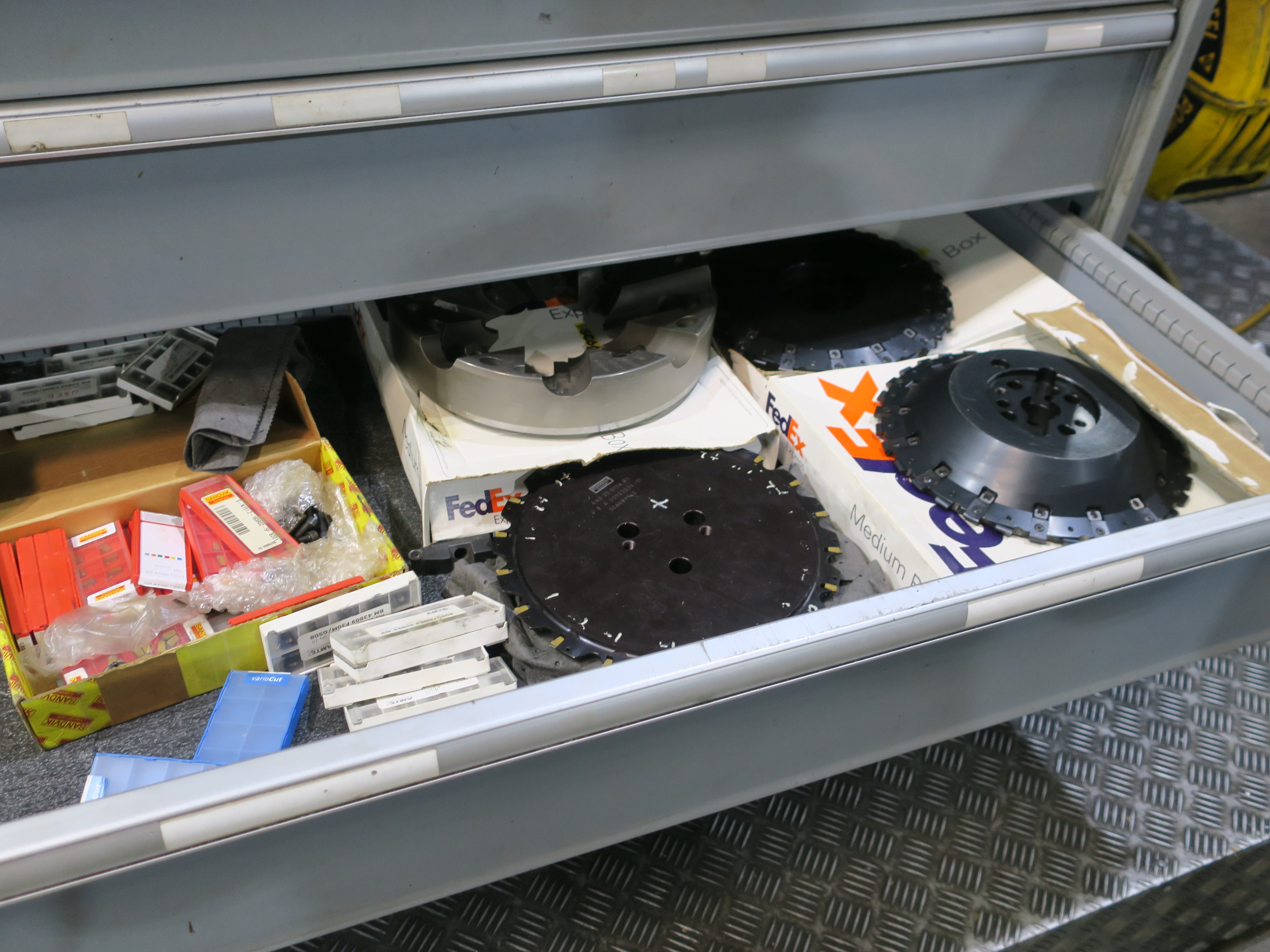

• Assortment of peeling rings and cutter heads

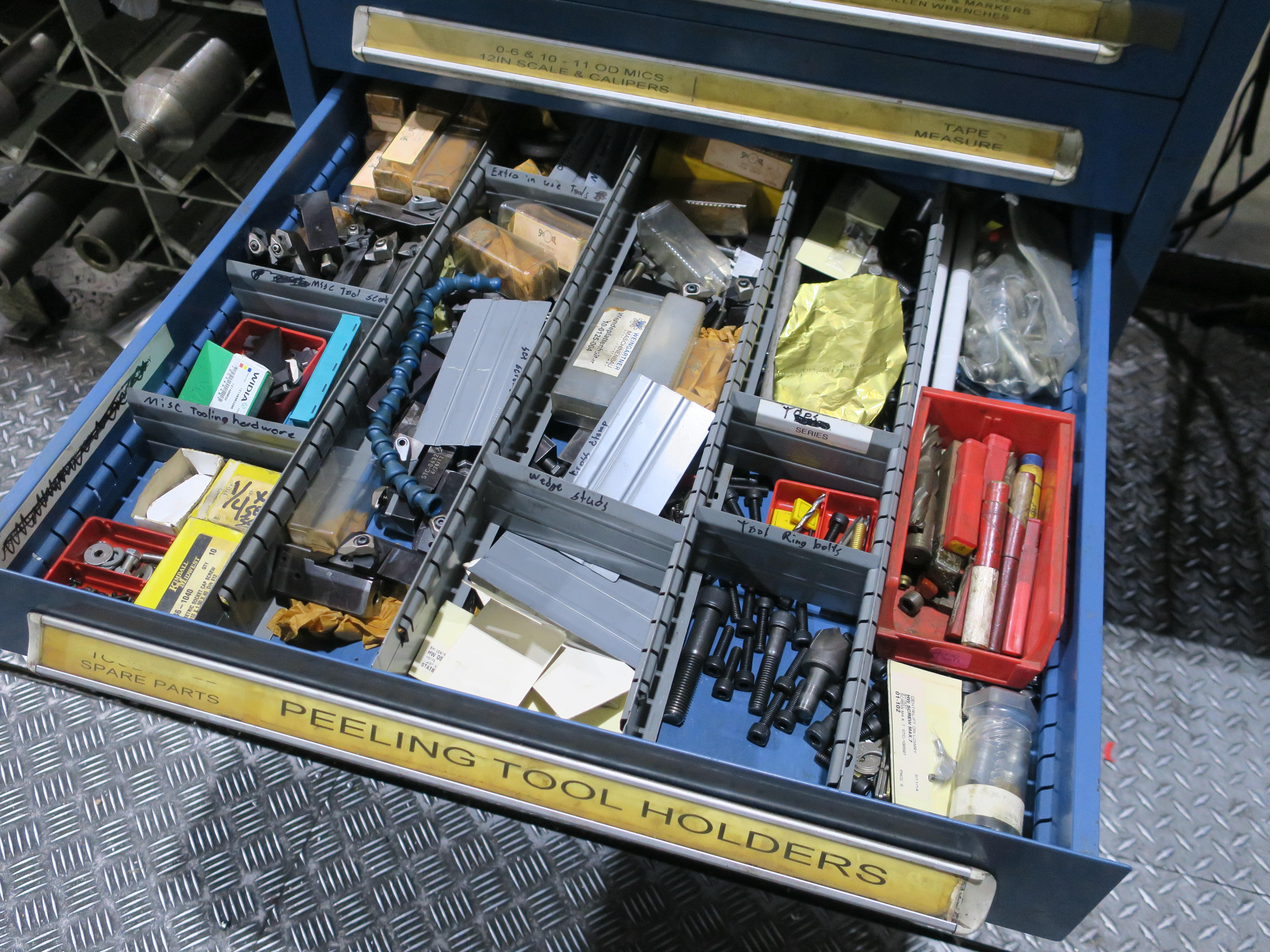

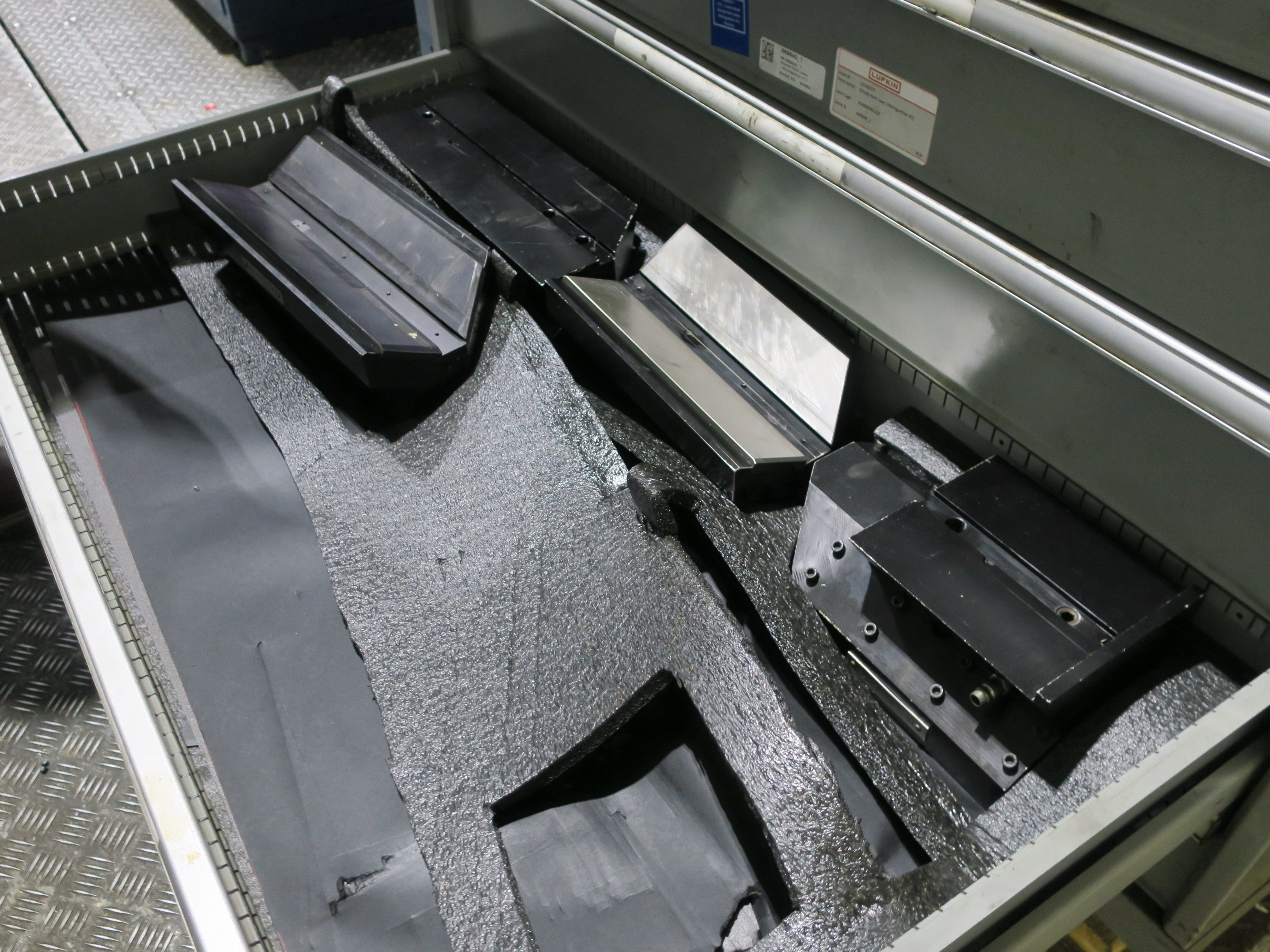

• Indexable peeling tool holders

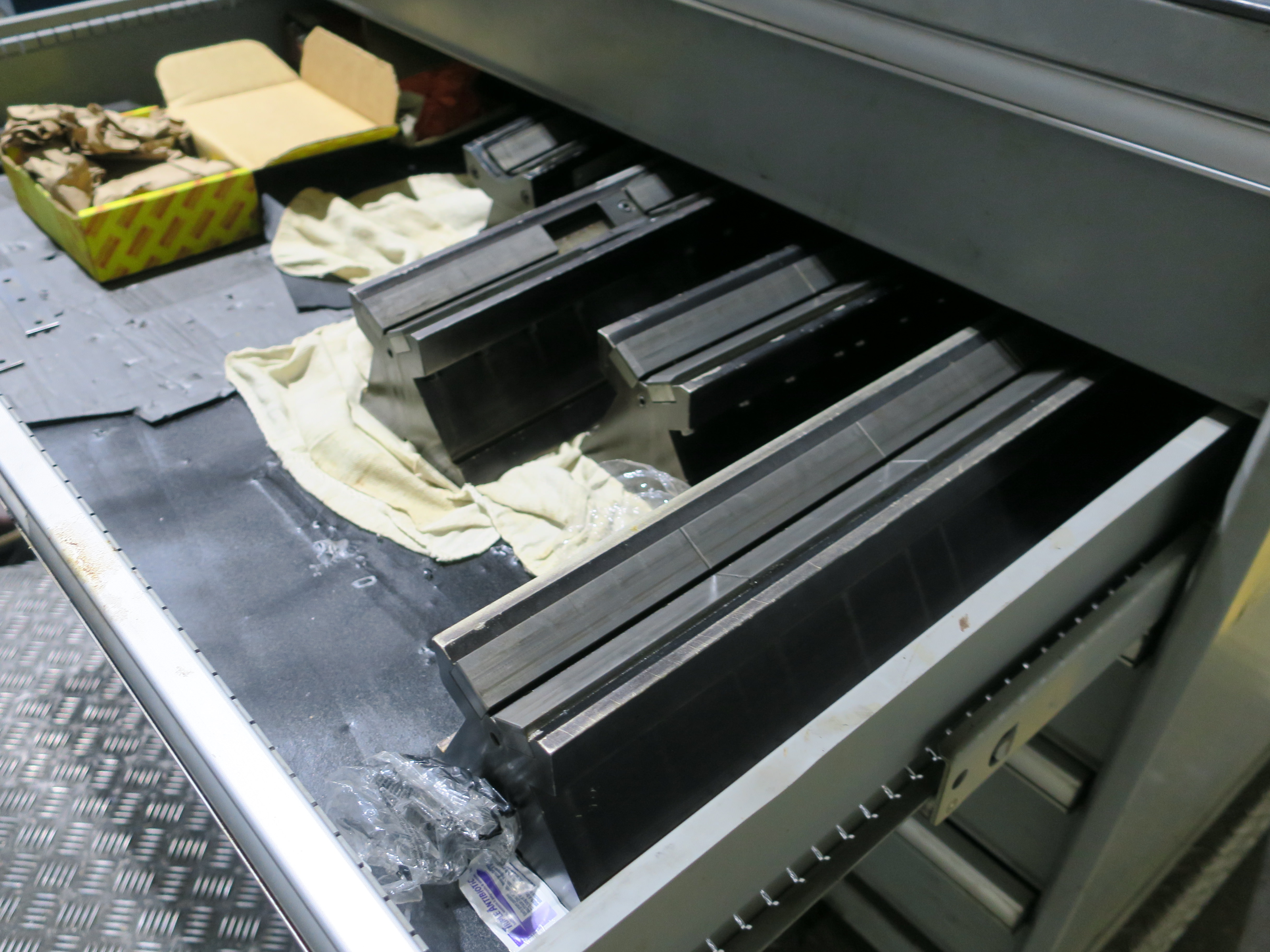

• Indexable profile-milling cutters and inserts
• Tooling and guides configured for mud-motor rotors and stator cores

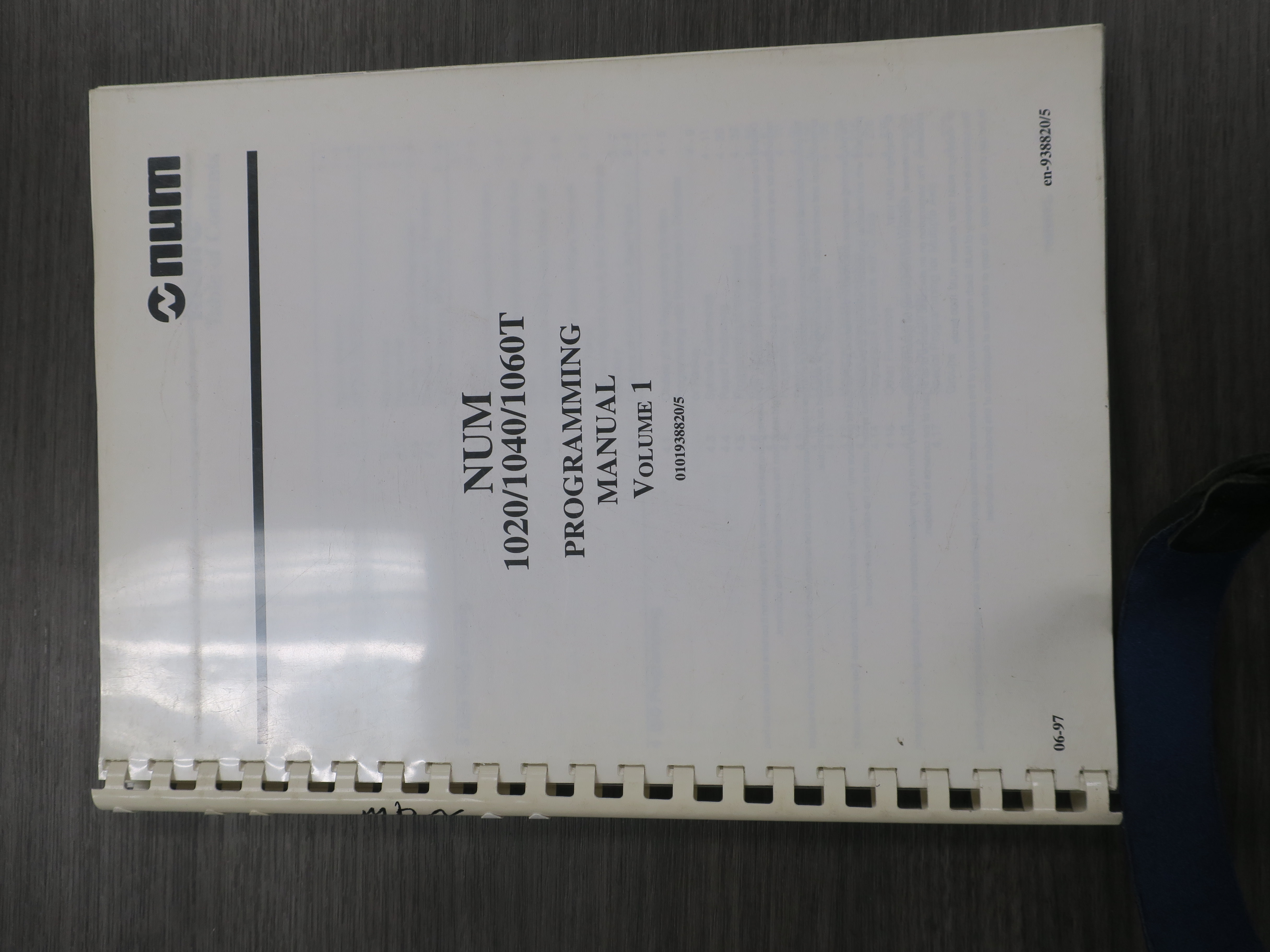

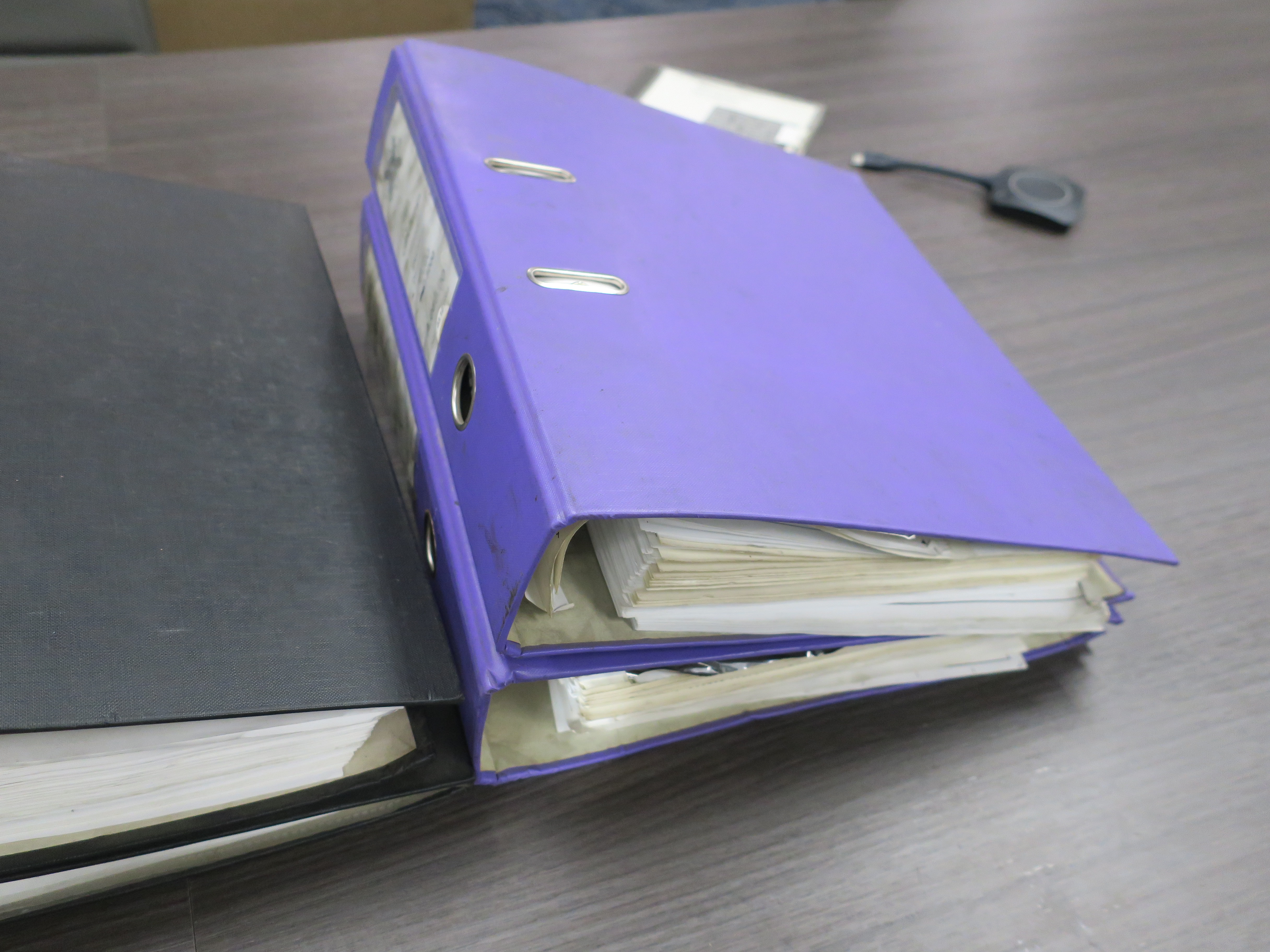

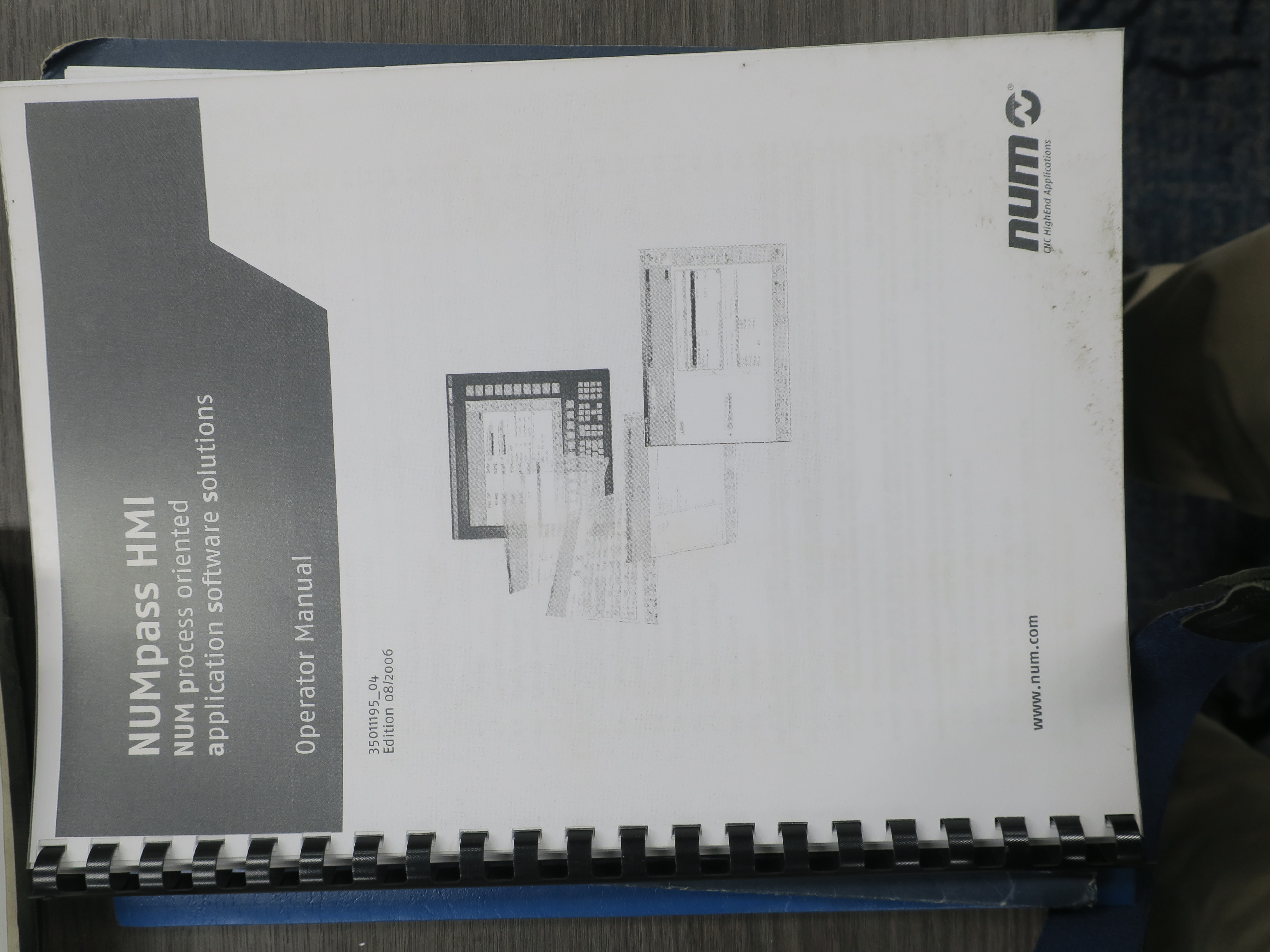

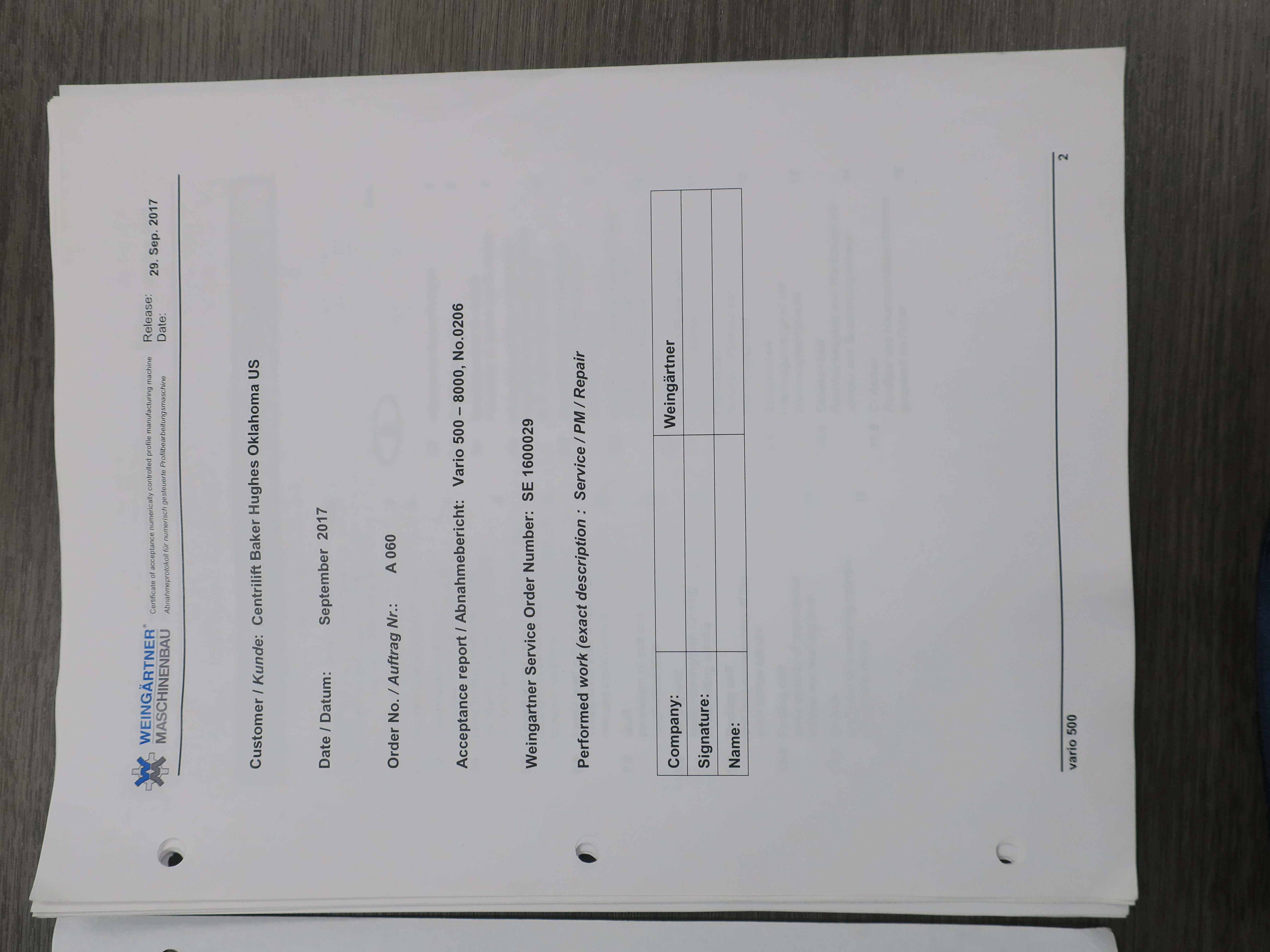

• Mechanical, electrical, programming and operating documentation

Nominal capacities:

• Maximum machining length: 8,000 mm / 314.96 inches
• Maximum peeling diameter: 130 mm / 5.12 inches
• Maximum milling diameter: 170 mm / 6.70 inches
• Profile milling cutter diameter: up to approximately 260 mm
• Milling-head swivel range: approximately ±90 degrees
